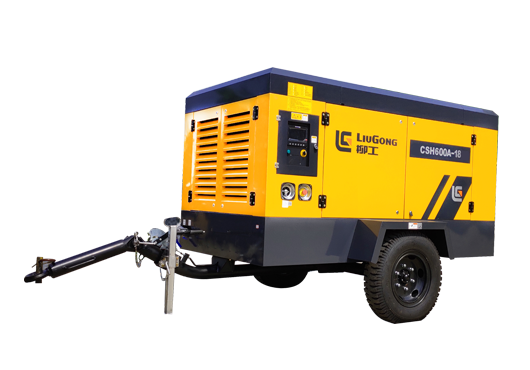

CSH600A Air Compressor
The LiuGong CSH600A air compressors delivers free air delivery of 17 m³/min; pressure of 18 bar; dual transformation of Single. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
CSH600A Air Compressors
Free air delivery
17 m³/min
Pressure
18 bar
Dual transformation
Single
Key Features
- LiuGong 's E-Kon control system is easy to understand and operate. The innovative system can also be accessed and operated remotely. Stop and Start through one key,compressor controls and parameters can all be remotely accessible for higher productivity and lower downtime.
- For extra protection it use a double air filter to extend engine and air end 's working life.
- For enhanced reliability, the holistic design approach to the fuel injection pump and air end eliminates any potential jamming while working at high speed.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Free air delivery | 17 m³/min | 17 m³/min |
| Pressure | 18 bar | 18 bar |
| Compressor oil | 35 L | 2135.83 in³ |
| Element | LGIR | LGIR |
| Dual transformation | Single | Single |
| Engine supplier | Yuchai | Yuchai |
| Engine type | YC6J210-T300 | YC6J210-T300 |
| Power | 154 kW | 209.38 ps |
| Working and Idling speed | 2000/1400 rpm | 2000/1400 rpm |
| Number of cylinders | 6 | 6 |
| Displacement | 6.494 L | 396.29 in³ |
| Emission levels | StageIII | StageIII |
| Fuel capacity | 240 L | 14645.70 in³ |
| Weight | 2.4 t | 2.4 t |
| Outlet×quantity | G1½×1 & G¾×1 | G1½×1 & G¾×1 |
| Tire size×quantity | Two Tires | Two Tires |
| Overall dimensions | 4100x2000x2050 mm | NaN ft. |
| Noise | 82±3 dB(A) | 82±3 dB(A) |
Applications
The CSH600A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
