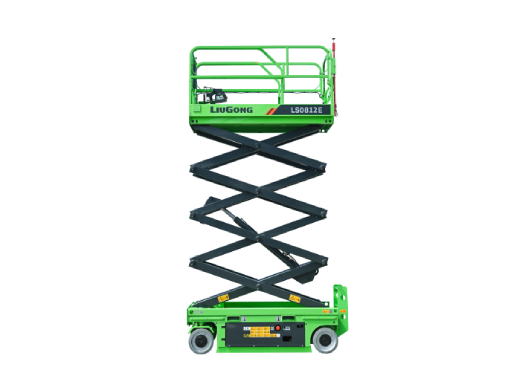

LS0812E Aerial Work Platform

Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life. Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport. Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

Specifications Key Features Applications Get a Quote

LS0812E Aerial Work Platforms

Max.Working Height

10 m

Rated Load on Working Platform

450 kg

Overall Length/Width

2.49*1.19 m

Key Features

Security And Intelligence
Intelligent control system, real-time monitoring of equipment status, Multiple security protection to ensure personnel safety, Intelligent charging system to extend battery life.
Easy To Control
Drivable at full height to improve working effificiency, The proportion drops and the descent moves smoothly, Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
Self-lubricating sleeve, Swing-out tray on both sides, easy maintenance, Fault code indication to facilitate troubleshooting.

Specifications

Parameter	Metric	Imperial / U.S.
Max.Work Height	10 m	32.81 ft.
Max.Platform Height	8 m	26.25 ft.
Min.Platform Height	1.22 m	4.00 ft.
Platform Size(L×W)	2.28*1.15 m	7.47*3.77 ft.
Overall Length	2.49 m	8.17 ft.
Overall Width	1.19 m	3.90 ft.
Overall Height (Rails Down)	1.8 m	5.91 ft.
Max.Gradeability	25 %	25 %
Lift Motor	24 V / 3.3 kW	24 V / 3.3 kW
Rated Load on Working Platform	450 kg	992.08 lbs
Battery	24 V / 200 Ah	24 V / 200 Ah
Charger	24 V / 30 A	24 V / 30 A
Total Weight	2540 kg	5599.74 lbs
