HYS60A Concrete Equipment

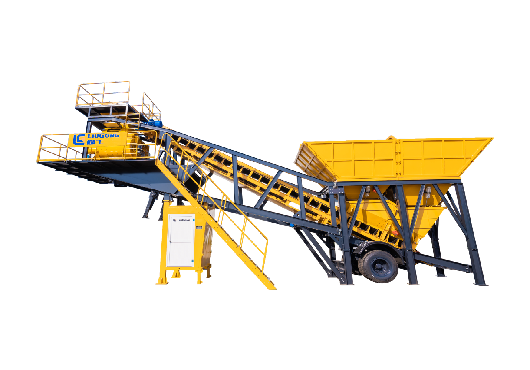

HYS35A
HYS60A Concrete Equipment
Theoretical Output
60 m³/h
Mixer
JS31000
Rated power
2 X 18.5 W
Key Features
- Excellent mixing performanceThe mixing machine adopts SICOMA mixer with Italian technology. High mixing performance, high quality, stable.
- Simple operation performanceThe whole machine adopts PLC or industrial computer control mode, and is equipped with manual and automatic operation conversion, simple operation and easy to master. Dynamic panel display, can clearly understand the running status of each component, with high measurement accuracy, strong anti-interference and management, report function is more powerful. The web version can realize data sharing, management automation and real-time monitoring.
- Modular overall designThe whole machine structure is modular and compact. The batching machine, the main mixing building and the powder tank are all independent structures. During the transition, disassembly and installation are quick, and the operation is convenient and fast. And has a variety of layout forms to adapt to the needs of different sites.
- Excellent energy saving and environmental protection performanceThe reverse blowing pulse type dust collector is used to control the dust produced by the mixer and the cement and fly ash measuring hopper in the working process, protect the environment from pollution, and balance the pressure inside and outside the scale, ensure the measuring accuracy of the scale, and make the emission meet the national requirements. Powder conveying using wind channel conveying technology, good sealing, low failure rate, compared with the conventional screw conveyor, a single station per hour energy saving 40Kw.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Theoretical Output | 60 m³/h | 60 m³/h |
| Cycle Period | 72 s | 72 s |
| Mixer | JS1000 | JS1000 |
| Mixer Capacity | 7500 L | 457678.08 in³ |
| Silos | 2×75 t (optional) | 2×75 t (optional) |
| Aggregate Hoppers | 2×12 m³ or 4×6 m³ | 2×12 m³ or 4×6 m³ |
| Concrete Discharge Height | 3.8 m | 12.47 ft. |
| Total Power Consumption | 100 kW | 135.96 ps |
| Aggregate Measuring Accuracy | ± 2% | ± 2% |
| Cement Measuring Accuracy | ± 1% | ± 1% |
| Fly-Ash Measuring Accuracy | ± 1% | ± 1% |
| Water Measuring Accuracy | ± 1% | ± 1% |
| Additive Measuring Accuracy | ± 1% | ± 1% |
Applications
The HYS60A is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
