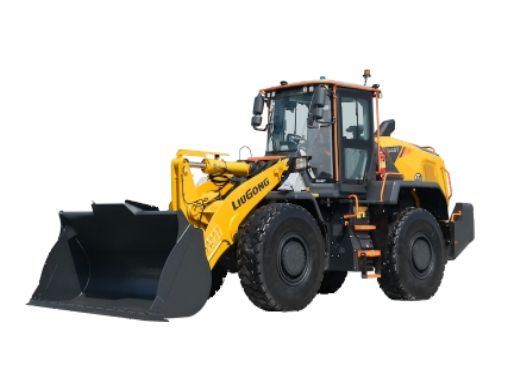

848T Wheel Loader
848T (EU Stage V)
848T Wheel Loaders
Operating Weights
15,800-16,500 kg
Payload
4,800 kg
Rated Power
129/133 kW
Key Features
- Customized engine is perfectly matched power-train for high efficiency and low fuel consumption.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- Robust design of frame structure, wide spread hitch and wear-resistance bucket for maixmum durability.
- Pressurized cab, 309° panoramic visibility, ergonomically design and three-stage vibration reduction give the operator a safe and comfortable work environment.
- Wide open access to all servicing points for easy serviceabilty.
Specifications
848T (EU Satge V)
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Operating Weight | 16,500 kg | 36,376 lbs |
| Standard Bucket Capacity | 2.7 m³ | 3.5 yd³ |
| Gross Power | 145 kW ( 194 hp / 197 ps ) @ 2,000 rpm | 145 kW ( 194 hp / 197 ps ) @ 2,000 rpm |
| Net Power | 136 kW ( 182 hp / 185 ps ) @ 2,000 rpm | 136 kW ( 182 hp / 185 ps ) @ 2,000 rpm |
| Total Hydraulic Cycle Time | 10.5 s | 10.5 s |
| Raise | 5.6 s | 5.6 s |
| Maximum Travel Speed, fwd | 39 km/h | 24.2 mph |
| Tipping Load-Full Turn | 9,600 kg | 21,164 lbs |
| Bucket Breakout Force | 142 kN | 31,923 lbf |
| Dump Clearance at Full Height Discharge | 2,848 mm | 9.34 ft. |
| Dump Reach at Full Height Discharge | 1,207 mm | 3.96 ft. |
| Model | Cummins B6.7 | Cummins B6.7 |
| Emission Rating | EU Stage V | EU Stage V |
| Aspiration | Turbocharged & Air-to-air intercooled | Turbocharged & Air-to-air intercooled |
| Length with Bucket Down | 7,924 mm | 26.00 ft. |
| Width over Tires | 2,670 mm | 8.76 ft. |
| Cab Height | 3,382 mm | 11.10 ft. |
| Turning Radius, Outside of Tire | 5,647 mm | 18.53 ft. |
| Bucket Capacities | 2.5-5.0 m³ | 3.3-6.5 yd³ |
| GP Bucket | 2.5-3.5 m³ | 3.3-4.6 yd³ |
848T (Tier 3/Stage III)
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Operating Weight | 15,800 kg | 34,833 lbs |
| Standard Bucket Capacity | 2.7 m³ | 3.5 yd³ |
| Rated Power | 133 kW (178 hp / 181 ps) @ 2,200 rpm | 133 kW (178 hp / 181 ps) @ 2,200 rpm |
| Totral Hydraulic Cycle Time | 9.4 s | 9.4 s |
| Raise | 5.2 s | 5.2 s |
| Maximum Travel Speed, fwd | 39.3 km/h | 24.2 mph |
| Tipping Load-Full Turn | 9,800 kg | 21,605 lbs |
| Bucket Breakout Force | 166 kN | 37,318 lbf |
| Dump Clearance at Full Height Discharge | 2,952 mm | 9.68 ft. |
| Dump Reach at Full Height Discharge | 1,060 mm | 3.48 ft. |
| Model | Cummins B7 | Cummins B7 |
| Emission Rating | Tier 3/Stage III | Tier 3 / Stage III |
| Aspiration | Turbocharged & Air-to-air intercooled | Turbocharged & Air-to-air intercooled |
| Length with Bucket Down | 7,760 mm | 25.46 ft. |
| Width over Tires | 2,670 mm | 8.76 ft. |
| Cab Height | 3,340 mm | 10.96 ft. |
| Turning Radius, Outside of Tire | 5,645 mm | 18.52 ft. |
| Bucket Capacities | 2.5-6.0 m³ | 3.3-7.8 yd³ |
| GP Bucket | 2.5-3.2 m³ | 3.3-4.2 yd³ |
| Light Material Bucket | 6.0 m³ | 7.8 yd³ |
Applications
The 848T is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
