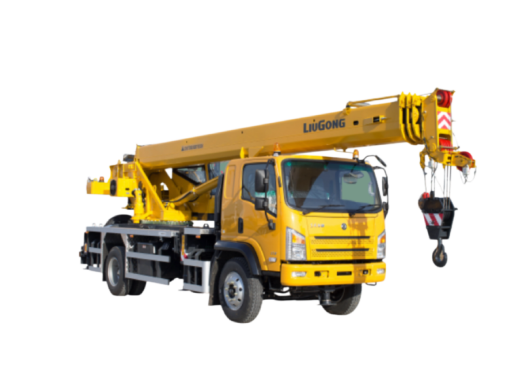

LTC120L4 Truck Crane
The LiuGong LTC120L4 truck cranes delivers basic boom length of 8.65 m; max. main boom length of 28 m; max. rated lifting capacity of 12 t. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LTC120L4 Truck Cranes
Basic Boom Length
8.65 m
Max. Main Boom Length
28 m
Max. Rated Lifting Capacity
12 t
Key Features
- The LTC120L4 ensures stability and load capacity under harsh conditions with its high-strength torsion-resistant frame.
- The ergonomic cab offers 360° visibility, tempered glass, and corrosion-resistant steel for safety and comfort. Safety devices include LMI, height limiter, night-vision level meter, and reverse camera, comprehensively preventing overload, over-winding, and tipping.
- The power system features a Yuchai engine and a FAST 8-speed gearbox for fuel efficiency, low noise, easy maintenance, and fast, efficient travel between sites; a triple hydraulic pump ensures smooth composite actions and rapid response; and an intelligent electronic control chassis system reduces power consumption and improves efficiency.
- For maintenance, the flattened walkway and open service area enable quick inspection and repair, and the fully extended boom can be lowered flat for easy boom maintenance.
Specifications
| Basic Boom Length | 8.65 m |
|---|---|
| Maximum Main Boom Length | 28 m |
| Maximum Rated Lifting Capacity | 12 t |
| Dimension | 10,290*2,400*3,250 mm |
| Gross Vehicle Weight (GVW) | 13,500 kg |
| Engine Model | YCS04170-30 (Euro III) |
| Engine Rated Power | 125/2,300 kW/(r/min) |
| Engine Maximum Output Torque | 550/(1,200-1900 N·m/(r/min) |
| Maximum Travel Speed | 88 km/h |
| Minimum Turning Radius | 8.25 m |
| Approach Angle | 17° |
| Departure Angle | 11° |
| Maximum Gradeability | 40% |
| Outrigger Span (Transverse) | 5.3 m |
| Outrigger Span (Longitudinal) | 4.5 m |
| Front Axle Load | 4,650 kg |
| Rear Axle Load | 8,850 kg |
Applications
The LTC120L4 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
