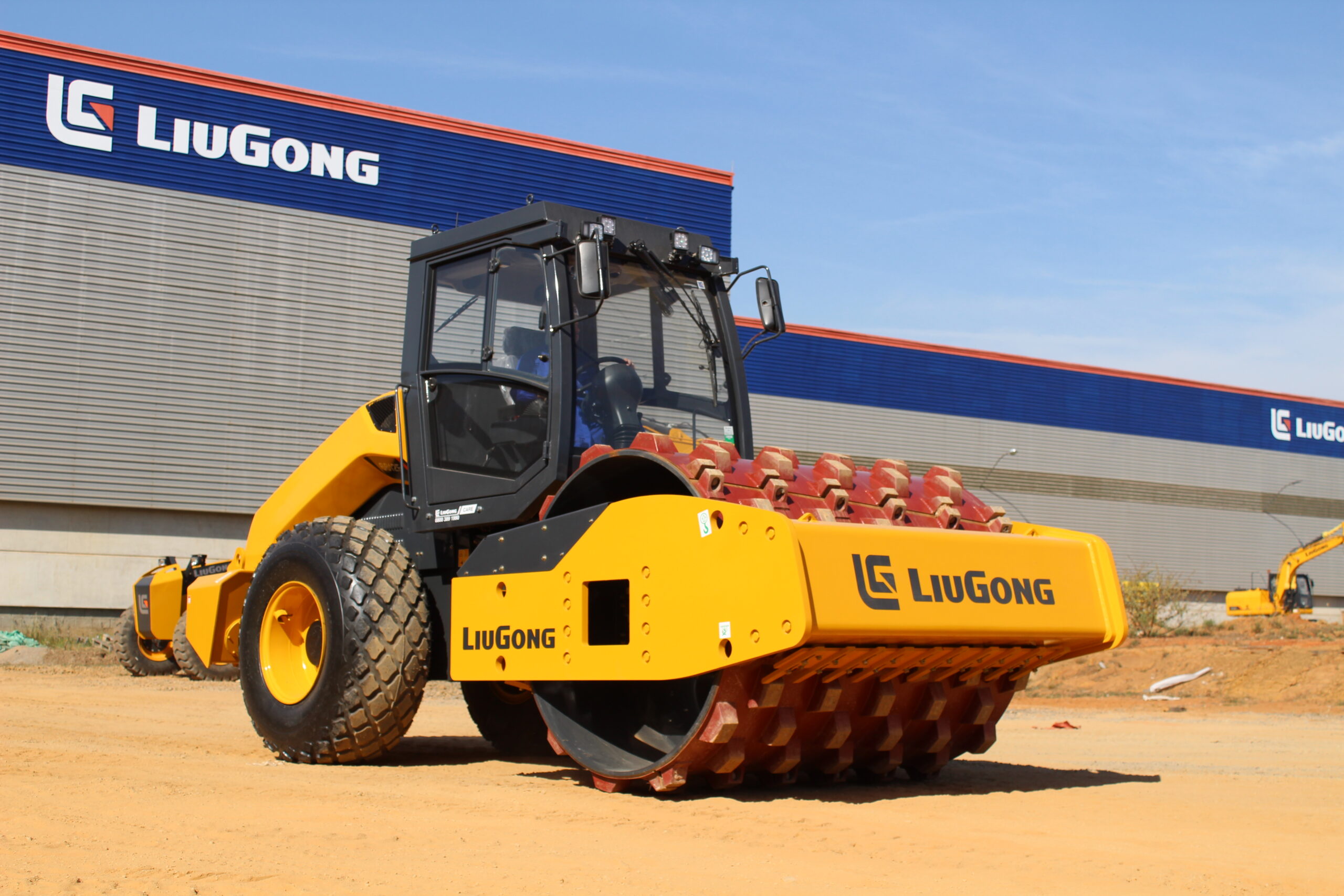

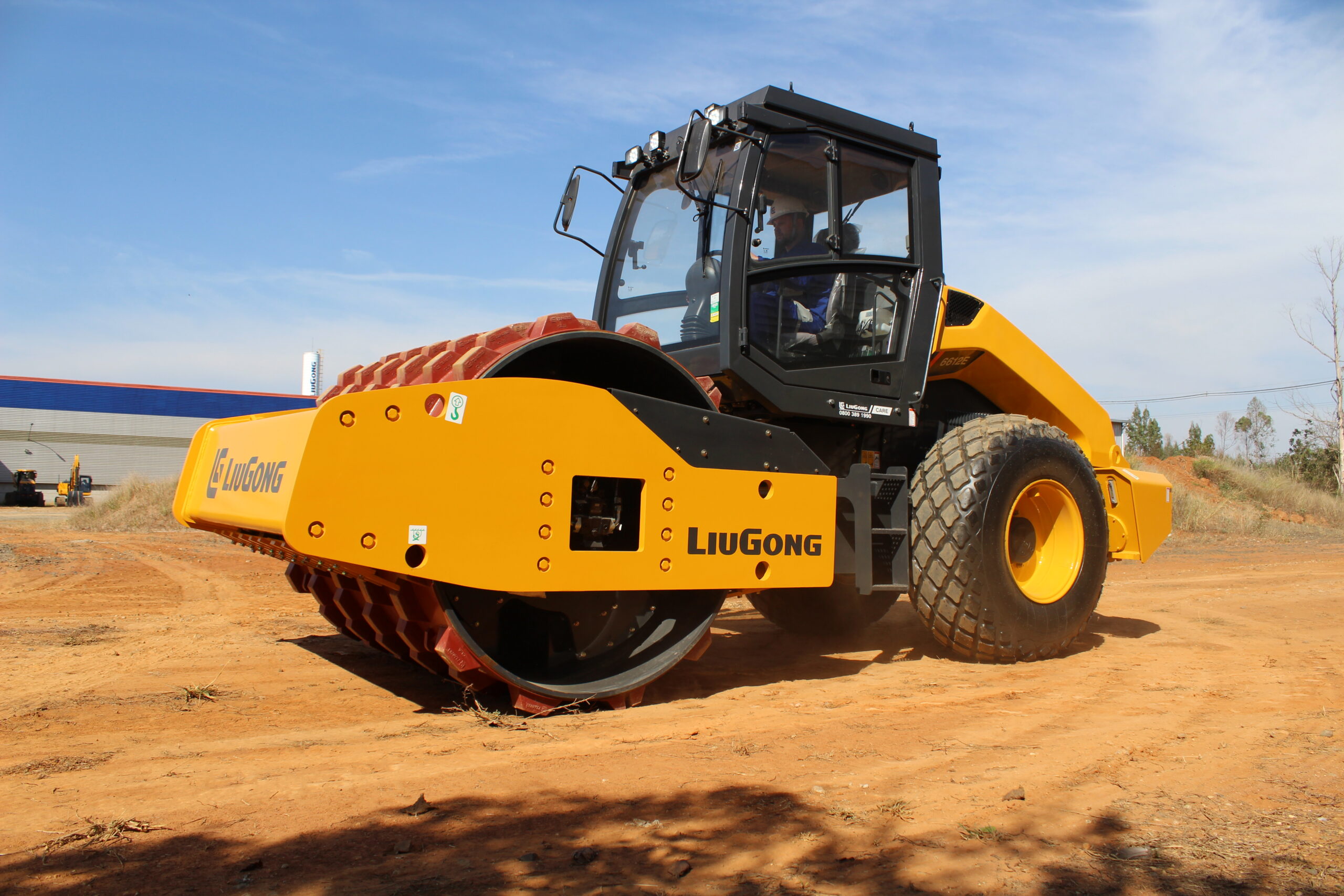

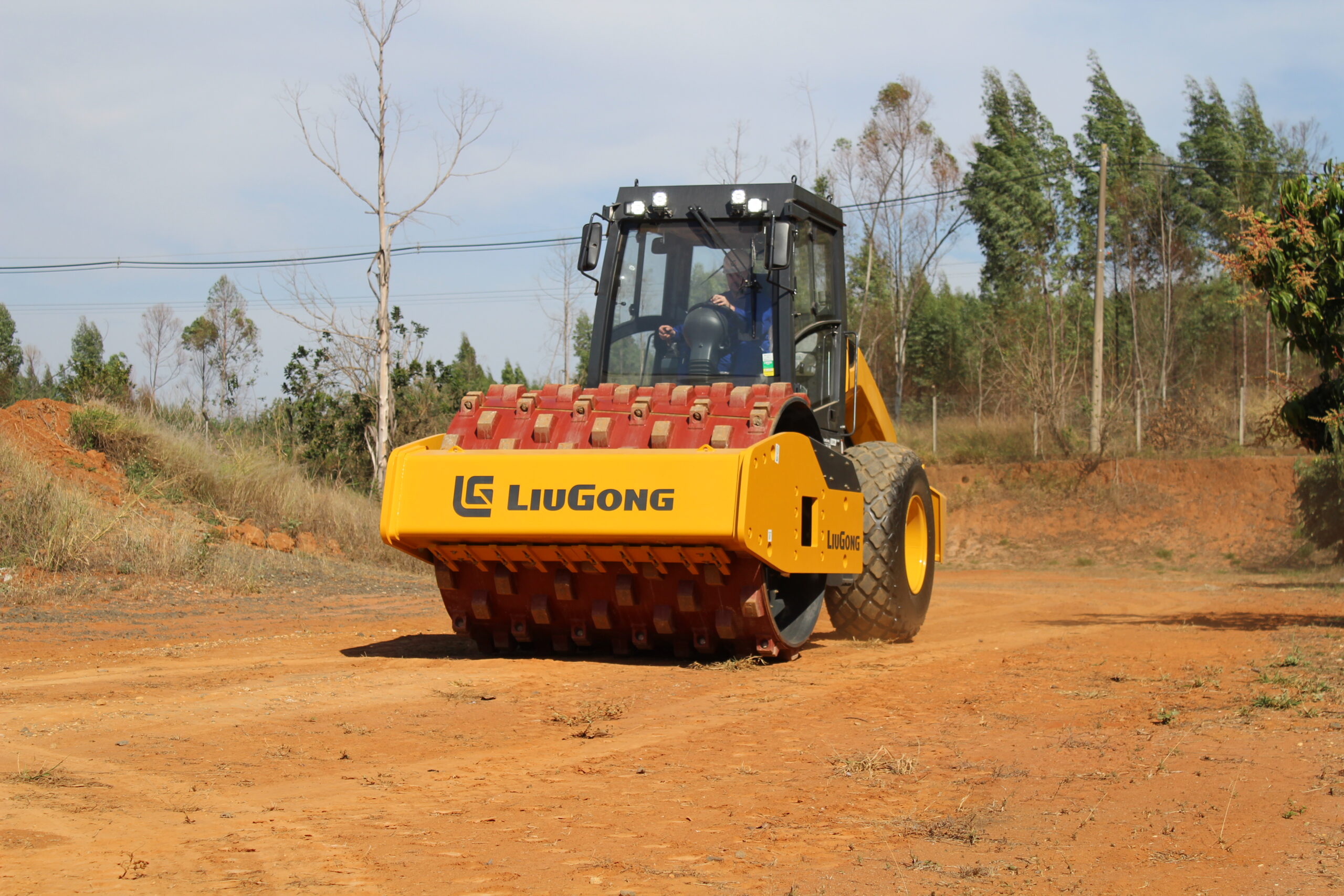

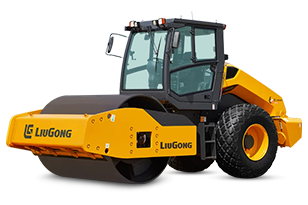

6612E Roller
The LiuGong 6612E compaction roller offers operating weight of 12,200 kg; rated power of 119 kW (162 hp) @ 2,000 rpm; weight on vibratory drum of 7,200 kg. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6612E Rollers & Compaction
Operating Weight
12,200 kg
Rated Power
119 kW (162 hp) @ 2,000 rpm
Weight on Vibratory Drum
7,200 kg
Specifications
| Operating Weight | 12,200 kg |
|---|---|
| Weight on Vibratory Drum | 7,200 kg |
| Weight on Drive Axle | 5,000 kg |
| Front Drum Static Linear Load | 331 N/cm |
| Engine Model | Cummins QSB4.5 |
| Emission Standard | Tier 3 |
| Rated Power | 119 kW (162 hp) @ 2,000 rpm |
| Vibration Frequency | 30 / 33 Hz |
| Nominal Amplitude | 2.0 / 1.1 mm |
| Centrifugal Force | 300 / 190 kN |
| Drum Diameter | 1,555 mm |
| Max Forward Speed (1st) | 4.5 km/h |
| Max Forward Speed (2nd) | 6.1 km/h |
| Max Forward Speed (3rd) | 6.7 km/h |
| Max Forward Speed (4th) | 12 km/h |
| Steering Angle | 35° |
| Vertical Articulation | 10° |
| Gradeability | 50% |
| Min Ground Clearance | 470 mm |
| Wheelbase | 2,980 mm |
| Min Outer Turning Radius | 6,500 mm |
| Overall Length | 6,000 mm |
| Overall Width | 2,280 mm |
| Overall Height | 3,080 mm |
| Roller Width | 2,130 mm |
| Roller Diameter | 1,555 mm |
| Drum Shell Thickness | 30 mm |
| Tires | 23.1-26 16 PR |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 12,200 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6612E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6612E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
