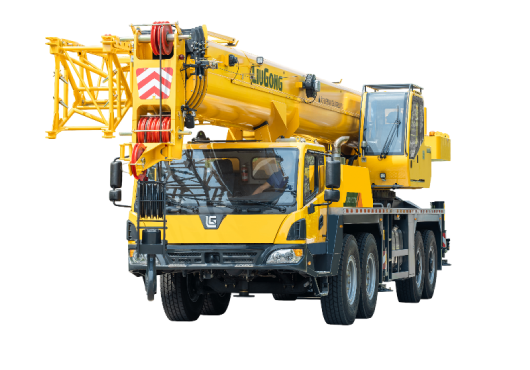

LTC800T5 Truck Crane
The LiuGong LTC800T5 truck cranes delivers basic boom length of 12.8 m; max. main boom length of 50 m; max. rated lifting capacity of 80 t. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LTC800T5 Truck Cranes
Basic boom length
12.8 m
Max. main boom length
50 m
Max. Rated Lifting Capacity
80 t
Key Features
- LTC800T5 offers exceptional maneuverability with multiple steering modes (front-wheel, all-wheel, and crab steering) for enhanced flexibility in confined spaces. It boasts best-in-class gradeability and an industry-leading boom length to maximize operating range, supported by a large outrigger span for superior stability and a solid working foundation.
Specifications
| Max. rated lifting capacity | 80 t |
|---|---|
| The axle distance | 1,530+4,650+1,500 mm |
| Engine model | ISLe375 30 (Euro III) |
| Max. rated torque of the engine | 1,550/1,400 N·m/(r/min) |
| Max. rated power of the engine | 250/2100 kW/(r/min) |
| Min. turning diameter | 20 m |
| Outrigger span | 8×6.5 m |
| Boom luffing time | 70/115 s |
| Boom extension time | 125/155s |
| Max. slewing speed | 1.5 r/min |
| Dimensions (L x W x H) | 14,990×2,800×3,910 mm |
| The total weight during driving | 45,000 kg |
| Max. travel speed | 85 km/h |
| Approach and departure angle | 19°/17° |
| Max. lifting speed: Main winch (No load) | 125 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 125 m/min |
Applications
The LTC800T5 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LTC800T5 Truck Crane
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
