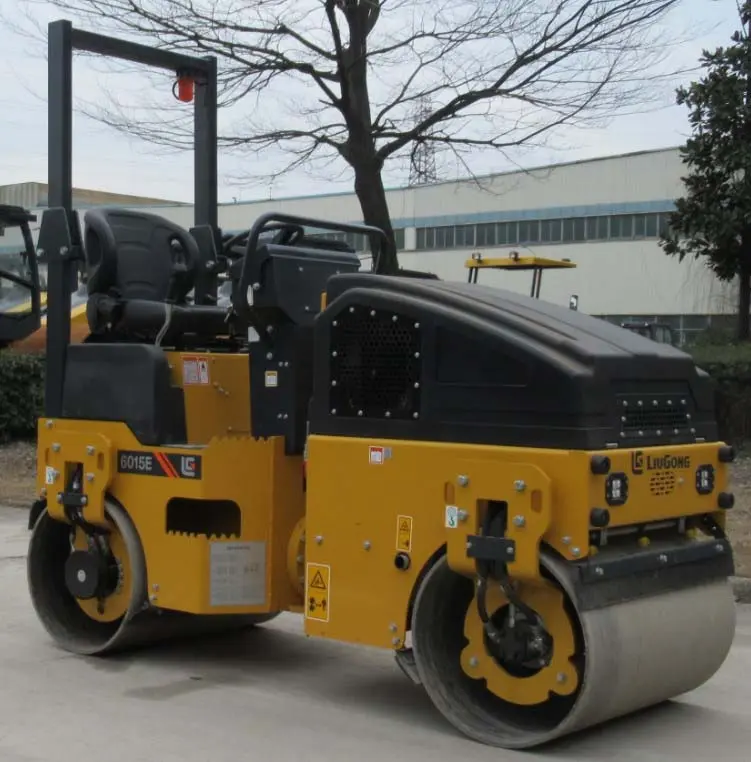

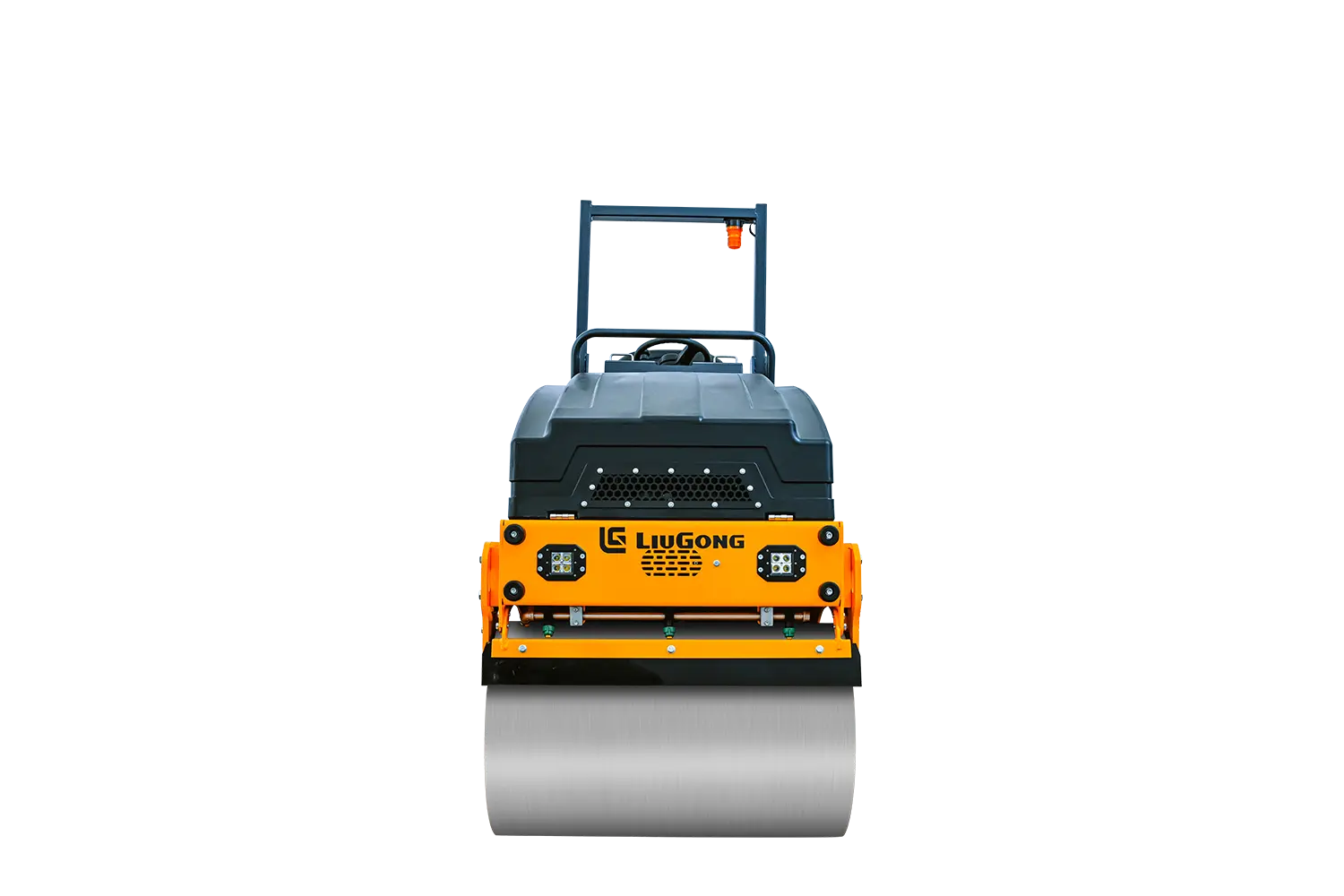

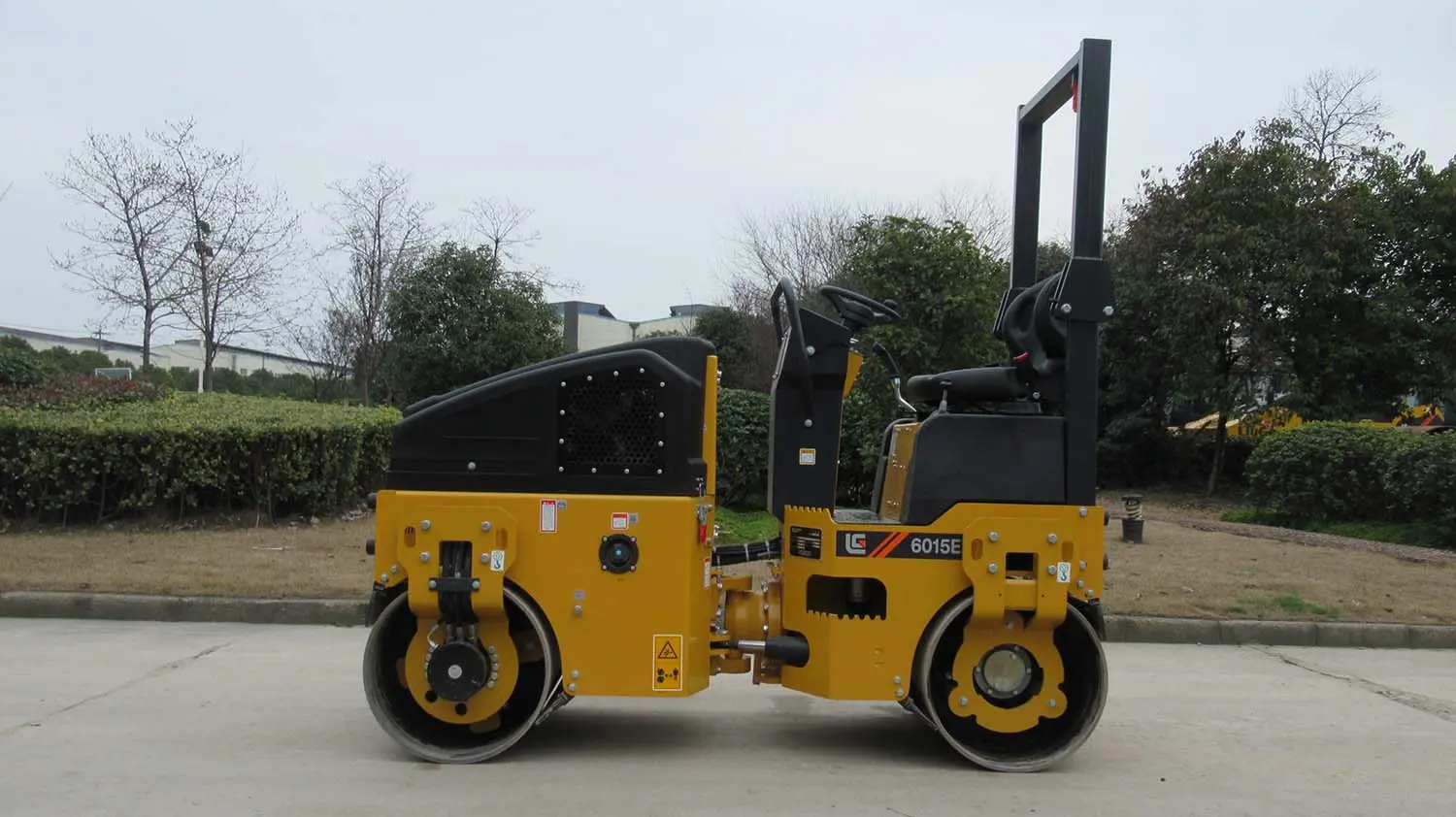

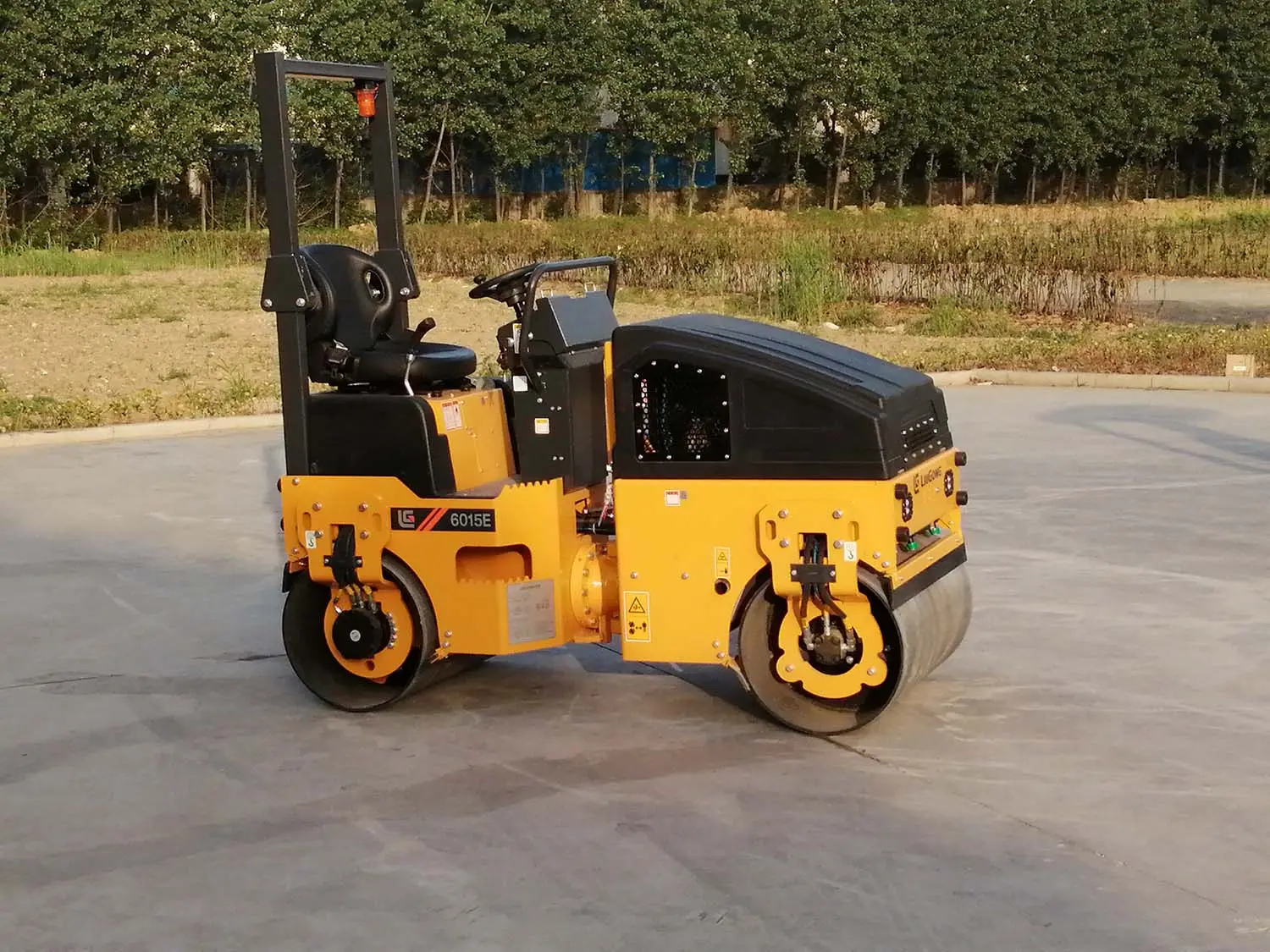

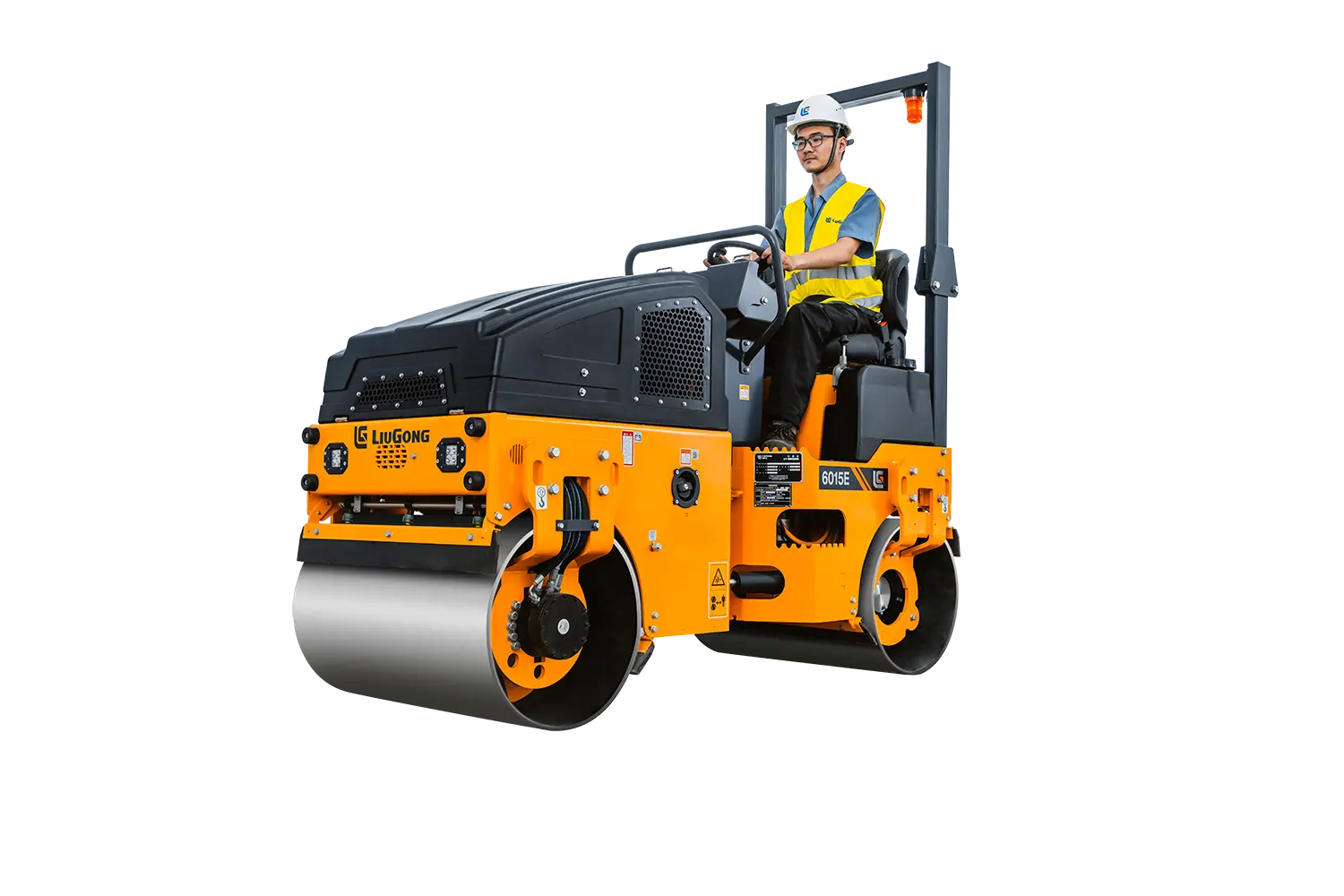

6615E Roller
The LiuGong 6615E compaction roller offers operating weight of 1,675 kg; rated power of 14.7 kW (19.7 hp / 20 ps) @ 3,600 rpm; front drum static linear load of 90 N/cm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6615E Rollers & Compaction
Operating Weight
1,675 kg
Rated Power
14.7 kW (19.7 hp / 20 ps) @ 3,600 rpm
Front Drum Static Linear Load
90 N/cm
Specifications
| Operating Weight | 1,675 kg |
|---|---|
| Front Drum Static Linear Load | 90 N/cm |
| Engine Model | Kubota D722-EF01 |
| Max Forward Speed | 7 km/h |
| Emission Standard | Tier 3 |
| Rated Power | 14.7 kW (19.7 hp / 20 ps) @ 3,600 rpm |
| Steering Angle | 30° |
| Wheelbase | 1,700 mm |
| Min Outer Turning Radius | 3,500 mm |
| Overall Length | 2,300 mm |
| Overall Width | 990 mm |
| Overall Height | 2,276 mm |
| Tire Size | 23.1-26-12PR |
Key Features
- Operating weight 1,675 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6615E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6615E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
