Concrete Equipment
Concrete batching plants and truck-mounted line pumps for consistent concrete production and placement.
15Models in Range
120 m³/hTheoretical Output
JS2000Mixer
2 x 37 kWRated power
Key Features

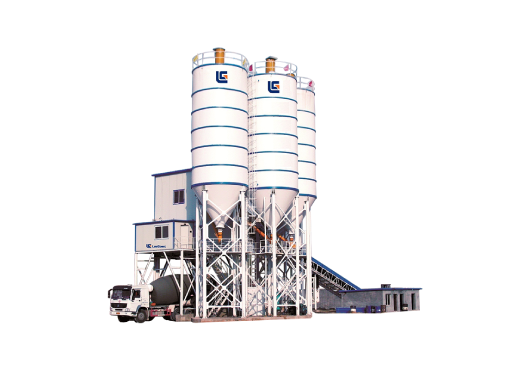

- Stationary batching plants from 25 to 240 m³/h
- Accurate weighing and mixing for consistent quality
- Truck-mounted concrete pumps with long reach
- Modular design for fast setup and transport
Representative Specifications
| Theoretical Output | 120 m³/h |
|---|---|
| Cycle Period | 60 s |
| Mixer | JS2000 |
| Mixer Capacity | 2000 L |
| Max Motor | 2 × 37 kW |
| Silos | 4×200 t (optional) |
| Aggregate Batcher | 3200 L |
| Aggregate Hoppers | 4×25 m³ |
| Aggregate Types | 4 |
| Slope Belt Capacity | 800 t/h |
| Screw Conveyor Capacity | 80 t/h |
| Concrete Discharge Height | 4 m |
Full specifications and brochures are available on each model page.
Model Range
Available Models
Full Range
All Concrete Equipment Models
Complete model list. Click any model to open its specifications and brochure.
