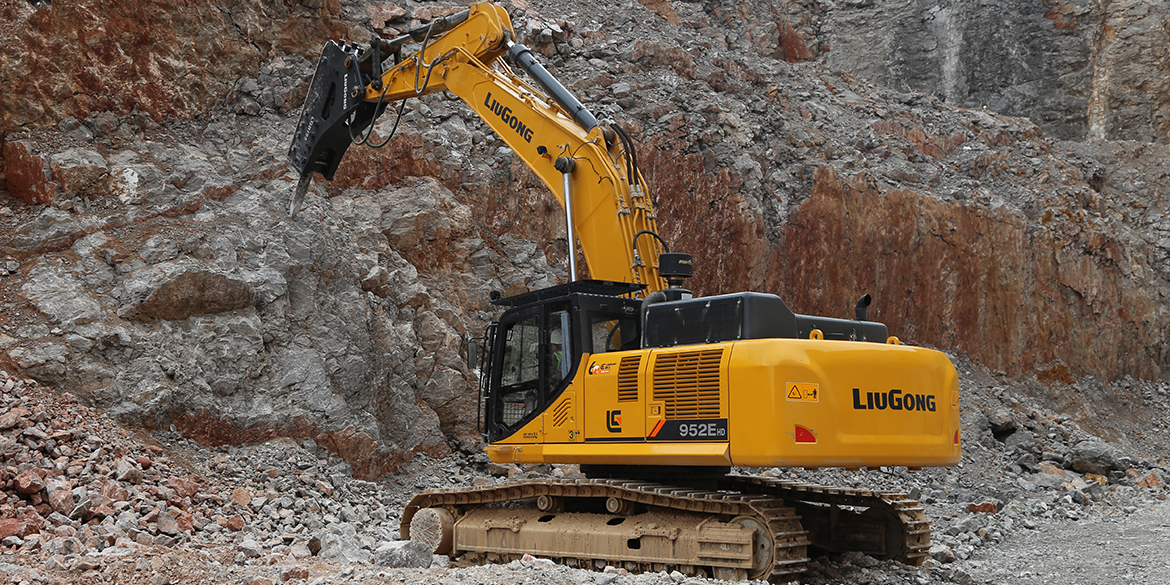

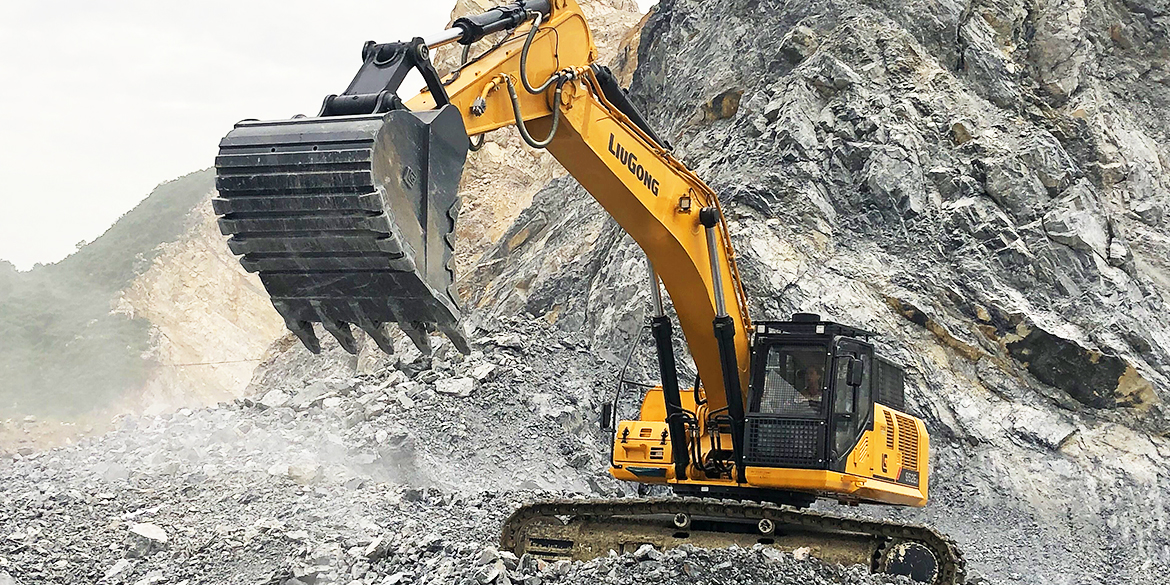

952-EHD Excavator
The LiuGong 952-EHD crawler excavator offers operating weight of 39,500–51,000 kg; engine power of 280 kW (375 hp) @ 2,000 rpm; bucket capacity of 3.2 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
952-EHD Excavators
Operating Weight
39,500–51,000 kg
Engine Power
280 kW (375 hp) @ 2,000 rpm
Bucket Capacity
3.2 m³
Specifications
| Operating Weight | 39,500–51,000 kg |
|---|---|
| Engine Power | 280 kW (375 hp) @ 2,000 rpm |
| Bucket Capacity | 3.2 m³ |
| Travel Speed (High) | 5.3 km/h |
| Max Swing Speed | 8.5 rpm |
| Arm Digging Force | 287 kN |
| Bucket Digging Force (Power Boost) | 310 kN |
| Transport Length | 11,515 mm |
| Transport Width | 3,340 mm |
| Transport Height | 3,810 mm |
| Track Shoe Width (Std) | 650 mm |
| Track Length | 5,500 mm |
| Track Gauge | 2,740 mm |
| Boom | 6,500 mm |
| Arm | 2,550 mm |
| Reach | 10,625 mm |
| Digging Reach | 10,338 mm |
| Digging Depth | 6,521 mm |
| Vertical Wall Dig Depth | 5,240 mm |
| Max Cutting Height | 7,038 mm |
| Max Loading Height | 7,265 mm |
| Min Swing Radius | 4,645 mm |

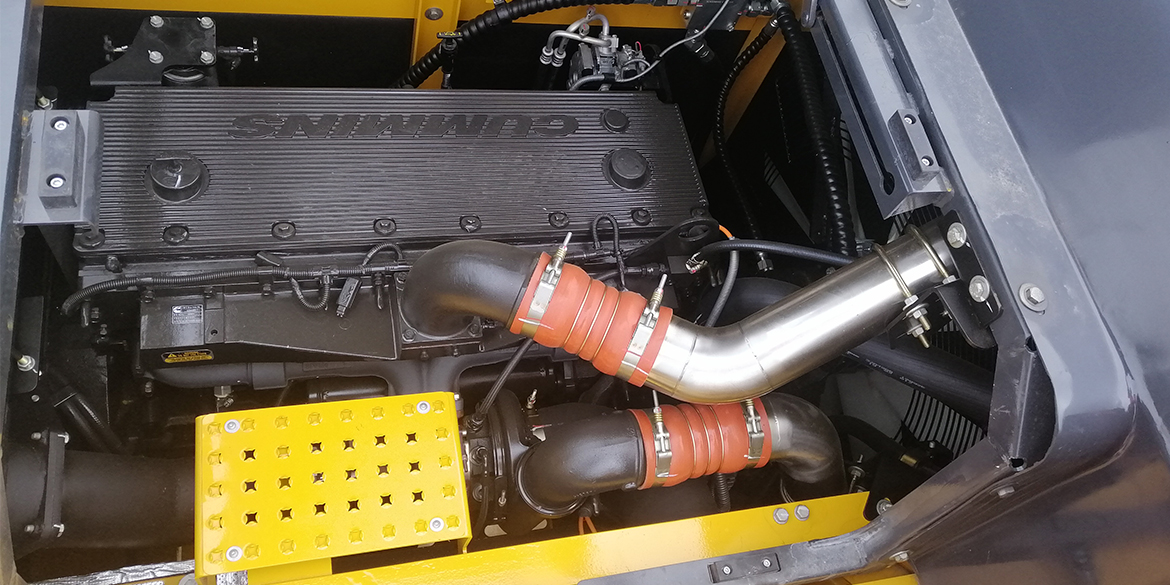

| Engine Model | Cummins QSM 11 |
| Emission Standard | Tier 3 / Stage III |

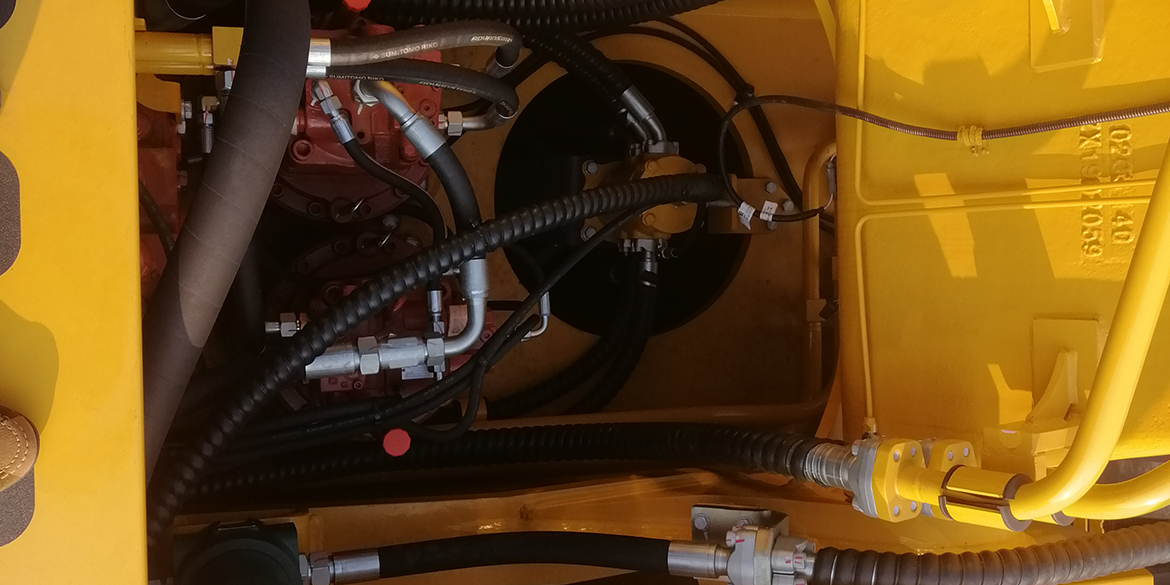

| Max Hydraulic Flow | 2 × 380 L/min |
| Hydraulic System Pressure | 34.3 MPa / 37.2 MPa Boost |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 39,500–51,000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 280 kW (375 hp) @ 2,000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 3.2 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 952-EHD is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 952-EHD Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
