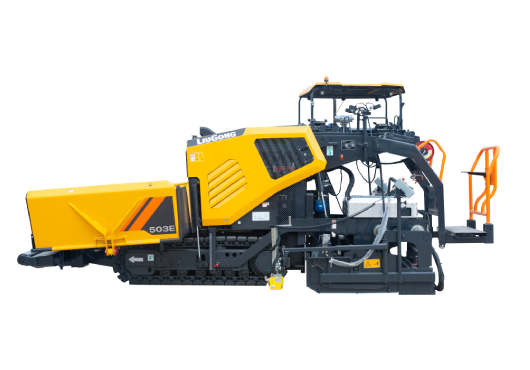

503E Paver
LiuGong Pavers,Our innovative CAN (Intelligent Digital Control System) helps operators set and monitor performance parameters to deliver a consistently high quality result.Automatic leveling from two hydraulic conveyor systems guarantees an even and consistent distribution of material.
503E Pavers
Operating weight
8,300 kg
Rated power
53 kW@2200 rpm
Paving width range
1.2-3.2 m
Key Features
- Our innovative CAN (Intelligent Digital Control System) helps operators set and monitor performance parameters to deliver a consistently high quality result.
- Automatic leveling from two hydraulic conveyor systems guarantees an even and consistent distribution of material.
- The large capacity 5.6 ton hopper is also cleverly positioned to allow material to be spread without heavy impact.
- With a highly efficient powertrain, including ECO mode the 503E is not only a productive paver, it’s an efficient one and can reduce fuel consumption .
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Paving Width Range | 1.2-3.2 m m | 9.84-19.69/8.2-19.69/9.84-18.7 ft. |
| Maximum Paving Thickness | 200 mm | 13.78 in |
| Theoretical Productivity | 300 t/h | 2204622.5 lb/h |
| Operating Mass | 8,300 kg | 52910.94 lb |
| Model | Cummins QSF2.8 t3TC71 | ShangChai 4H |
| Rated Power | 53 kW (71 hp / 72 ps) @ 2200 rpm@ 2,000 rpm | 118 kW (158 hp / 160 ps) @ 2,000 rpm |
| Paving Speed | 0~33 m/min | 0～18 ft/min |
| Traveling Speed | 0~3.8 km/h | 0-2.17 mph |
| Hopper Capacity | 5.6 t | 26455 lb |
| Gradability | 20% | ≥20% |
| Smoothness | ≤3 mm | ≤0.12 in |
| Tamper Type | Single Tamper | Single Tamper |
| Tamper Frequency | 0～30 Hz | 0～30 Hz |
| Tamper Swing | 5 mm | 0.20 in |
| Vibration Frequency | 0-40 Hz | 0-40 Hz |
| Crown Adjustment | -1~4% | -1~4% |
| Paving Compactness Asphalt Asphalt | ≥90% | ≥90% |
| Paving Compactness Asphalt Stabilized Soil | ≥80% | ≥80% |
| Fuel Tank Capacity | 87 L | 55.48 gal |
| Length | 5,660 mm | 242.13 in |
| Width | 3,005 mm | 125.98 in |
| Height | 2,795 mm | 149.61 in |
Applications
The 503E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
