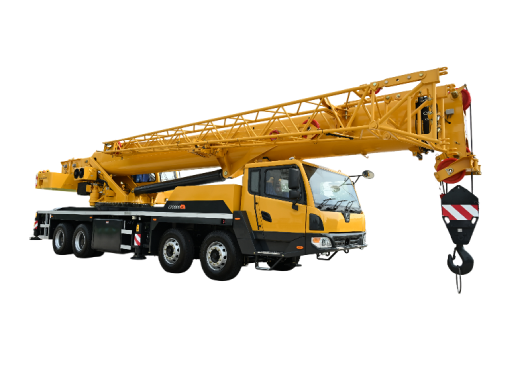

LTC600L5 Truck Crane
The LiuGong LTC600L5 truck cranes delivers basic boom length of 11.5 m; max. main boom length of 45 m; max. rated lifting capacity of 60 t. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LTC600L5 Truck Cranes
Basic boom length
11.5 m
Max. main boom length
45 m
Max. Rated Lifting Capacity
60 t
Key Features
- The LTC600L5 crane delivers superior stability with its extended outrigger span and optimized counterweight design, while its low profile ensures enhanced flexibility and maneuverability. It further excels in performance through a high maximum load moment, exceptional gradeability, and robust lifting capacity supported by powerful single-rope pulling force.
Specifications
| Max. rated lifting capacity | 60 t |
|---|---|
| The axle distance | 1,450+4,200+1,350 mm |
| Engine model | ISLe 340 30 (Euro III) |
| Max. rated torque of the engine | 1,425/1,400 N·m/(r/min) |
| Max. rated power of the engine | 250/2100 kW/(r/min) |
| Min. turning diameter | 20 m |
| Outrigger span | 8×6.5 m |
| Boom luffing time | 45 s |
| Boom extension time | 90 s |
| Max. slewing speed | 2.2 r/min |
| Dimensions (L x W x H) | 14,045×2,790×3,700 mm |
| The total weight during driving | 41,700 kg |
| Max. travel speed | 85 km/h |
| Approach and departure angle | 19°/12° |
| Max. lifting speed: Main winch (No load) | 130 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 130 m/min |
Applications
The LTC600L5 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
