Excavators & Mini Excavators

Operating weight 1.5–95 t · Diesel, electric and low-emission options · High breakout force, low fuel consumption, global parts support.

Buying guide: How to choose the right excavator — size, configuration and support.Read the guide →

Engineered Digging Power, from Utility to Ultra-Class

LiuGong excavators are built around high-strength booms, precision hydraulic systems and world-class drivelines from Cummins and Perkins. The line spans compact city machines, general construction models and ultra-class mining excavators.

1.5–95 tOperating Weight

5.6 m³Max Bucket Capacity

433 kWMax Net Power

Key Features

High-strength box-section boom and arm, robot-welded for long service life
Load-sensing hydraulic system with selectable work modes (P / S / E / B)
Emission options: EU Stage IIIA / Stage V, EPA Tier 3 / Tier 4F, electric drive
Climate-controlled cab with 8″ touch monitor and rear-view camera
Quick coupler-ready: buckets, grapples, breakers and augers available

Specifications

Flagship Models

	995F · Ultra Class	926F–928F · General Duty	9027F · Compact
Operating Weight	94,800 kg	26,500 – 28,400 kg	2,750 kg
Net Power	433 kW (581 hp / 589 ps) @ 2,000 rpm	142 kW	15.2 kW (20.4 hp) @ 2,500 rpm
Engine	Perkins 2806J	Cummins B6.7	Liquid-cooled diesel
Bucket Capacity	5.6 m³	1.5 m³	0.05 – 0.1 m³
Max Digging Reach	—	—	4,757 mm
Max Digging Depth	—	—	2,857 mm

Full model specifications available on request and in downloadable brochures.

Model Range

Available Models

995F Excavators

Ultra-class mining excavator

Weight 94.8 tPower 433 kWBucket 5.6 m³

Get Quote

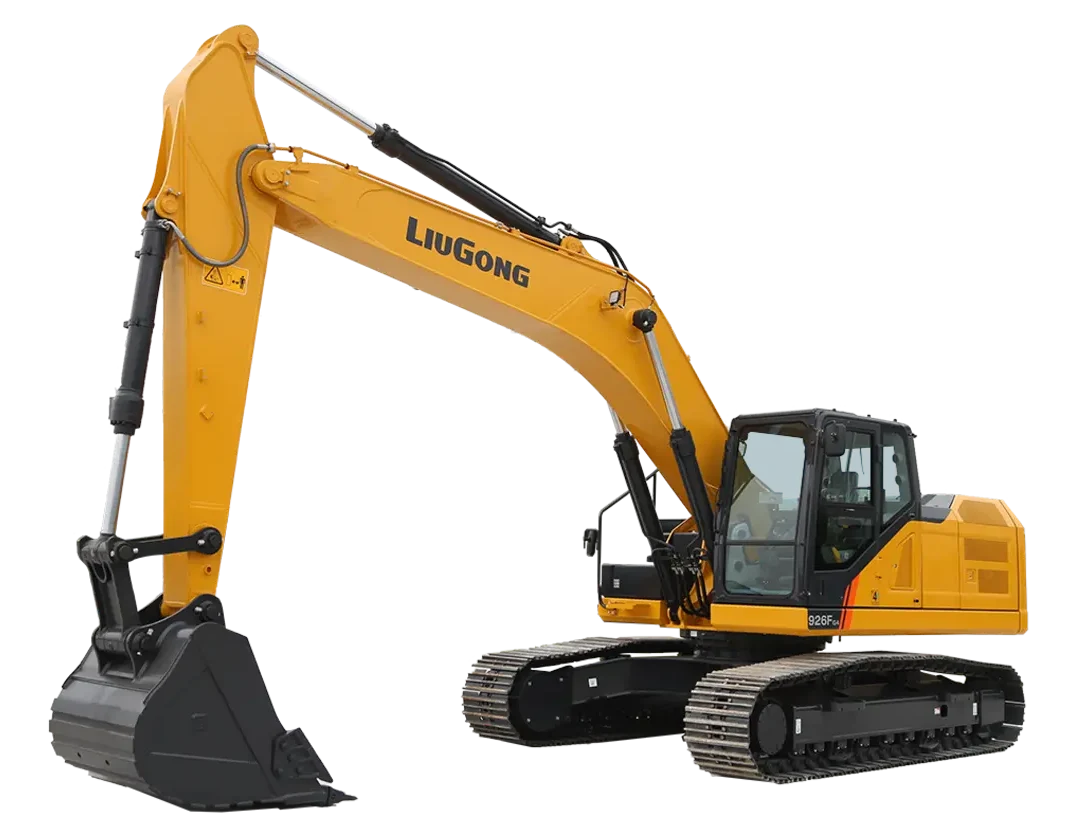

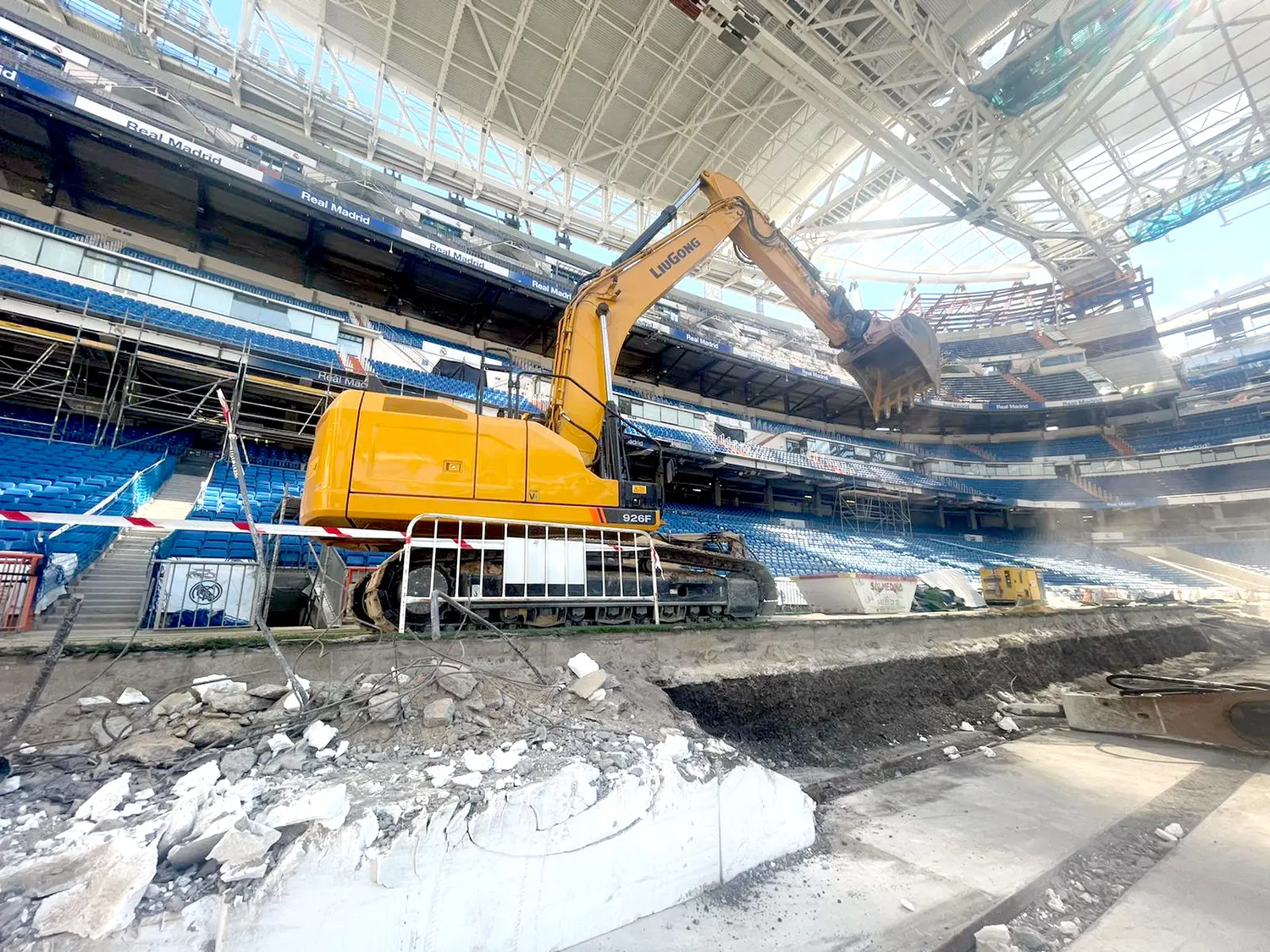

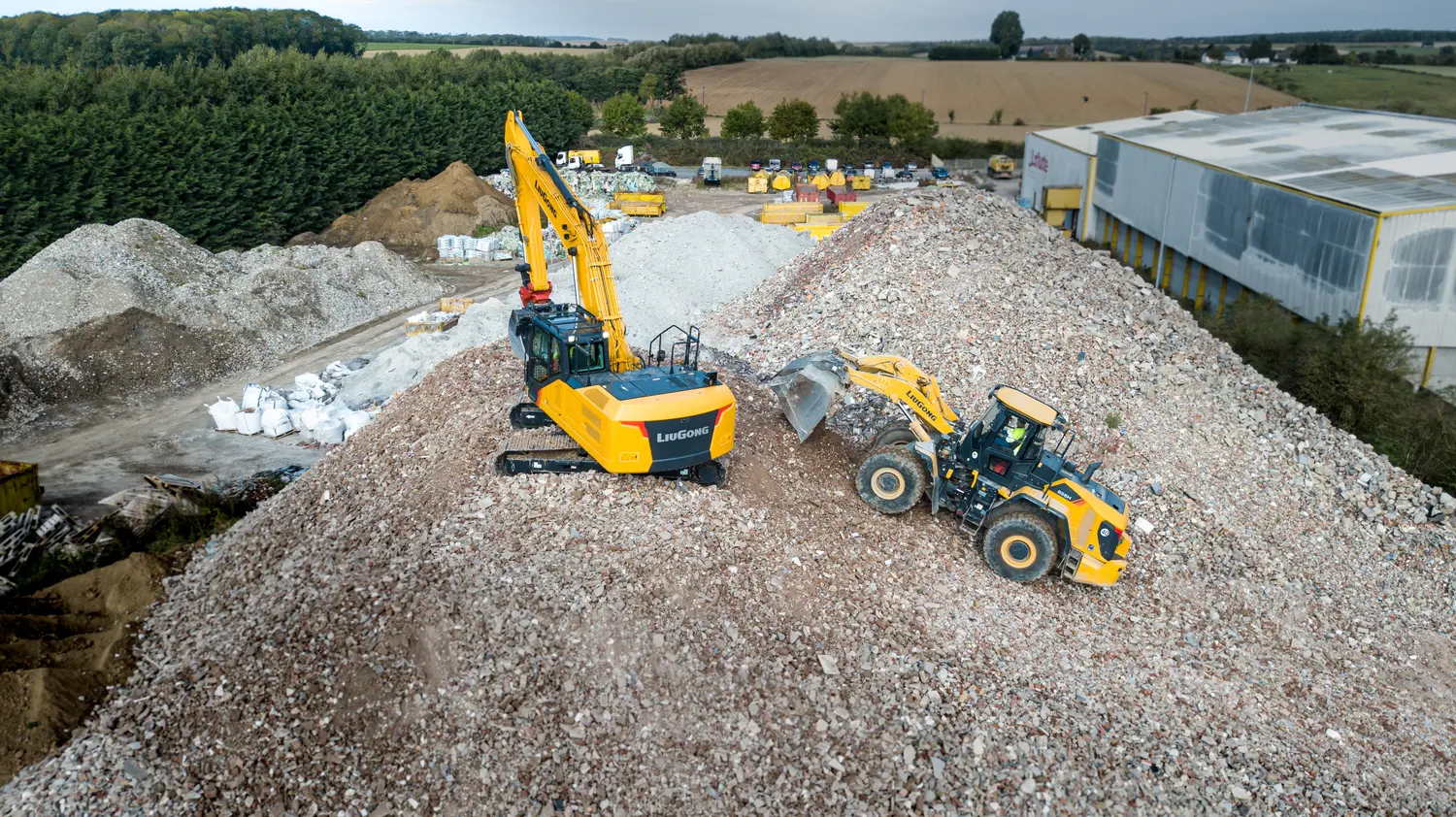

926F–928F Excavators

General construction excavator

Weight 26.5–28.4 tPower 142 kWBucket 1.5 m³

Get Quote

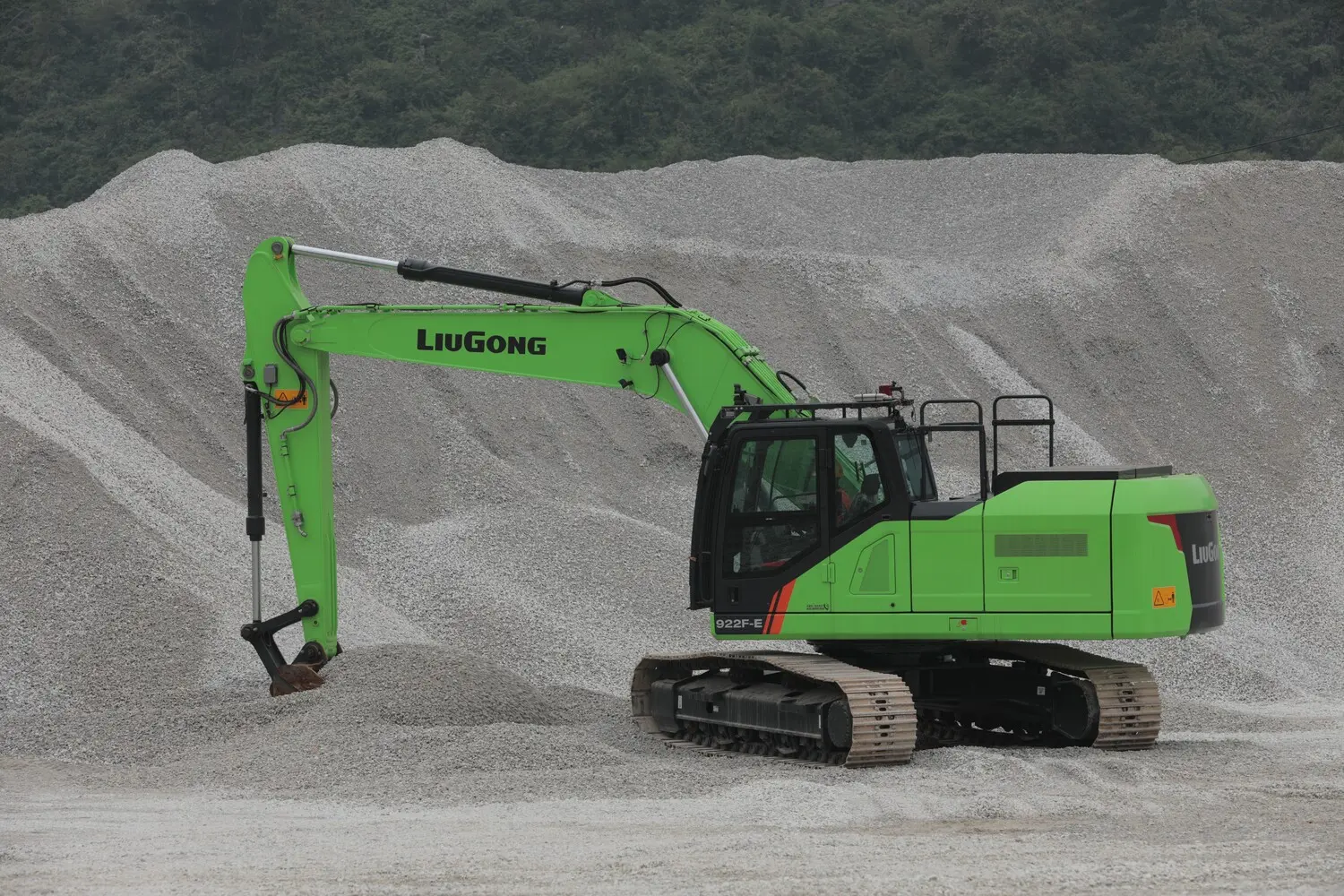

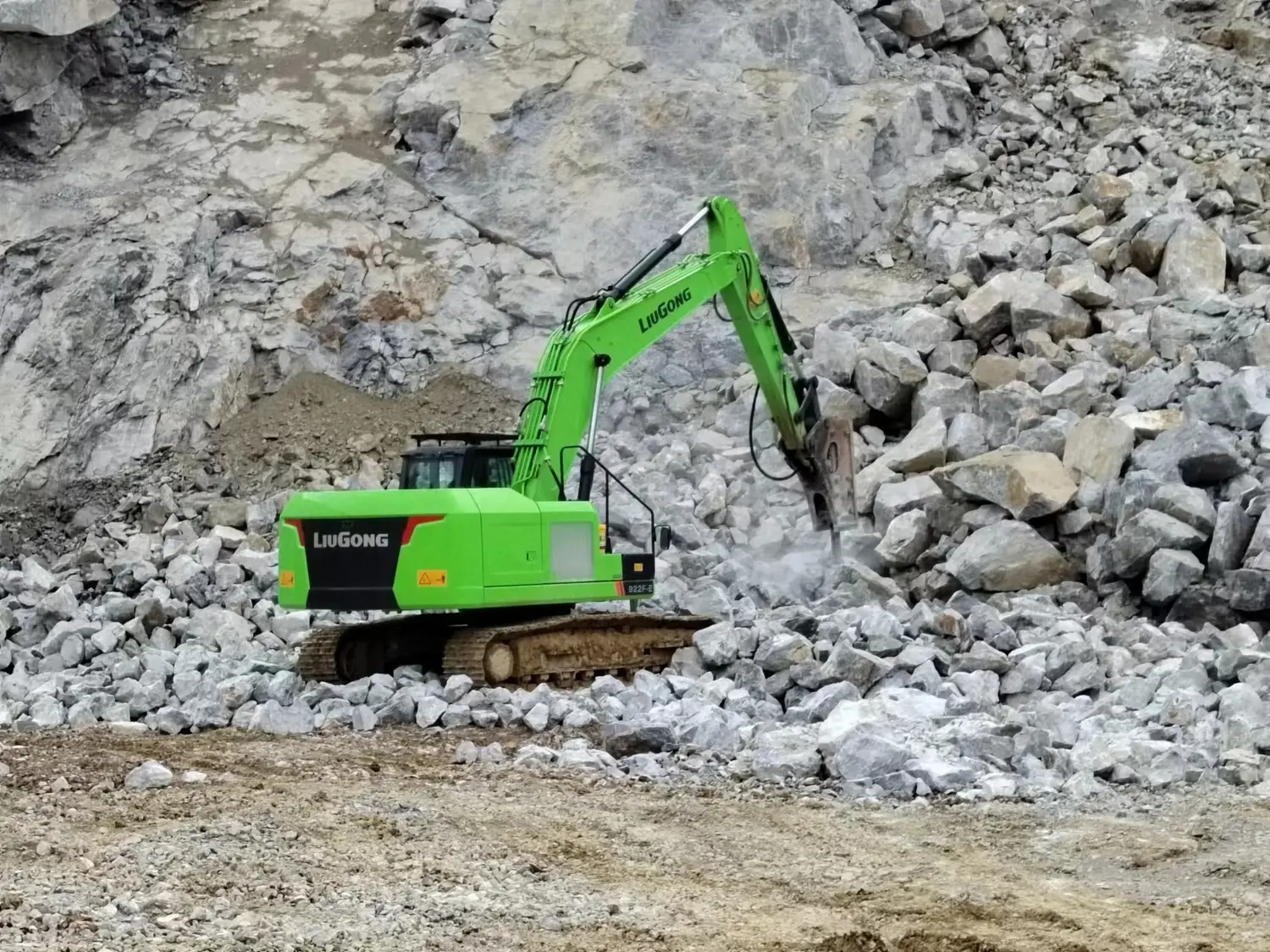

922FE · Electric Excavators

Zero-emission electric excavator

Drive Full electricIdeal for Urban / indoor

Get Quote

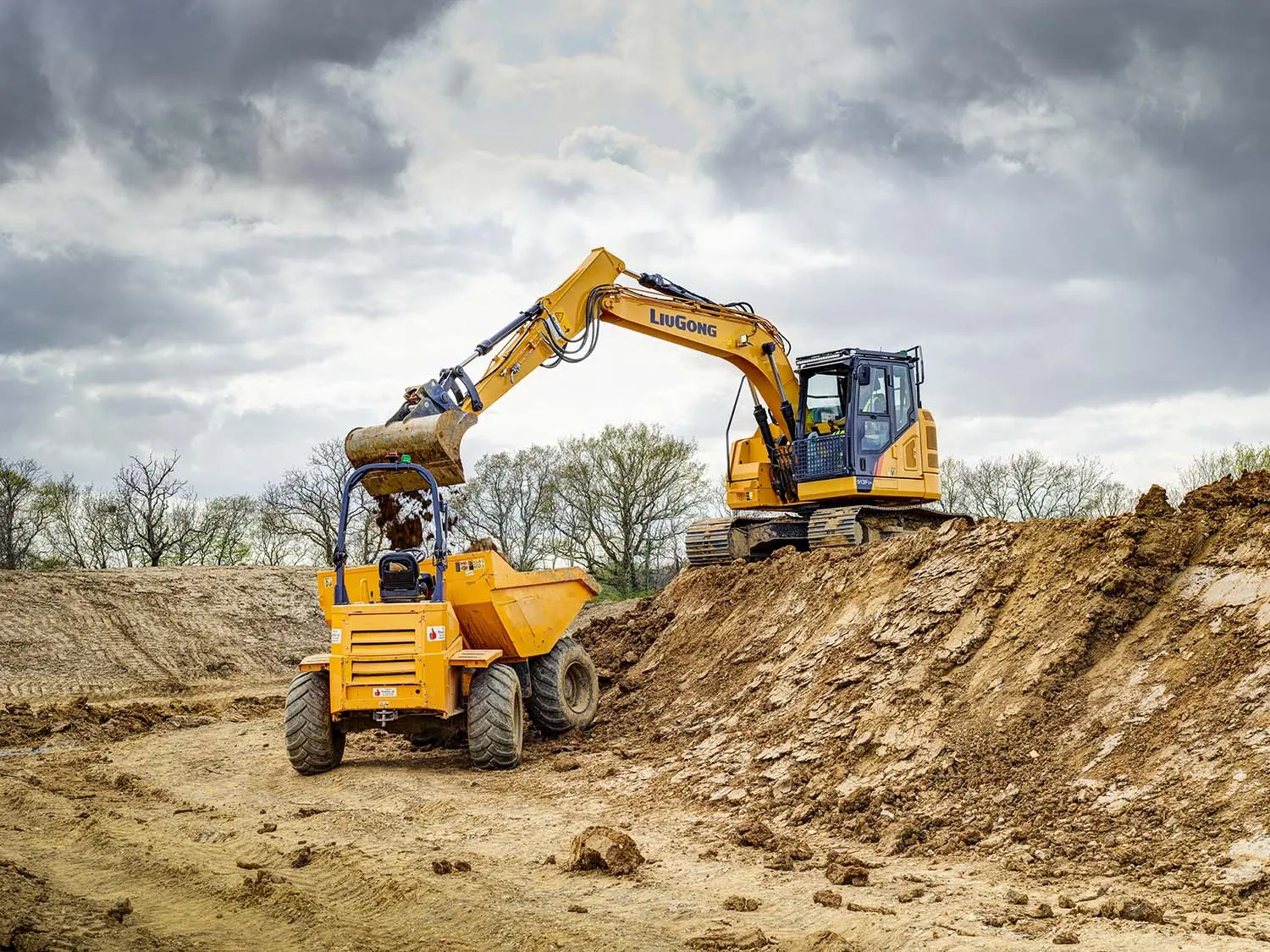

913FCR Excavators

Short-tail swing excavator

Class 13 tUse Utility / urban

Get Quote

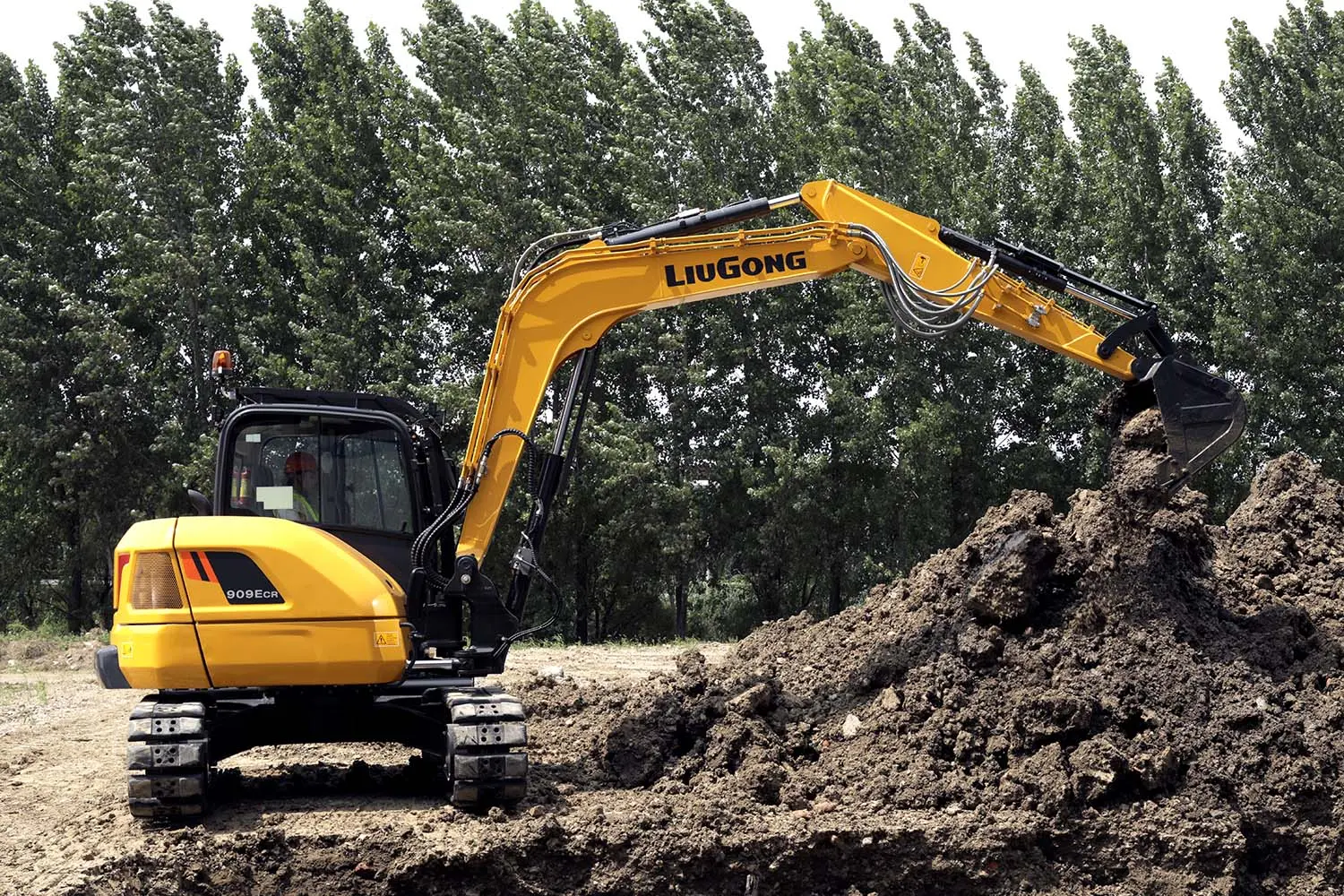

909ECR Excavators

Compact radius excavator

Class 9 tUse Urban / rental

Get Quote

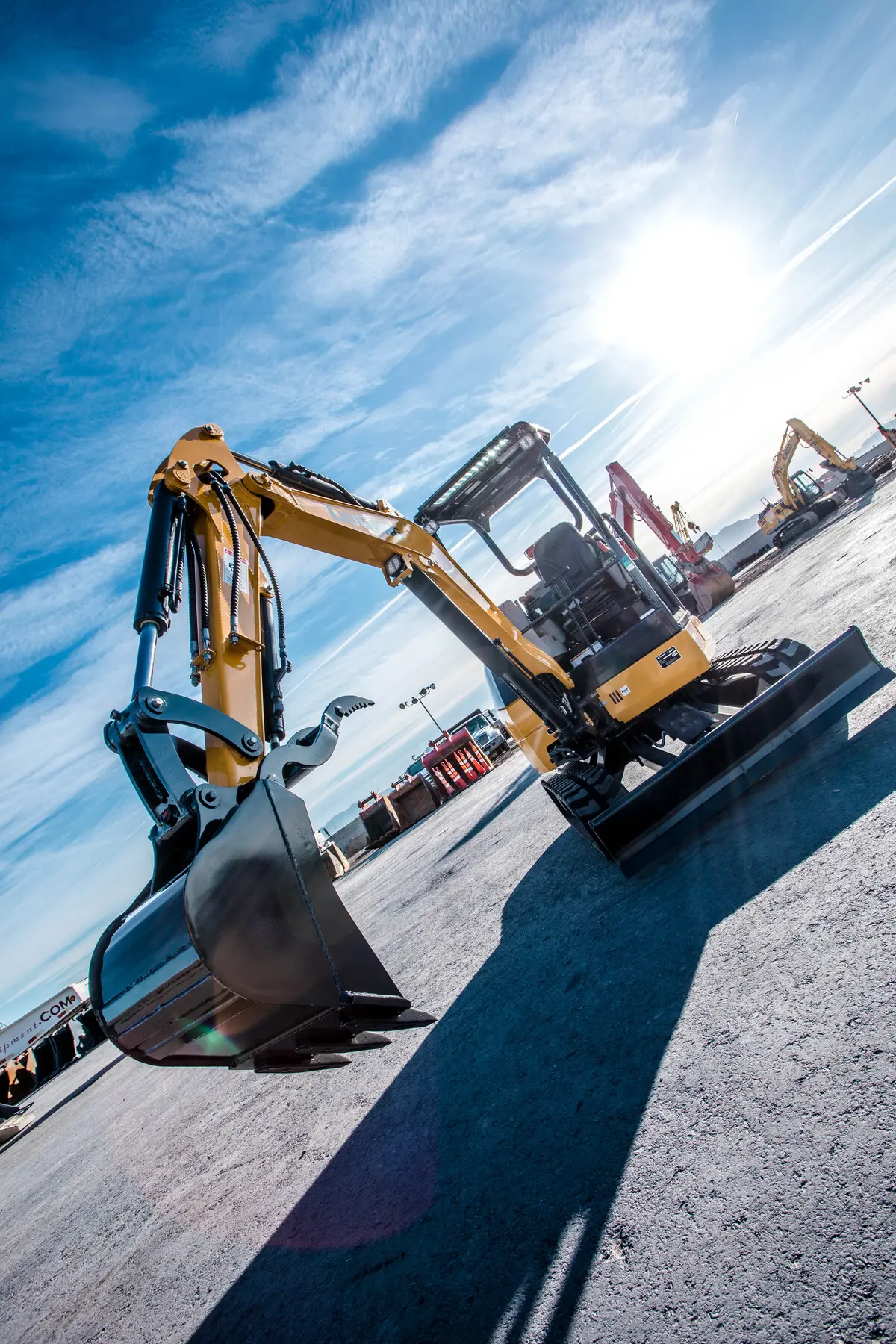

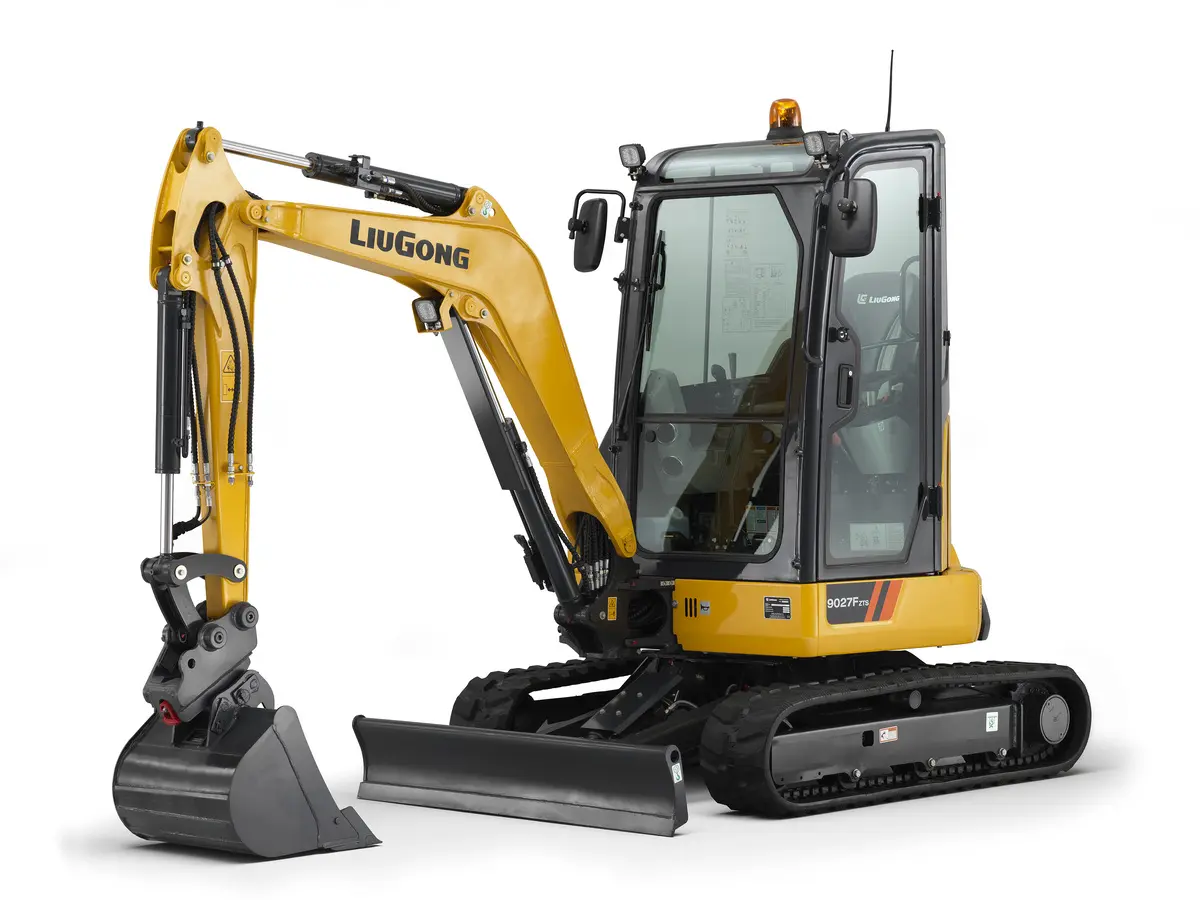

9027F Excavators

Mini excavator for tight spaces

Weight 2.75 tPower 15.2 kW

Get Quote

Customization

Configure Your Machine

Long / standard booms, arm lengths, bucket sizes, track shoe widths, quick couplers, cold-weather kits, emission packages and private-label options are available to order.
