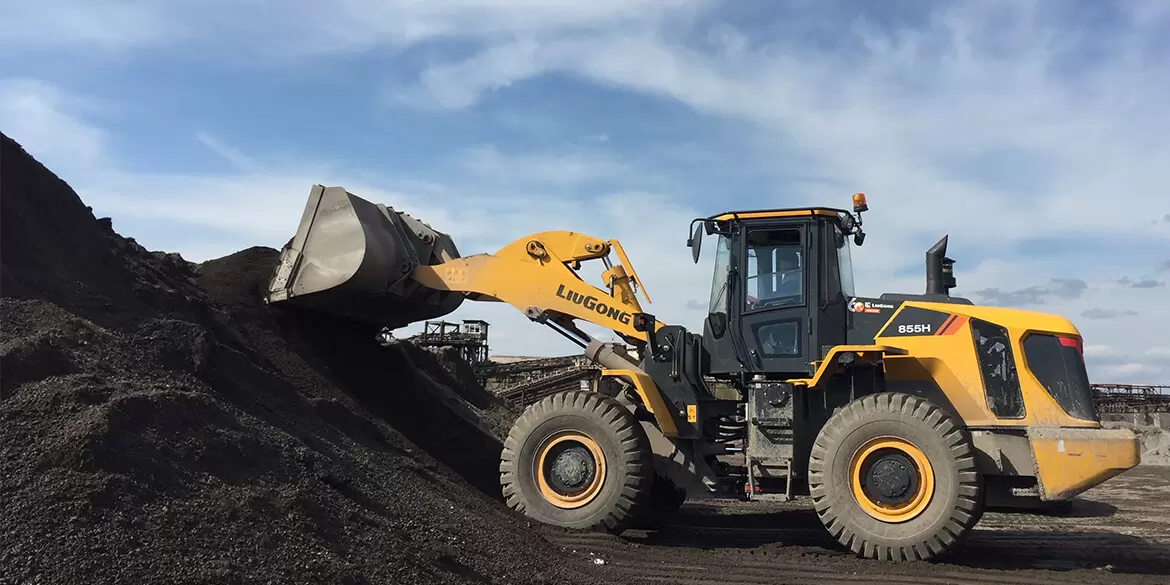

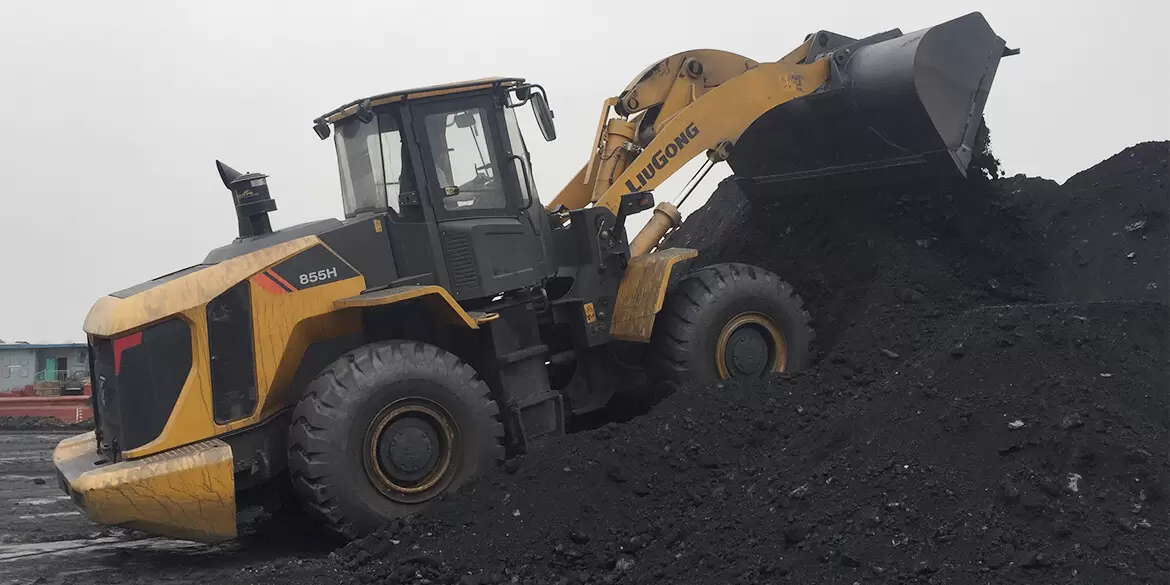

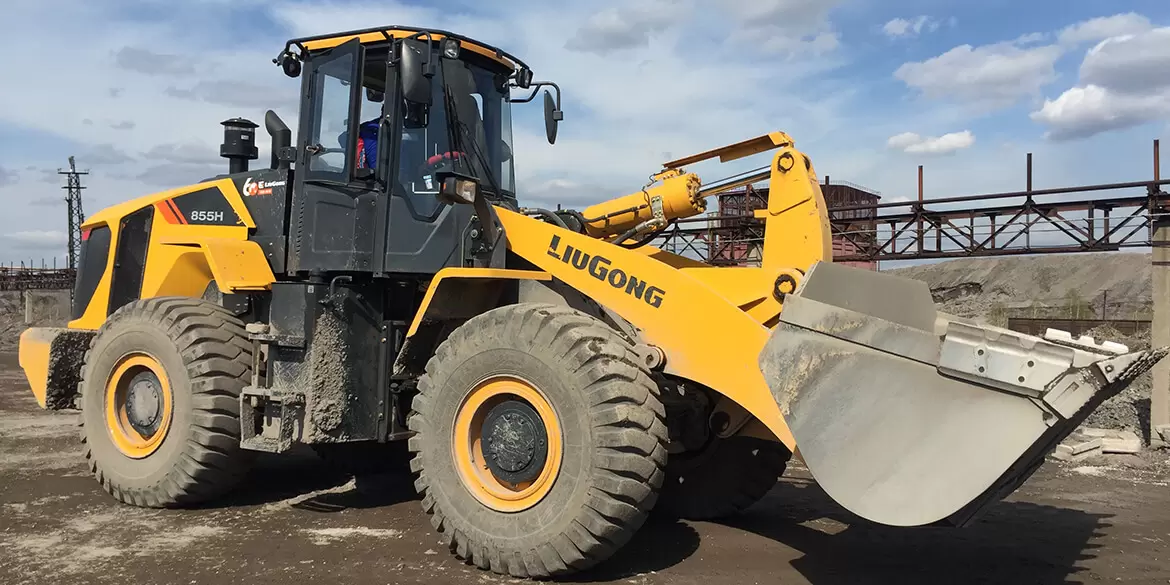

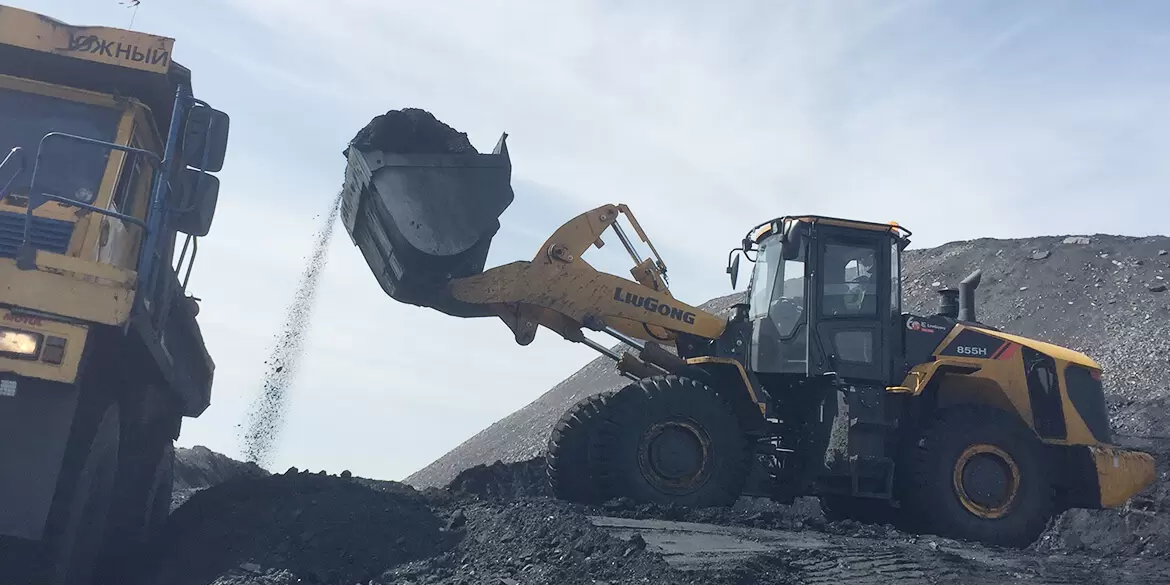

855H Wheel Loader
The LiuGong 855H wheel loader built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
855H Wheel Loaders
Operating Weight
16,600 kg
Rated Power
162 kW (217 hp / 220 ps) @ 2,000 rpm
Bucket Capacities
2.7-5.0 m³
Specifications
| Operating Weight | 16,600 kg |
|---|---|
| Rated Power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Raise | 5.3 s |
| Bucket Breakout Force | 165 kN |
| Dump Reach at Full Height Discharge | 1,168 mm |
| Emission Rating | Tier 2 / Stage II |
| Length with Bucket Down | 8,066 mm |
| Cab Height | 3,500 mm |
| Bucket Capacities | 2.7-5.0 m³ |
| Light Material Bucket | 5.6 m³ |
| Standard Bucket Capacity | 3.0 m³ |
| Total Hydraulic Cycle Time | 10.3 s |
| Tipping Load-Full Turn | 11,100 kg |
| Dump Clearance, Full Height Discharge | 3,037 mm |
| Model | Cummins 6LT9.3 |
| Width over Tires | 2,750 mm |
| Turning Radius, Outside of Tire | 6,086 mm |
| GP Bucket | 2.7-4.2 m³ |
| Rock Bucket | 2.5 m³, 2.7 m³ |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 16,600 kgStandard class — construction sites, aggregates and loading work.
- Bucket capacity 3.0 m³Sized for efficient loading cycles and production targets.
- Tipping load 11,100 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 855H is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 855H Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
