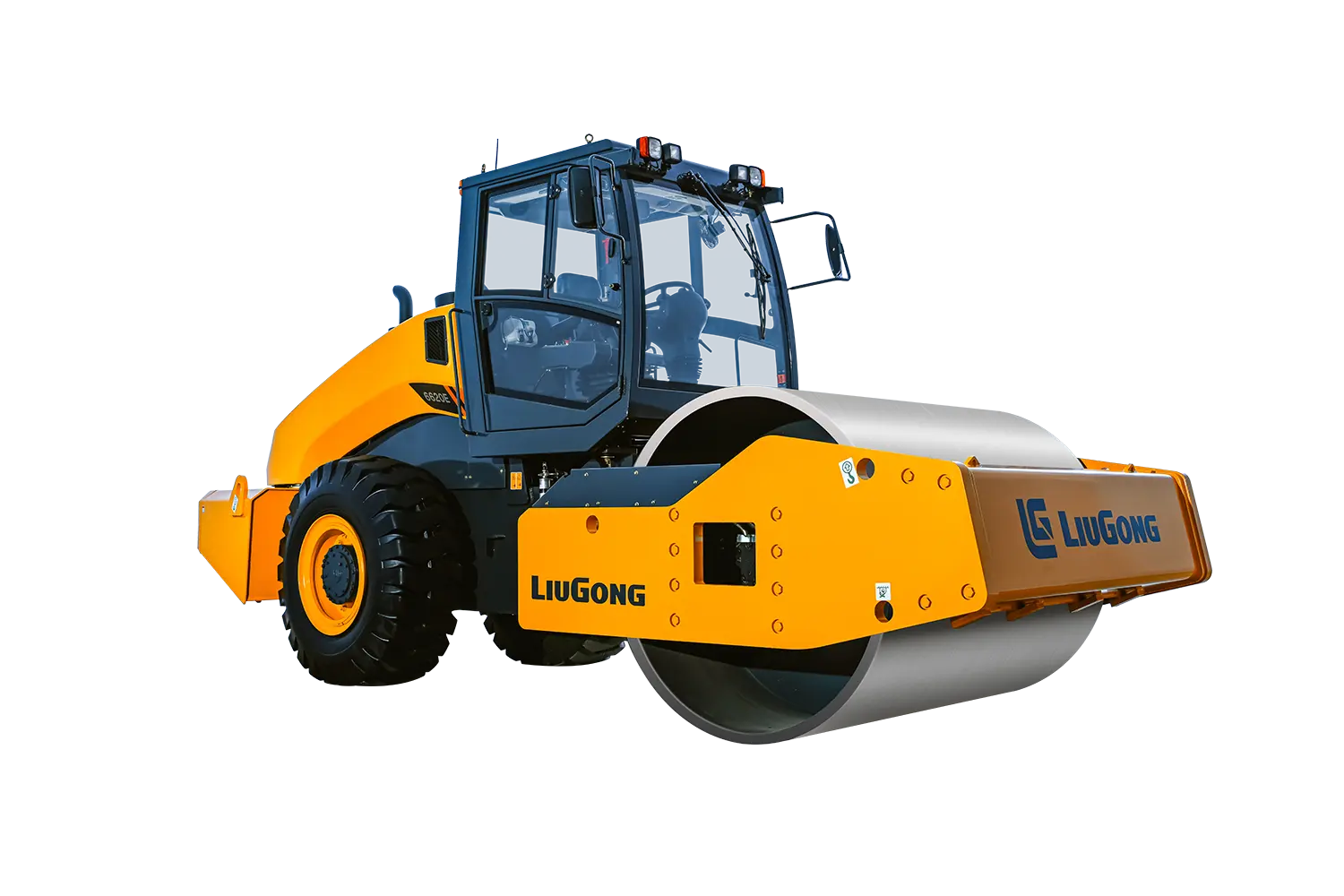

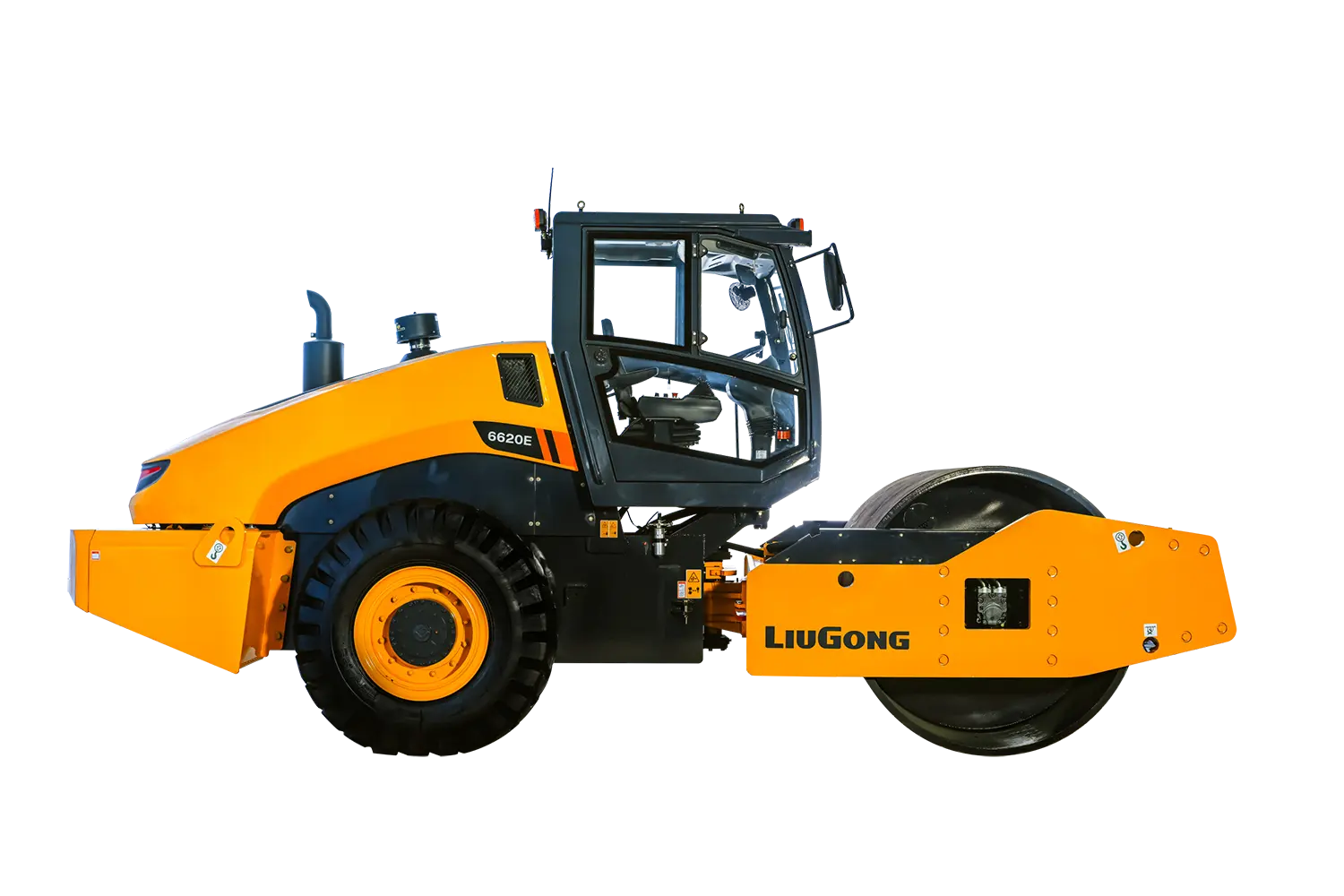

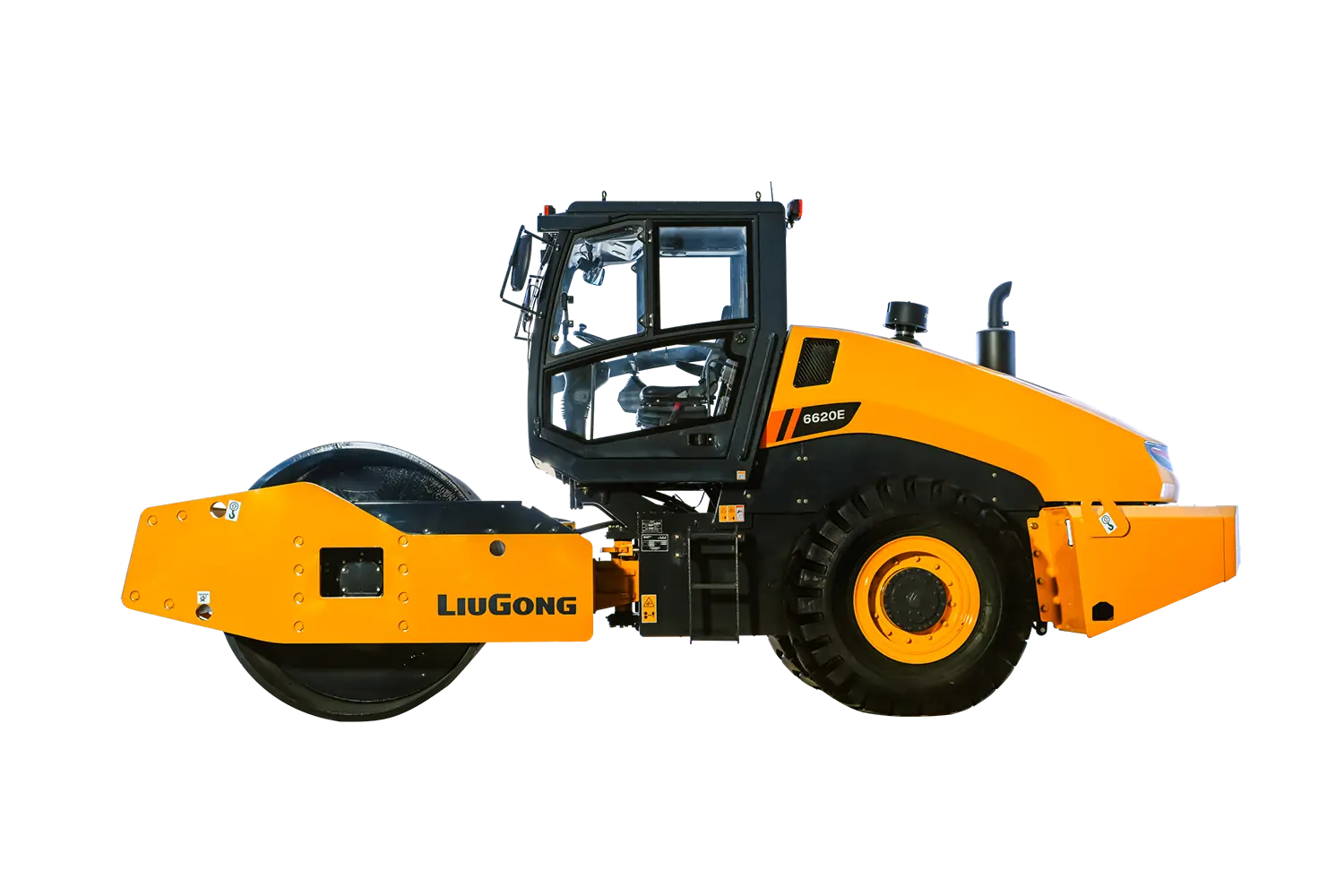

6620E Roller
The LiuGong 6620E compaction roller offers operating weight of 20,000 kg; rated power of 140 kW (188 hp / 190 ps) @ 2,200 rpm; tire pressure of 200–220 kPa. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6620E Rollers & Compaction
Operating Weight
20,000 kg
Rated Power
140 kW (188 hp / 190 ps) @ 2,200 rpm
Tire Pressure
200–220 kPa
Specifications
| Operating Weight | 20,000 kg |
|---|---|
| Tire Pressure | 200–220 kPa |
| Static Linear Load | 592 N/cm |
| Engine Model | Shangchai SC7H190.2G2 |
| Emission Standard | Tier 2 |
| Rated Power | 140 kW (188 hp / 190 ps) @ 2,200 rpm |
| Max Forward Speed (1st) | 3.8 km/h |
| Max Forward Speed (2nd) | 5 km/h |
| Steering Angle | 35° |
| Wheelbase | 3,250 mm |
| Min Outer Turning Radius | 7,000 mm |
| Overall Length | 6,475 mm |
| Overall Width | 2,340 mm |
| Overall Height | 3,150 mm |
| Tire Size | 23.1-26-12PR |
Key Features
- Operating weight 20,000 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6620E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6620E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
