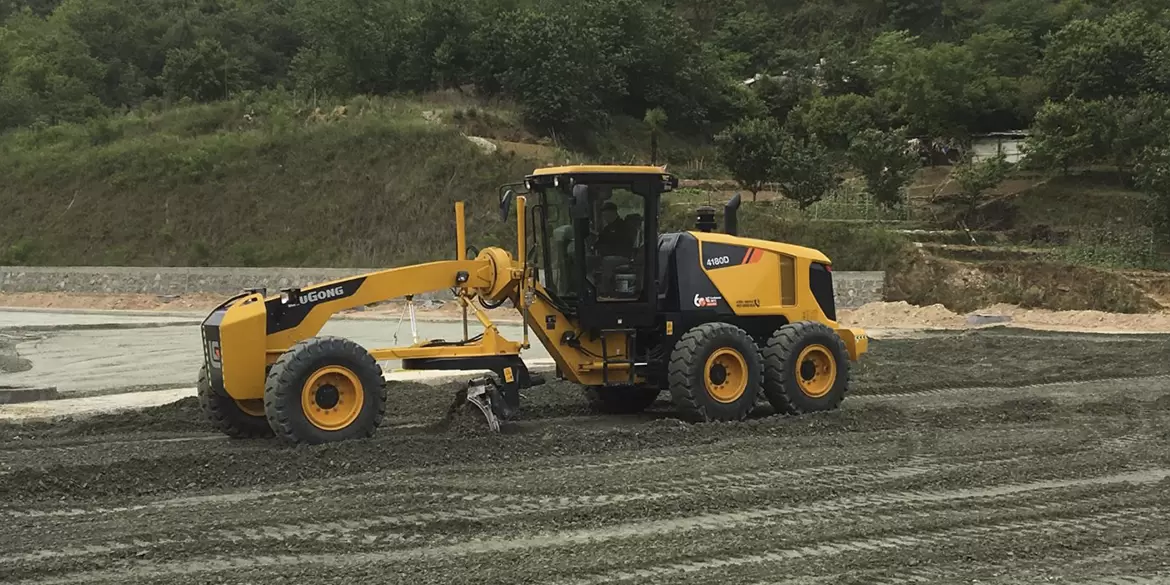

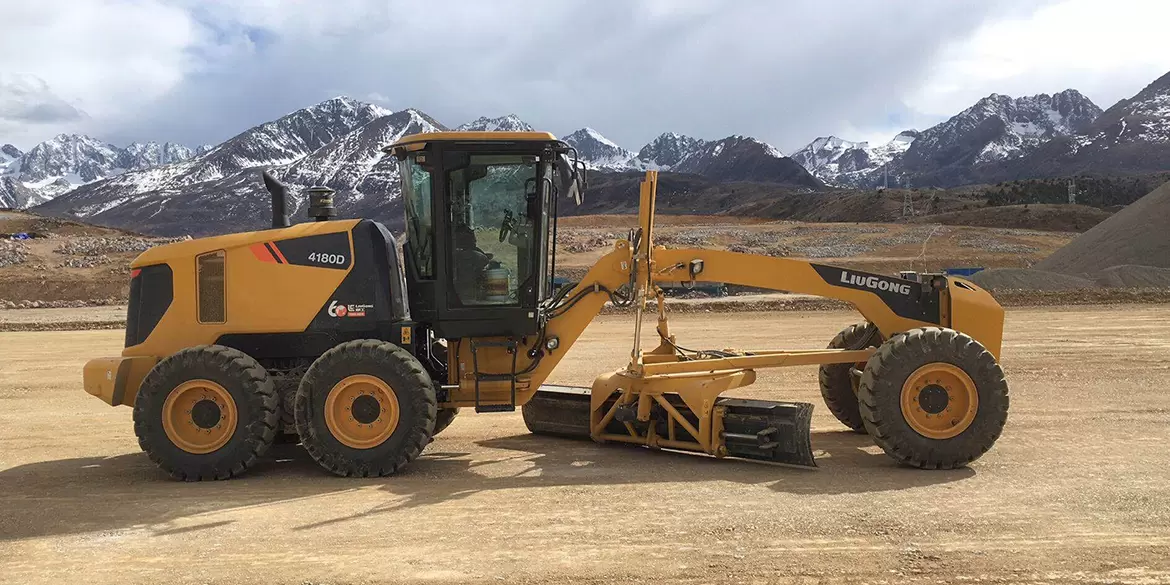

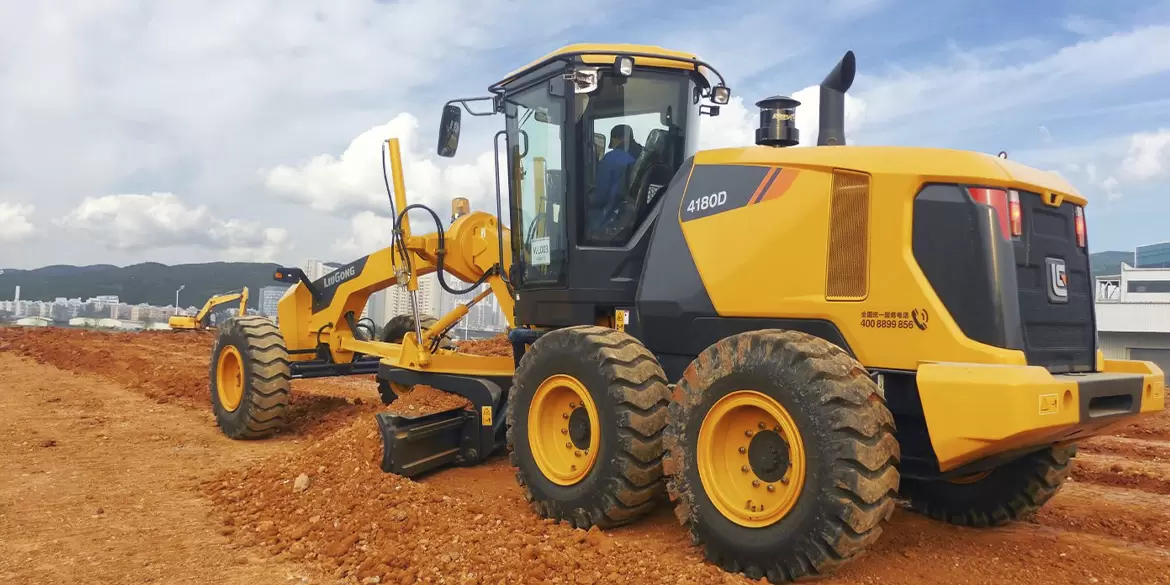

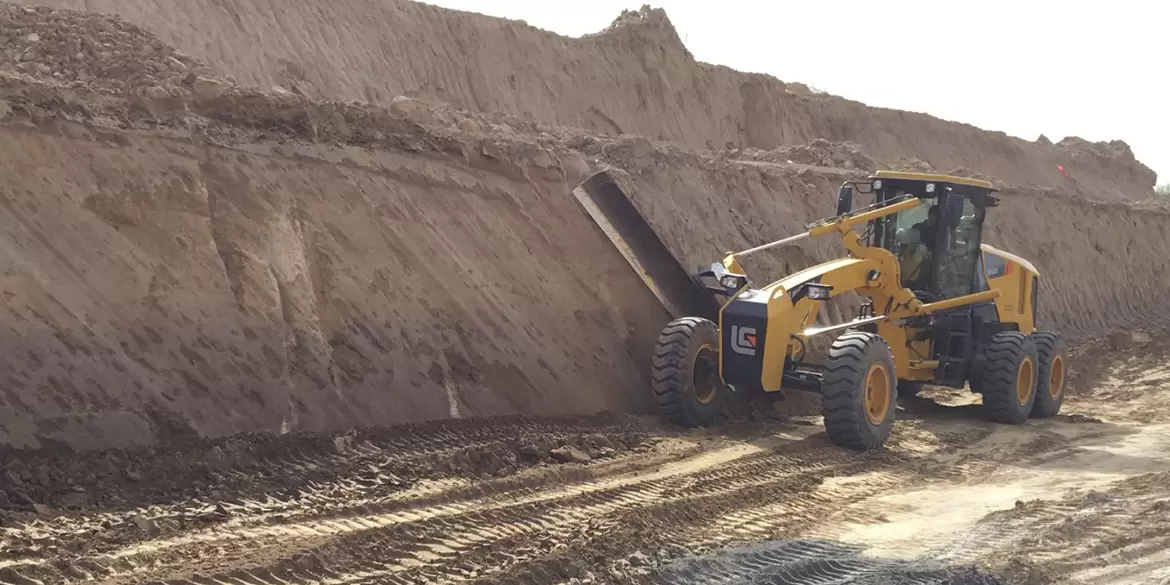

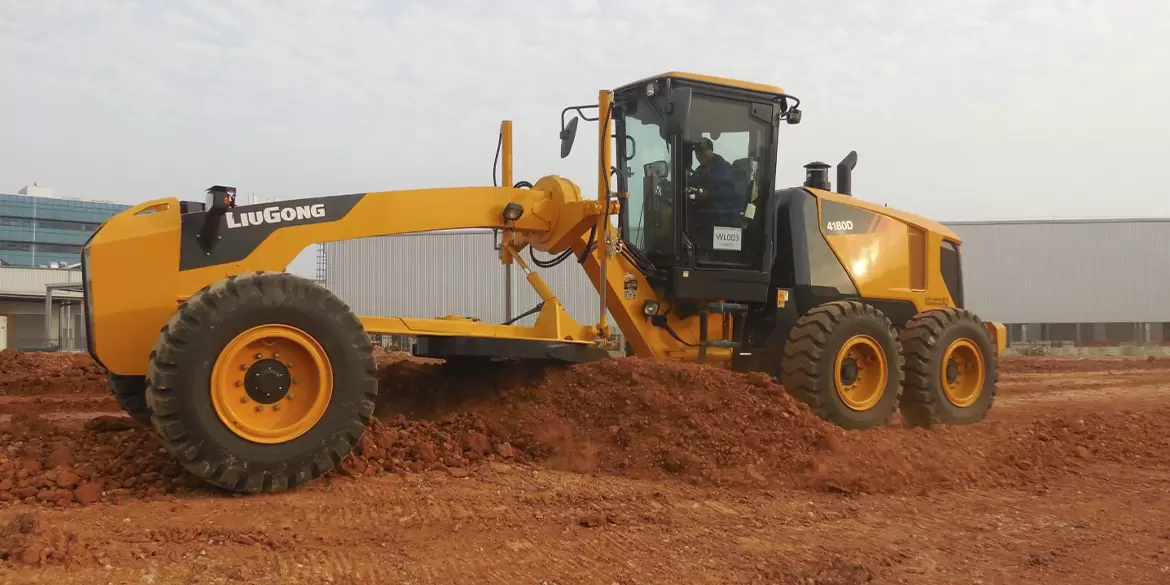

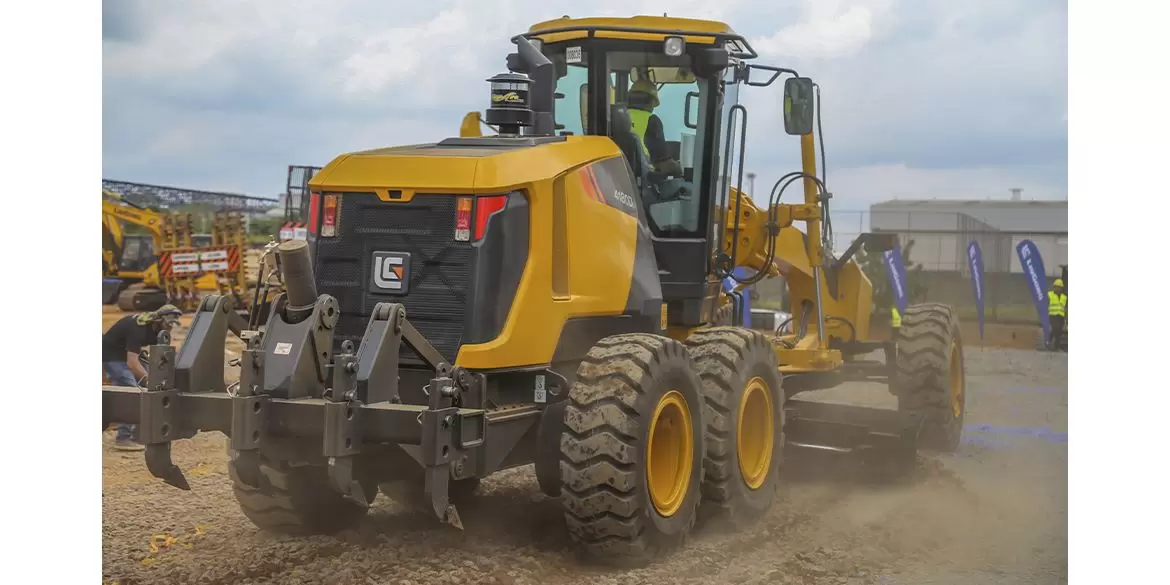

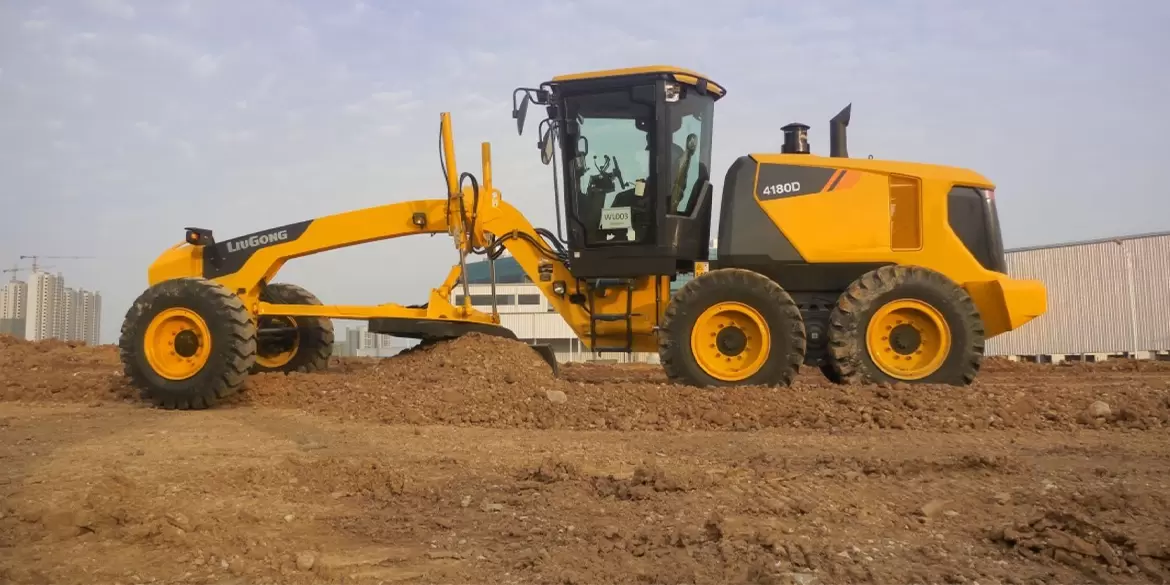

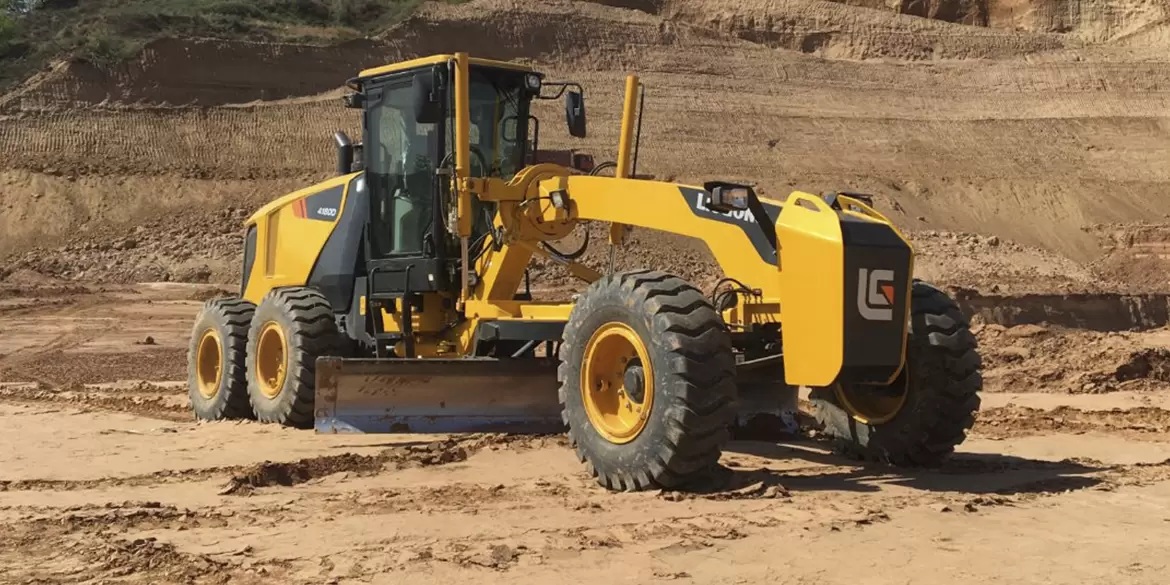

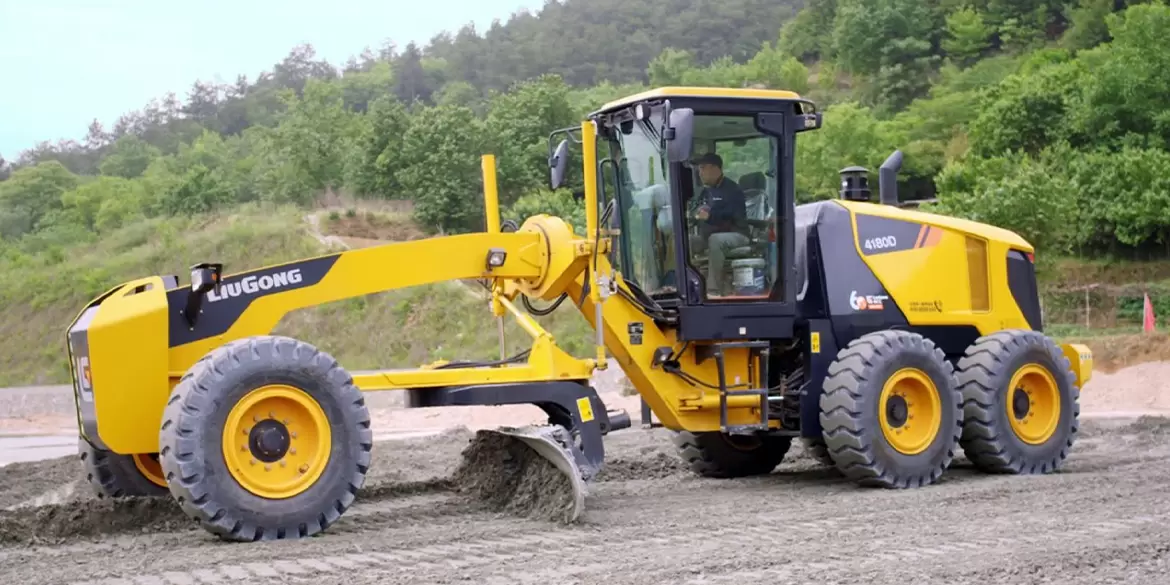

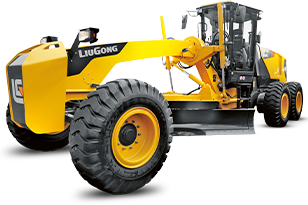

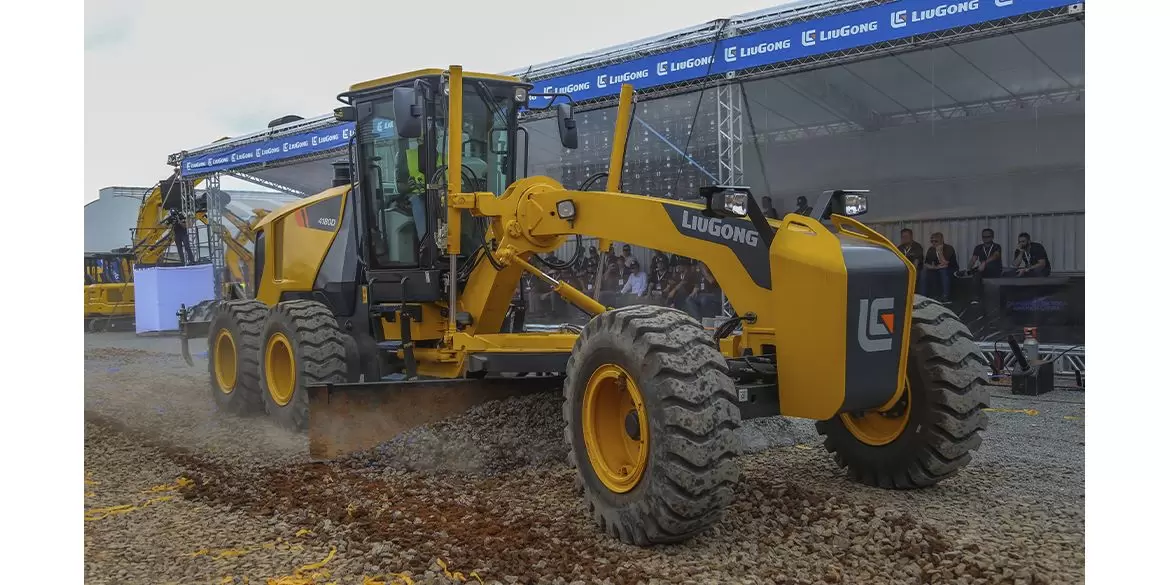

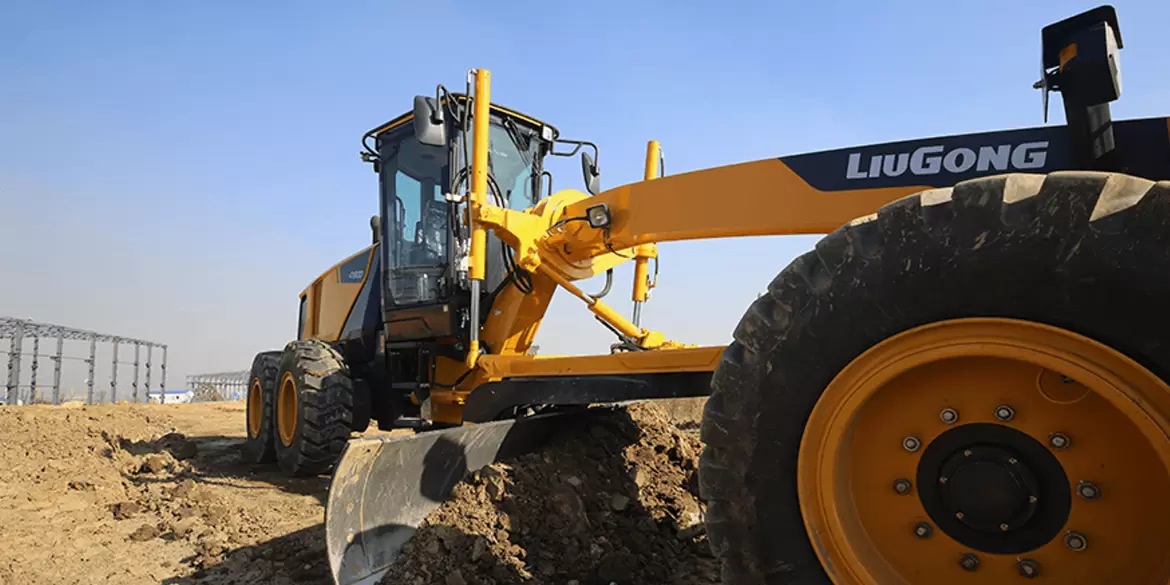

4180D Motor Grader

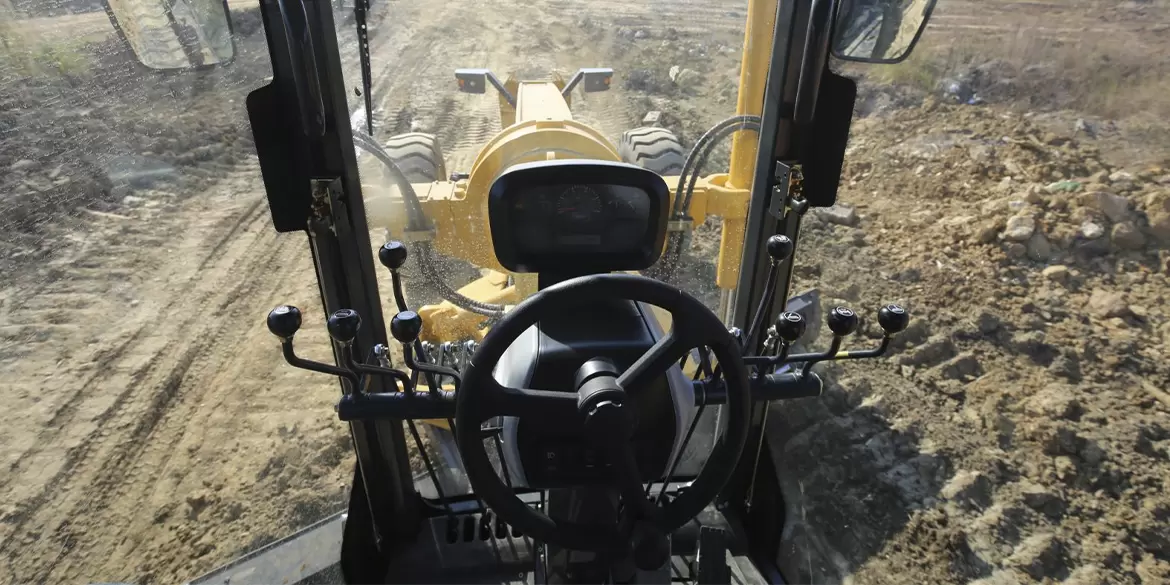

The LiuGong 4180D motor grader offers operating weight of 15,500 kg; rated power of 142 kW (190 hp) @ 2,200 rpm; front axle weight of 4,650 kg. Precise road grading, site levelling and surface finishing; reliable powertrain and comfortable, high-visibility operator station. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
4180D Engine Graders
Operating Weight
15,500 kg
Rated Power
142 kW (190 hp) @ 2,200 rpm
Front Axle Weight
4,650 kg
Specifications
| Operating Weight | 15,500 kg |
|---|---|
| Front Axle Weight | 4,650 kg |
| Rear Tandem Weight | 10,850 kg |
| Drawbar Pull | 86 kN |
| Engine Model | Cummins 6BTAA5.9-C190 |
| Emission Standard | Tier 2 / Stage II |
| Rated Power | 142 kW (190 hp) @ 2,200 rpm |
| Net Power | 115 kW (172 hp) @ 2,200 rpm |
| Transmission Type | Powershift |
| Speeds | 6F / 3R |
| Max Forward Speed | 42 km/h |
| Turning Radius | 7,200 mm |
| Articulation Angle | ±27° |
| Max Overall Height | 3,380 mm |
| Tire Width | 2,600 mm |
| Blade Width | 3,960 mm |
| Overall Length | 9,090 mm |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 15,500 kgClass-defining weight for application matching.
- Engine power 115 kW (172 hp) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 4180D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 4180D Motor Grader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
