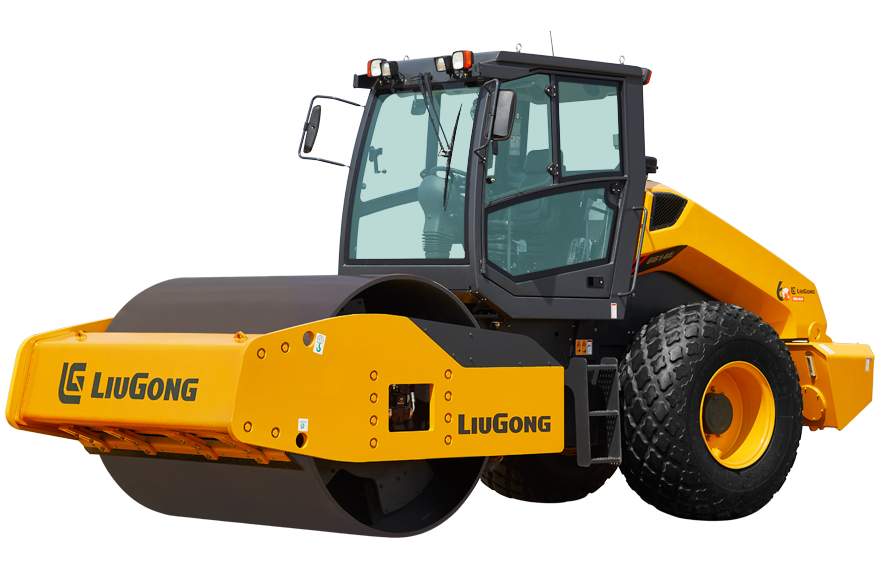

6614E Roller
The LiuGong 6614E compaction roller offers rated power of 142 kW (190 hp / 193 ps) @ 2,000 rpm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6614E Rollers & Compaction
Operating Mass
1,4000 kg
Rated Power
142 kW (190 hp / 193 ps) @ 2,000 rpm
Mass On Drive Axle
6,000 kg
Specifications
| Operating Mass | 1,4000 kg |
|---|---|
| Mass On Drive Axle | 6,000 kg |
| Model | Cummins 6BTAA5.9-C190 |
| Rated Power | 142 kW (190 hp / 193 ps) @ 2,000 rpm |
| Nominal Amplitude | 2.0/1.2 mm |
| Drum Diameter | 1,555 mm |
| 1,555 mm | 2nd Maximum Speed, fwd |
| 2nd Maximum Speed, fwd | 5.6 km/h |
| 5.6 km/h | 4th Maximum Speed, fwd |
| 4th Maximum Speed, fwd | 12 km/h |
| Min. GroundClearance | 470 mm |
| Min. Outside Turning Radius | 6,500 mm |
| Overall Width | 2,280 mm |
| Mass On Vibrating Drum | 8,000 kg |
| Front Drum Static Linear Load | 368 N/cm |
| Vibration Frequency | 30/33 Hz |
| Centrifugal Force | 300/220 kN |
| 300/220 kN | 1st Maximum Speed, fwd |
| 1st Maximum Speed, fwd | 4.2 km/h |
| 4.2 km/h | 3rd Maximum Speed, fwd |
| 3rd Maximum Speed, fwd | 6.8 km/h |
| Theoretical Gradeability | 50% |
| Wheelbase | 2,980 mm |
| Overall Length | 6,000 mm |
| Overall Height | 3,080 mm |
Key Features
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6614E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6614E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
