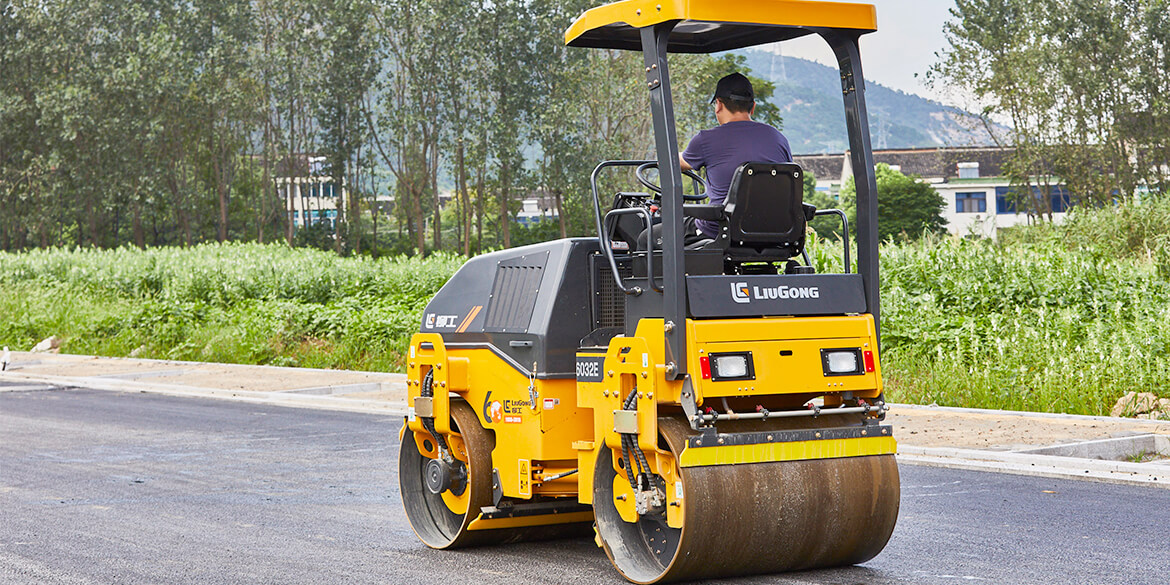

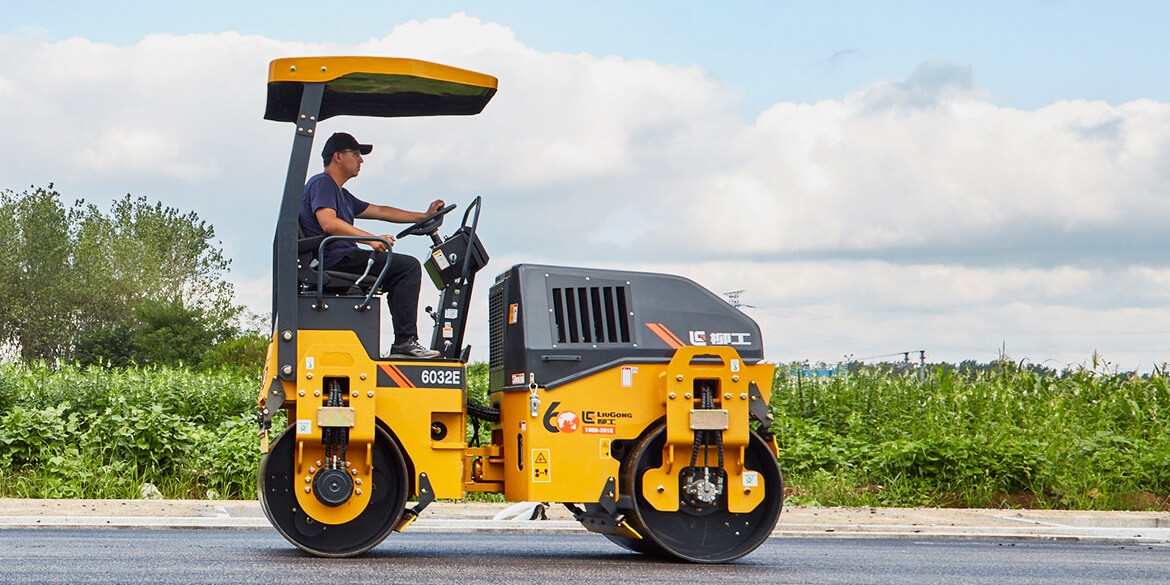

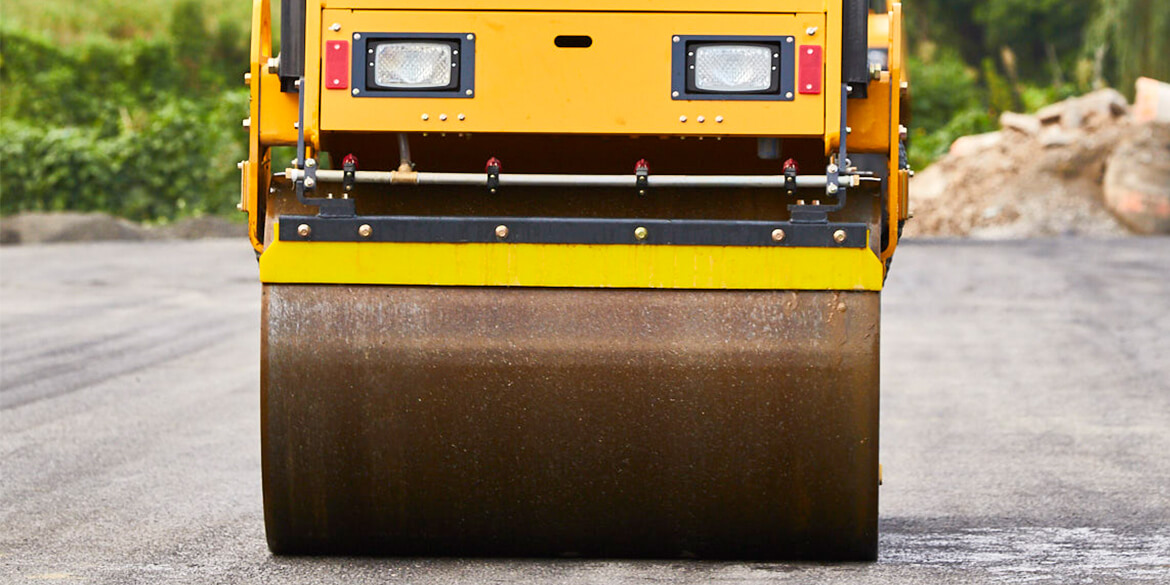

6032E Roller
The LiuGong 6032E compaction roller offers operating weight of 3,200 kg; rated power of 27.3 kW (37 hp) @ 2,600 rpm; weight on vibratory drum of 1,620 kg. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6032E Rollers & Compaction
Operating Weight
3,200 kg
Rated Power
27.3 kW (37 hp) @ 2,600 rpm
Weight on Vibratory Drum
1,620 kg
Specifications
| Operating Weight | 3,200 kg |
|---|---|
| Weight on Vibratory Drum | 1,620 kg |
| Weight on Drive Axle | 1,620 kg |
| Front Drum Static Linear Load | 135 N/cm |
| Engine Model | Perkins 403D-15T |
| Emission Standard | Tier 3 |
| Rated Power | 27.3 kW (37 hp) @ 2,600 rpm |
| Vibration Frequency | 60 Hz |
| Nominal Amplitude | 0.45 mm |
| Centrifugal Force | 33.5 kN |
| Drum Diameter | 1,555 mm |
| Max Forward Speed (1st) | 10 km/h |
| Steering Angle | 30° |
| Gradeability | 30% |
| Wheelbase | 1,827 mm |
| Min Outer Turning Radius | 4,050 mm |
| Overall Length | 2,625 mm |
| Overall Width | 1,336 mm |
| Overall Height (folded ROPS) | 1,936 mm |
| Roller Width | 1,200 mm |
| Roller Diameter | 595 mm |
| Drum Shell Thickness | 30 mm |
| Tires (Combined) | 7.5-15-12 PR |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 3,200 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6032E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6032E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
