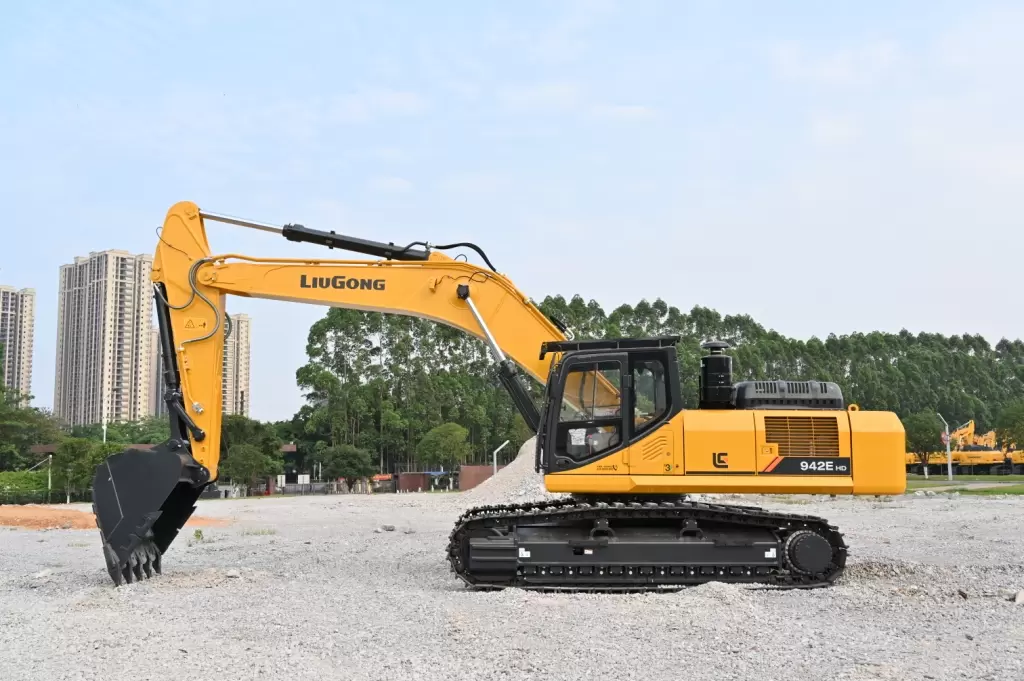

942EHD Excavator
The LiuGong 942EHD crawler excavator offers operating weight of 42000 kg; std. bucket capacity of 2.1 m³; engine power of 214 kW (287 hp) @ 2100 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
942EHD Excavators
Operating weight
42000 kg
Std. Bucket capacity
2.1 m³
Engine power
214 kW (287 hp) @ 2100 rpm
Specifications
| Operating weight | 42000 kg |
|---|---|
| Std. Bucket capacity | 2.1 m³ |
| Travel speed(Low) | 2.9 km/h |
| Arm breakout force | 209 kN |
| Bucket breakout force | 270 kN |
| Track shoe width (std) | 600 mm |
| Arm | 2900 mm |
| Digging reach on ground | 10527 mm |
| Vertical wall digging depth | 5085 mm |
| Dumping height | 6655 mm |
| Model | Cummins L9PLUS |
| System maximum flow | 2×351 L/min |
| Engine power | 214 kW (287 hp) @ 2100 rpm |
| Travel speed(High) | 5.4 km/h |
| Maximum swing speed | 9.8 rpm |
| Arm breakout force Power boost | 227 kN |
| Bucket breakout force Power boost | 290 kN |
| Boom | 6400 mm |
| Digging reach | 10728 mm |
| Digging depth | 6890 mm |
| Cutting height | 9818 mm |
| Minimum front swing radius | 4385 mm |
| System pressure | 34.3 MPa |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 42000 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 214 kW (287 hp) @ 2100 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 2.1 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 942EHD is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 942EHD Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
