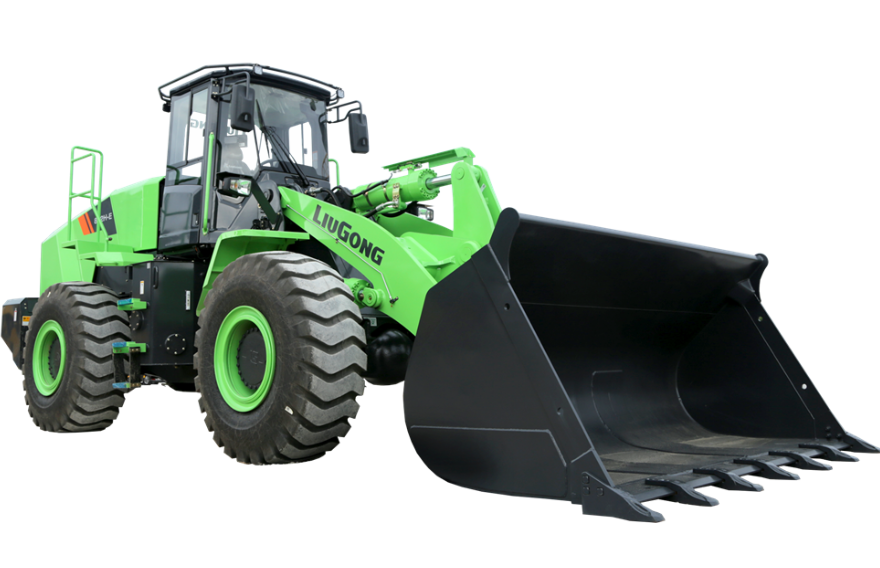

862HE Wheel Loader
The LiuGong 862HE wheel loader offers operating weight of 24,264 kg; rock bucket capacity of 4.2 m³; battery capacity of 350 kWh. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
862HE Wheel Loaders
Operating Weight
24,264 kg
Rock Bucket Capacity
4.2 m³
Battery Capacity
350 kWh
Specifications
| Operating Weight | 24,264 kg |
|---|---|
| Battery Capacity | 350 kWh |
| Max Power | 160 kW |
| Load Capacity | 6,500 kg |
| Total Load Cycle | 9.5 s |
| Static Tipping Load (Straight) | 16,000 kg |
| Static Tipping Load (Full Turn) | 13,900 kg |
| Bucket Breakout Force | 190 kN |
| Bucket Pivot Height | 4,436 mm |
| Dump Height | 3,200 mm |
| Dump Reach | 1,183 mm |
| Battery Type | LFP |
| Recommended Charger | 240–300 kW |
| Cooling System | Liquid cooled with intelligent temp control |
| Transmission | Electric-controlled planetary powershift |
| Brakes | Wet disc brake |
| Transport Length | 8,912 mm |
| Transport Width | 2,950 mm |
| Transport Height | 3,550 mm |
| Outer Turning Radius | 7,408 mm |
| Rock Bucket Capacity | 4.2 m³ |
| Cab Type | ROPS / FOPS |
| Telematics | i-Link |
Key Features
- Operating weight 24,264 kgStandard class — construction sites, aggregates and loading work.
- Bucket capacity 4.2 m³Sized for efficient loading cycles and production targets.
- Tipping load 16,000 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 862HE is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 862HE Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
