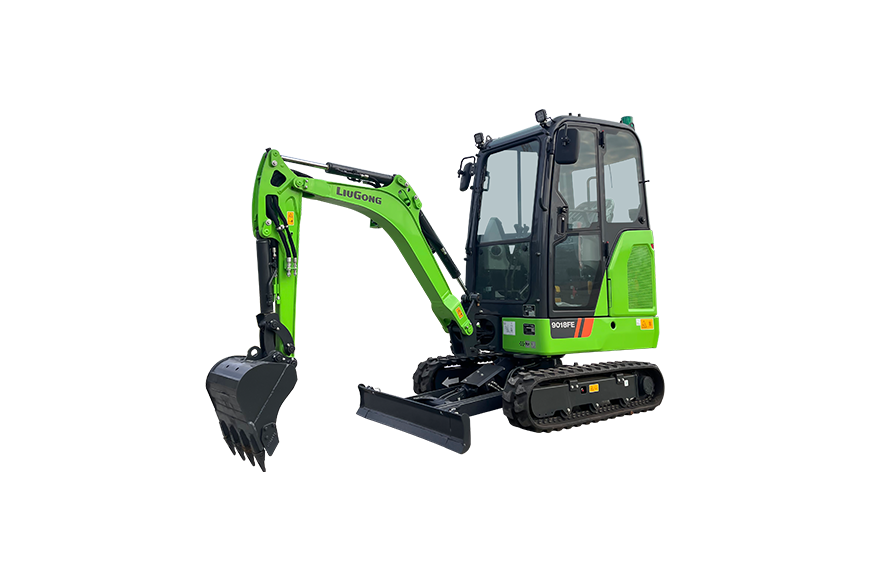

9018FE Excavator
The LiuGong 9018FE crawler excavator offers operating weight with cab of 1900 kg; engine power of 13.4 kW (18 hp) @ 2,200 rpm; operating weight with canopy of 1800 kg. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9018FE Excavators
Operating weight with cab
1900 kg
Engine power
13.4 kW (18 hp) @ 2,200 rpm
Operating weight with canopy
1800 kg
Specifications
| Operating weight with cab | 1900 kg |
|---|---|
| Engine power | 13.4 kW (18 hp) @ 2,200 rpm |
| Travel speed(High) | 4.5 km/h |
| Maximum swing speed | 9.5 rpm |
| Bucket breakout force | 16 kN |
| Shipping width | 980 / 1290 mm |
| Track shoe width (std) | 230 mm |
| Arm | 1070 mm |
| Digging reach on ground | 3850 mm |
| Vertical wall digging depth | 1820 mm |
| Dumping height | 2370 mm |
| Dozer-up | 240 mm |
| Swing boom left rotation | 72 ° |
| Model | Yanmar 3TNV80F-SSLY |
| System maximum flow | 55 L/min ( 14.5 gal/min) |
| Operating weight with canopy | 1800 kg |
| Std. Bucket capacity | 0.045 m³ |
| Travel speed(Low) | 2.7 km/h |
| Arm breakout force | 9 kN |
| Shipping length | 3707 mm |
| Shipping height | 2350 mm |
| Boom | 1685 mm |
| Digging reach | 3910 mm |
| Digging depth | 2290 mm |
| Cutting height | 3385 mm |
| Minimum front swing radius | 1660 mm |
| Dozer-down | 240 mm |
| Swing boom right rotation | 58 ° |
| Emission | EU Stage V / Tier 4f |
| System pressure | 21 MPa |
Key Features
- Operating weight 1900 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 13.4 kW (18 hp) @ 2,200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.045 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9018FE is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
