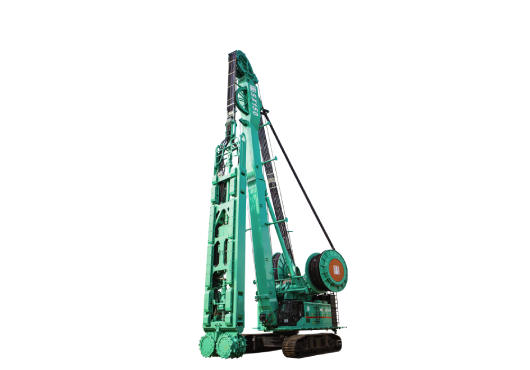

SX150 Trench Cutter
The LiuGong SX150 trench cutters delivers output torque of 2*150 kN.m; wall width of 0.8-2 m; wall depth of 85-125 m. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
SX150 Trench Cutters
Output torque
2*150 kN.m
Wall width
0.8-2 m
Wall depth
85-125 m
Key Features
- Suitasble for various soil condition
- Airlift for slage
- Accurate slotting verticality
- Cut and joint process
- Low noise, low vibration and less pollution
- Separation of slag and recycling of bentonite
- Humanized control system
- Cutting and Grabing mulit function combination.
Specifications
| Max. Depth | 125 (Standard 85) m |
|---|---|
| Width | 800-2,000 mm |
| Length | 2,800 mm |
| Torque | 2x150 kN.m |
| Max. speed | 25 r/min |
| Height | 12.7 m |
| Correction Plate | 12 units |
| Correction Stroke | 130 mm |
| Rotation Angle | ±90° |
| Tube Diameter | 152 mm |
| Pump Displacement | 450 m3/h |
| Max. Pulling Force | 80 t |
| Wire Rope Diameter | 40 mm |
| Max. Pulling Force | 11 t |
| Wire Rope Diameter | 20 mm |
| Feed Stroke | 700 mm |
| Min. Feed Speed | 0.5 cm/min |
| Model | VOLVO TAD1643VE-B |
| Power | 565/1,900 kW/rpm |
| Emission Standard | CN III |
Applications
The SX150 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
