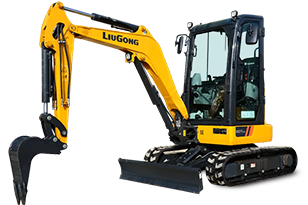

9027F Excavator
The LiuGong 9027F crawler excavator offers operating weight of 2,750 kg; engine power of 15.2 kW (20.4 hp) @ 2,500 rpm; bucket capacity of 0.05–0.1 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9027F Excavators
Operating Weight
2,750 kg
Engine Power
15.2 kW (20.4 hp) @ 2,500 rpm
Bucket Capacity
0.05–0.1 m³
Specifications
| Operating Weight | 2,750 kg |
|---|---|
| Engine Power | 15.2 kW (20.4 hp) @ 2,500 rpm |
| Bucket Capacity | 0.05–0.1 m³ |
| Travel Speed (High) | 4.5 km/h |
| Swing Speed | 9.5 rpm |
| Arm Digging Force | 12 kN |
| Bucket Digging Force | 20 kN |
| Transport Length | 4,160 mm |
| Transport Width | 2,490 mm |
| Transport Height | 2,440 mm |
| Track Shoe Width (Std) | 300 mm |
| Boom Length | 2,080 mm |
| Arm Length | 1,300 mm |
| Digging Reach | 4,757 mm |
| Max Digging Reach | 4,648 mm |
| Max Ground Reach | 2,857 mm |
| Vertical Wall Dig Depth | 2,312 mm |
| Max Cutting Height | 4,365 mm |
| Max Loading Height | 3,067 mm |
| Engine Model | Cummins |
| Emission Standard | Tier 4 / Stage IIIA |
| Main Pump Total Flow | 86.4 L/min |
| System Pressure | 21.6 MPa |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 2,750 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 15.2 kW (20.4 hp) @ 2,500 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.05–0.1 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9027F is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
Get a Quote for 9027F Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
