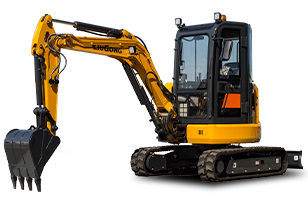

9035E Excavator

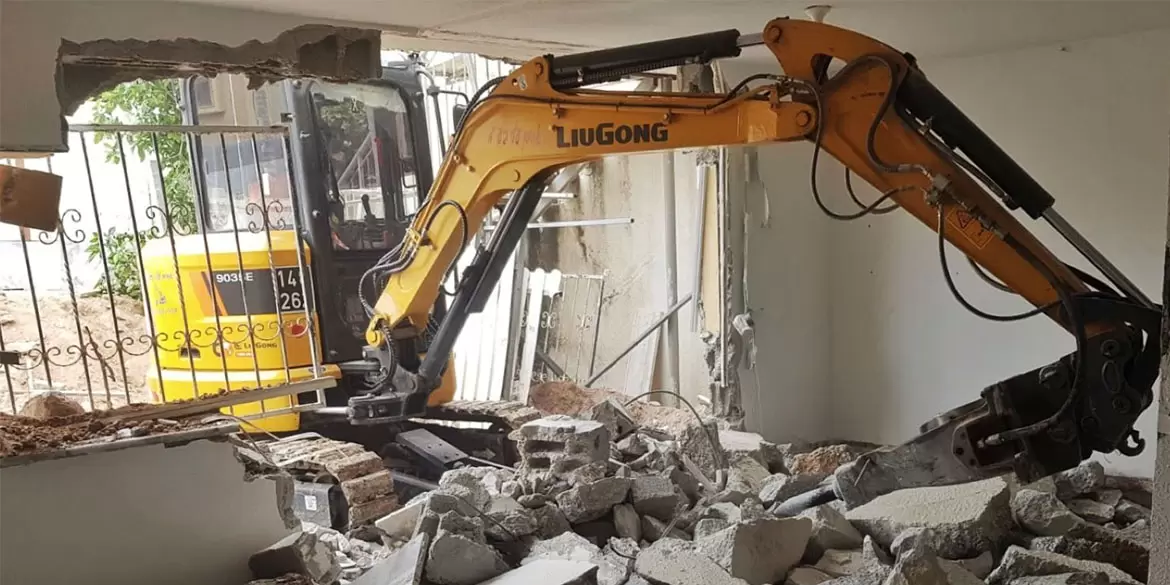

The LiuGong 9035E crawler excavator offers engine power of 21.2 kW (29 hp) @ 2,400 rpm; bucket capacity of 0.06–0.11 m³; swing speed of 10 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9035E Excavators
Engine Power
21.2 kW (29 hp) @ 2,400 rpm
Bucket Capacity
0.06–0.11 m³
Swing Speed
10 rpm
Specifications
| Engine Power | 21.2 kW (29 hp) @ 2,400 rpm |
|---|---|
| Bucket Capacity | 0.06–0.11 m³ |
| Swing Speed | 10 rpm |
| Arm Digging Force | 20 kN |
| Bucket Digging Force | 30 kN |
| Transport Width | 1,700 mm |
| Transport Height | 2,500 mm |
| Boom | 2,450 mm |
| Arm | 1,320 / 1,700 mm |
| Digging Reach | 5,385 / 5,715 mm |
| Cutting Height | 4,710 / 4,843 mm |
| Engine Model | Yanmar 3TNV88-BPLY |
| Emission Standard | Tier 3 / EU Stage III |
| Max System Flow | 92.4 L/min |
| System Pressure | 24.5 MPa |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Engine power 21.2 kW (29 hp) @ 2,400 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.06–0.11 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications

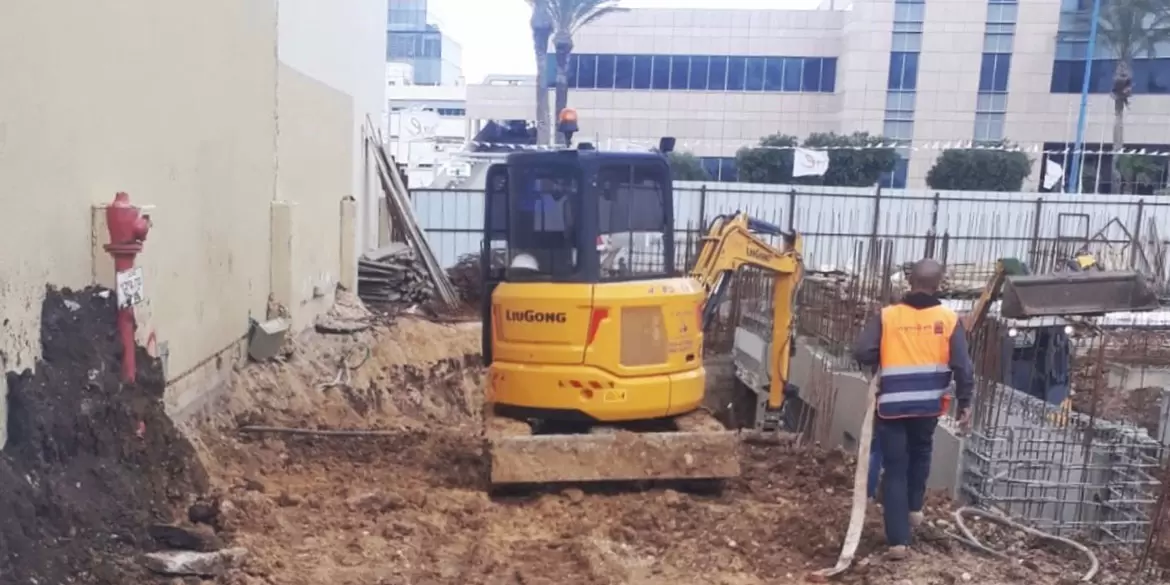

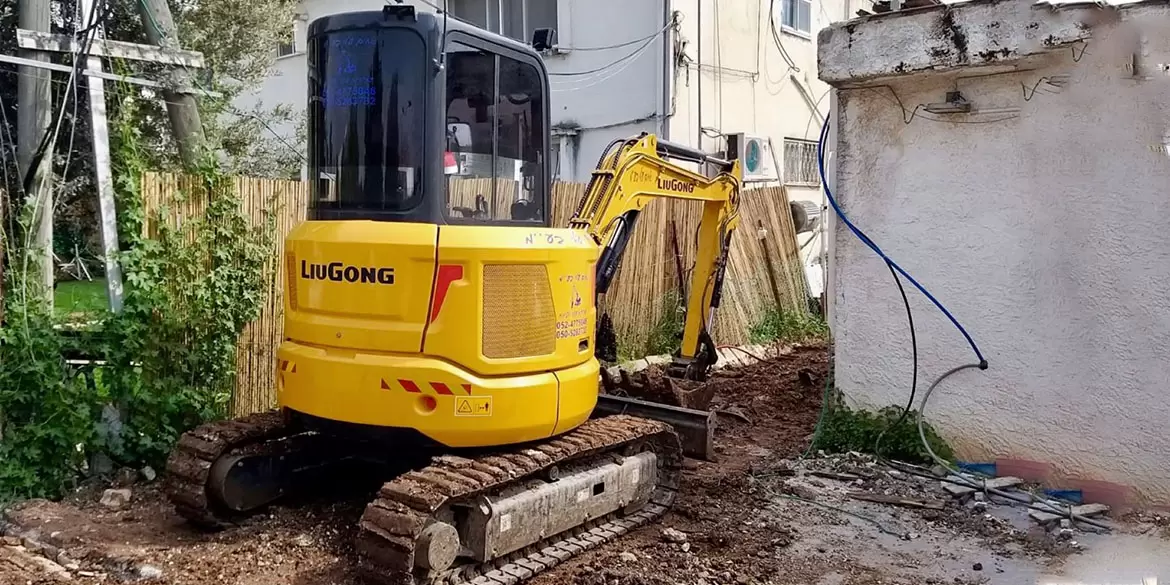

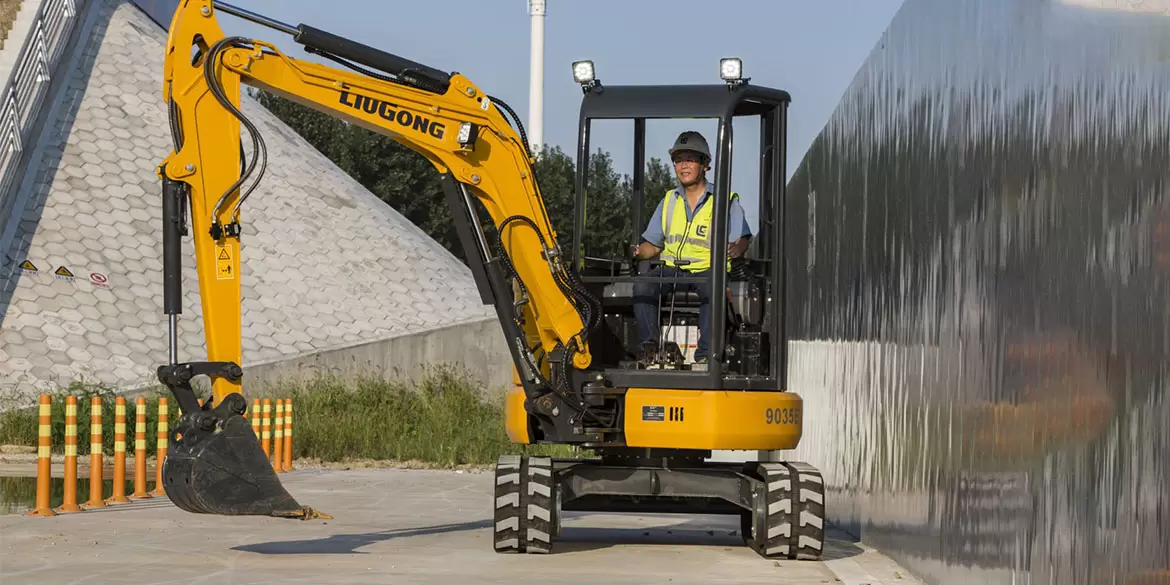

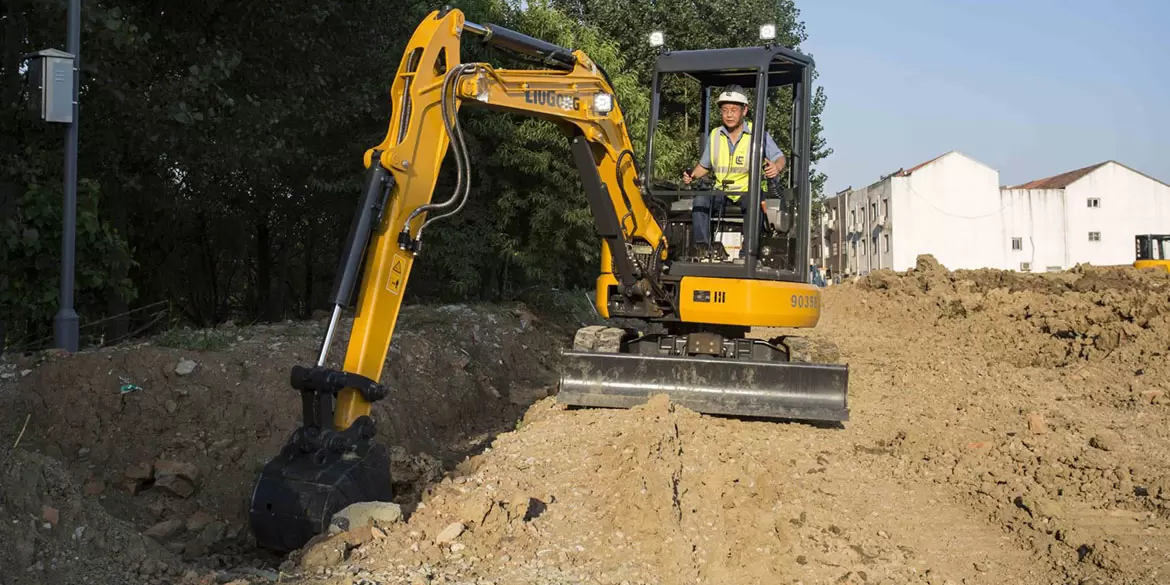

The 9035E is suited to Building foundations, roadworks, drainage and general earthmoving. Tell us your application and we will recommend the right configuration.
