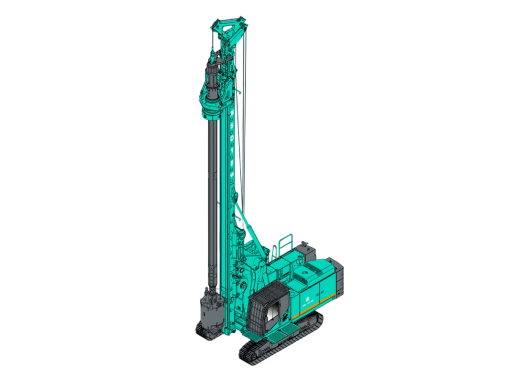

SD18W Drilling Rig
The LiuGong SD18W drilling rigs delivers working weight of 62,000kg; max.drilling diameter of 1,200mm; max.drilling depth of 4-44/5-56. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
SD18W Drilling Rigs
Working weight
62,000kg
Max.drilling diameter
1,200mm
Max.drilling depth
4-44/5-56
Key Features
- High Efficiency & Energy SavingLarge torque &, high rotating speed of power head, equipped with power control &, distribution technology for efficient &, energy-saving construction.
- Easy TransportationIntegrated transportation of main machine with mast, convenient and reliable for assembly, disassembly and relocation.
- Intelligent EfficiencyIntelligent construction system improves construction efficiency and reduces operator fatigue.
Specifications
Upper carrier: JS60
| Engine | B7 Euro III |
|---|---|
| Rated/Max.power | 194@2,200 kW@rpm |
| Hydraulic system flow | 2×247+85.5 L/min |
| Hydraulic system pressure | 34.3 Mpa |
| Capacity of fuel tank | 450 L |
| Capacity of hydraulic oil tank | 380 L |
Retractable undercarriage: JT50A
| Width of track shoe | 700 mm |
|---|---|
| Length of crawler | 4,900 mm |
| Width of crawler (retract /extend) | 2,980/4,100 mm |
| Traction force | 600 kN |
| Travel speed | 2 km/h |
Rotary head
| Rotary torque | 180 kN·m |
|---|---|
| Rotary speed | 6-60 r/min |
Main winch
| Max.single line pulling force | 160 kN |
|---|---|
| Wire rope diameter | 26 mm |
| Max.speed | 60 mm |
Auxiliary winch
| Single line pulling force | 80 kN |
|---|---|
| Wire rope diameter | 20 mm |
| Max.speed | 35 m/min |
Crowd winch system
| Stroke | 13,000 mm |
|---|---|
| Crowd force | 250 kN |
| Pulling force | 250 kN |
Applications
The SD18W is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
