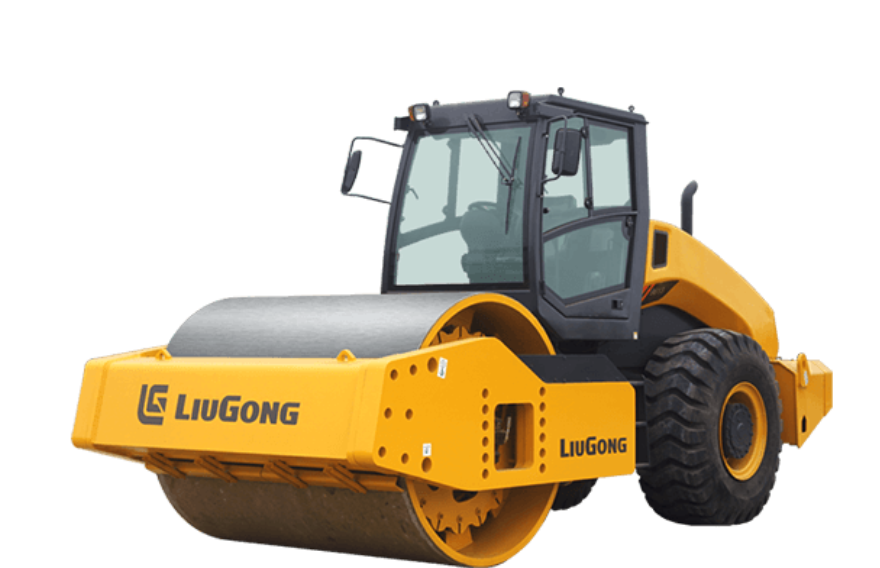

6630E Roller
The LiuGong 6630E compaction roller offers rated power of 177 kW (241hp) @ 2200 rpm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6630E Rollers & Compaction
Operating Mass
30,000 kg
Rated Power
177 kW (241hp) @ 2200 rpm
Mass On Rear Axle
11,400 kg
Specifications
| Operating Mass | 30,000 kg |
|---|---|
| Mass On Rear Axle | 11,400 kg |
| Rear Drum Static Linear Load | 286 N/cm |
| Vibration Frequency | 28/32 Hz |
| Centrifugal Force | 520/400 kN |
| 520/400 kN | 1st Maximum Speed, fwd |
| 1st Maximum Speed, fwd | 4.1 km/h |
| 4.1 km/h | 3rd Maximum Speed, fwd |
| 3rd Maximum Speed, fwd | 6.2 km/h |
| Theoretical Gradeability | 45% |
| Wheelbase | 3,250 mm |
| Overall Length | 6,680 mm |
| Overall Width | 2,580 mm |
| Mass On Front Drum | 18,600 kg |
| Front Drum Static Linear Load | 845 N/cm |
| Model | Shangchai SC9DK240G3 |
| Rated Power | 177 kW (241hp) @ 2200 rpm |
| Nominal Amplitude | 2.1/1.2 mm |
| Drum Diameter | 1,700 mm |
| 1,700 mm | 2nd Maximum Speed, fwd |
| 2nd Maximum Speed, fwd | 5.6 km/h |
| 5.6 km/h | 4th Maximum Speed, fwd |
| 4th Maximum Speed, fwd | 10.4 km/h |
| Min. Ground Clearance | 500 mm |
| Min. Outside Turning Radius | 7,000 mm |
| Overall Height | 3,150 mm |
Key Features
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6630E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6630E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
