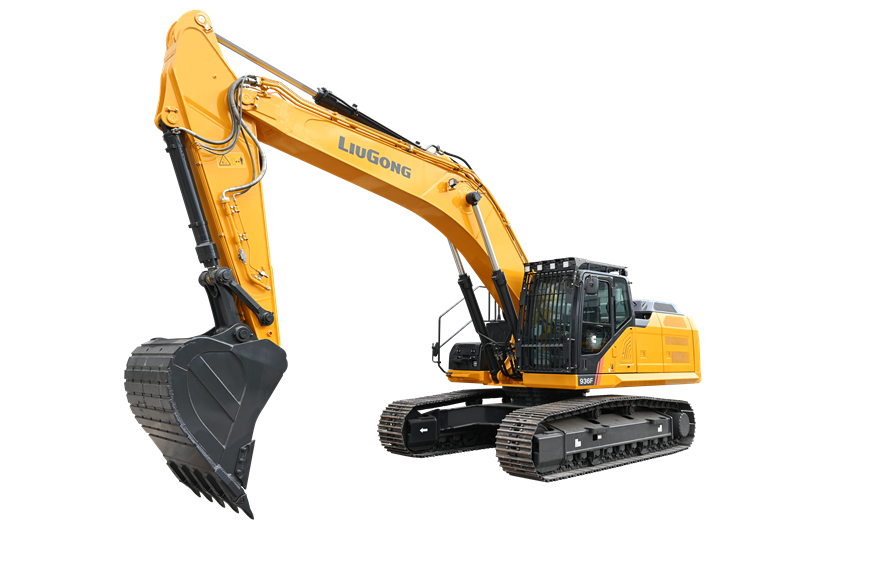

939F Excavator
The LiuGong 939F crawler excavator offers operating weight of 39800 kg; std. bucket capacity of 1.8 m³; engine power of 231 kW @ 2100 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
939F Excavators
Operating weight
39800 kg
Std. Bucket capacity
1.8 m³
Engine power
231 kW @ 2100 rpm
Specifications
| Operating weight | 39800 kg |
|---|---|
| Std. Bucket capacity | 1.8 m³ |
| Travel speed (Low) | 3.4 km/h |
| Arm breakout force | 196 kN |
| Shipping length | 11267 mm |
| Shipping height | 3800 mm |
| Boom | 6400 mm |
| Digging reach | 11100 mm |
| Digging depth | 7340 mm |
| Cutting height | 10240 mm |
| Minimum front swing radius | 4465 mm |
| Emission | Stage V / Tier 4F |
| System pressure | 34.3 MPa |
| Engine power | 231 kW @ 2100 rpm |
| Travel speed (High) | 5.5 km/h |
| Maximum swing speed | 10 rpm |
| Bucket breakout force | 290 kN |
| Shipping width | 3190 mm |
| Track shoe width (std) | 600 mm |
| Arm | 3200 mm |
| Digging reach on ground | 10900 mm |
| Vertical wall digging depth | 6460 mm |
| Dumping height | 7160 mm |
| Model | Cummins L9 |
| System maximum flow | 333 L/min |
| ※For reference only. | 939F－Stage III |
| Operating weight | 39000 kg |
| Std. Bucket capacity | 2.0 m³ |
| Travel speed(Low) | 3.4 km/h |
| Arm breakout force | 227 kN |
| Shipping length | 11450 mm |
| Shipping height | 3800 mm |
| Boom | 6400 mm |
| Digging reach | 10728 mm |
| Digging depth | 6890 mm |
| Cutting height | 9818 mm |
| Model | Cummins L9PLUS |
| System maximum flow | 2×351 L/min |
Key Features
- Operating weight 39800 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 231 kW @ 2100 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.8 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 939F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
