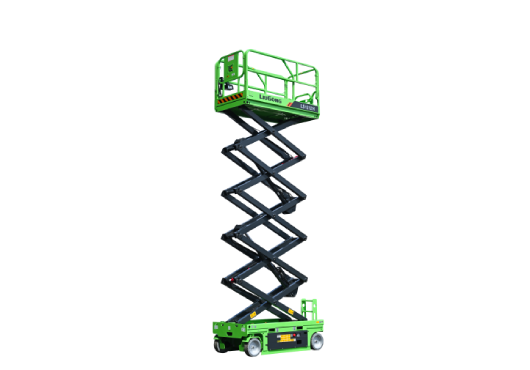

LS1012H Aerial Work Platform

Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life. Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport. Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

Specifications Key Features Applications Get a Quote

LS1012H Aerial Work Platforms

Max.Working Height

12 m

Rated Load on Working Platform

350 kg

Overall Length/Width

2.49*1.19 m

Key Features

Security And Intelligence
Intelligent control system, real-time monitoring of equipment status, Multiple security protection to ensure personnel safety, Intelligent charging system to extend battery life.
Easy To Control
Drivable at full height to improve working effificiency, The proportion drops and the descent moves smoothly, Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
Self-lubricating sleeve, Swing-out tray on both sides, easy maintenance, Fault code indication to facilitate troubleshooting.

Specifications

Parameter	Metric	Imperial / U.S.
Max.Work Height	12 m	39.37 ft.
Max.Platform Height	10 m	32.81 ft.
Min.Platform Height	1.39 m	4.56 ft.
Platform Size(L×W)	2.28×1.15 m	7.47×3.77 ft.
Overall Length	2.49 m	8.17 ft.
Overall Width	1.19 m	3.90 ft.
Overall Height (Rails Down)	1.93 m	6.33 ft.
Max.Gradeability	25 %	25 %
Lift Motor	24 V / 3.3 kW	24 V / 3.3 kW
Rated Load on Working Platform	350 kg	771 lb
Battery	24V / 225 Ah	24V / 225 Ah
Charger	24 V / 30 A	24 V / 30 A
Total Weight	2820 kg	6217.04 lbs
