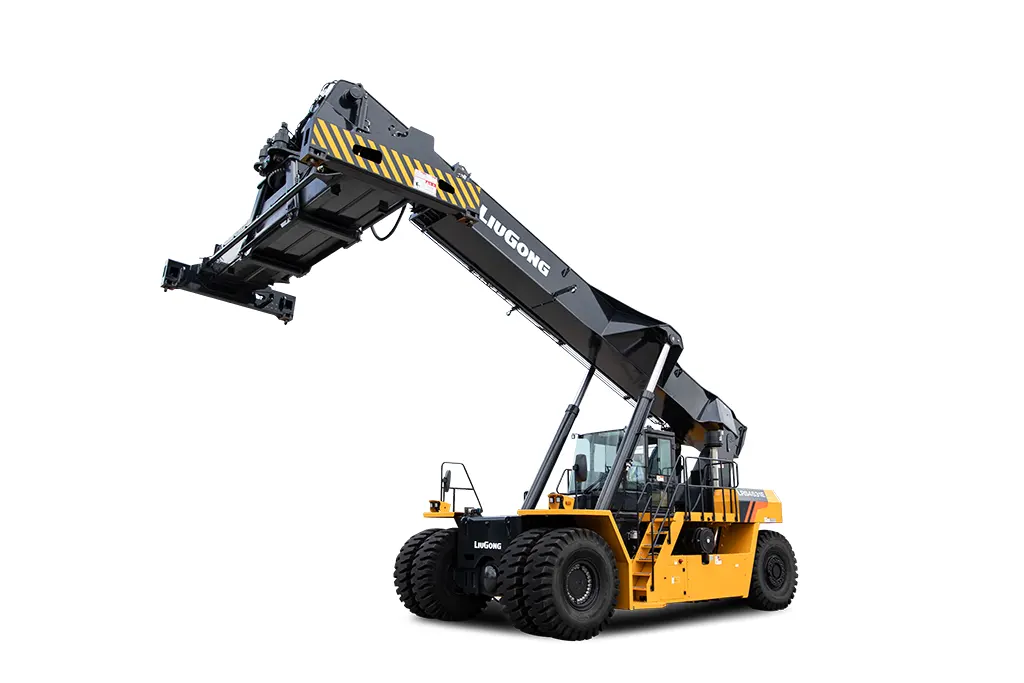

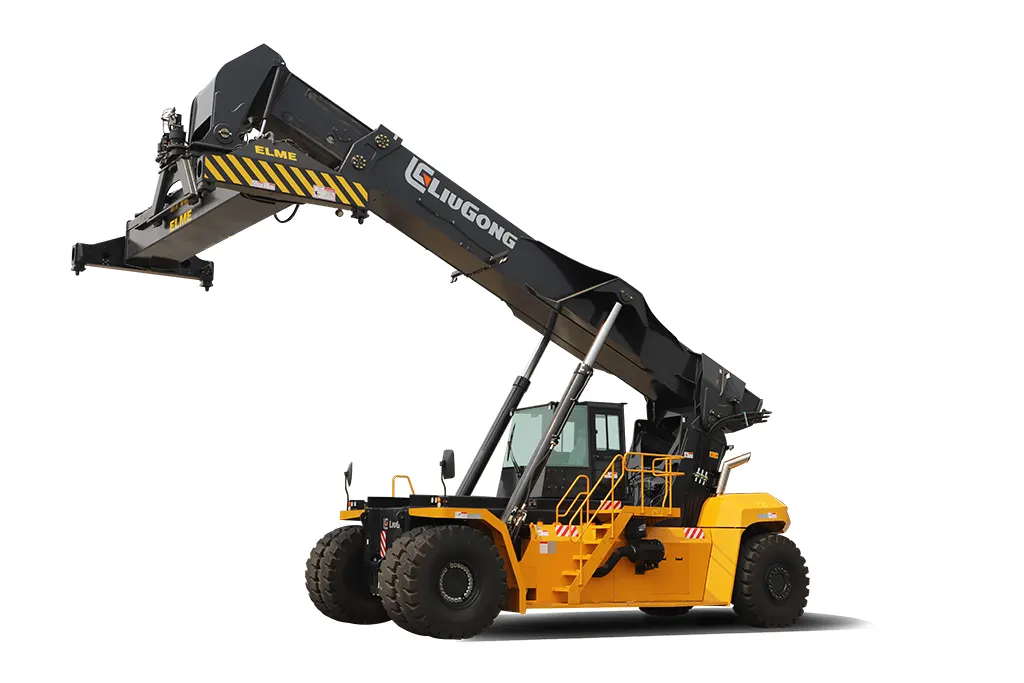

LRS4531E Reach Stacker
The LiuGong LRS4531E reach stacker offers max boom lift height of 15,100 mm; boom angle range of 0–60°; lift speed (loaded/empty) of 420/250 mm/s. Efficient container and intermodal handling; high lifting capacity, excellent maneuverability and fast cycle times. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
LRS4531E Reach Stackers
Max Boom Lift Height
15,100 mm
Boom Angle Range
0–60°
Lift Speed (Loaded/Empty)
420/250 mm/s
Specifications
| Max Boom Lift Height | 15,100 mm |
|---|---|
| Boom Angle Range | 0–60° |
| Lift Speed (Loaded/Empty) | 420/250 mm/s |
| Lowering Speed (Loaded/Empty) | 360/300 mm/s |
| Travel Speed (Loaded/Empty) | 25/22 km/h |
| Gradeability (Loaded/Empty) | 40/32% |
| Service Weight | 72 t |
| Rated Load Capacity | 45 t |
| Stacking Layers | 5 |
| Overall Length | 11,311 mm |
| Wheelbase | 6,000 mm |
| Overall Height | 4,740 mm |
| Ground Clearance | 350 mm |
| Overall Width | 6,053–12,185 mm |
| Front Track | 3,033 mm |
| Rear Track | 2,798 mm |
| Min Turning Radius | 8,000 mm |
| Aisle Width (20ft Container) | 11,300 mm |
| Aisle Width (40ft Container) | 13,600 mm |
Key Features
- Travel speed 25/22 km/hEfficient repositioning and cycle times on site.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The LRS4531E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LRS4531E Reach Stacker
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
