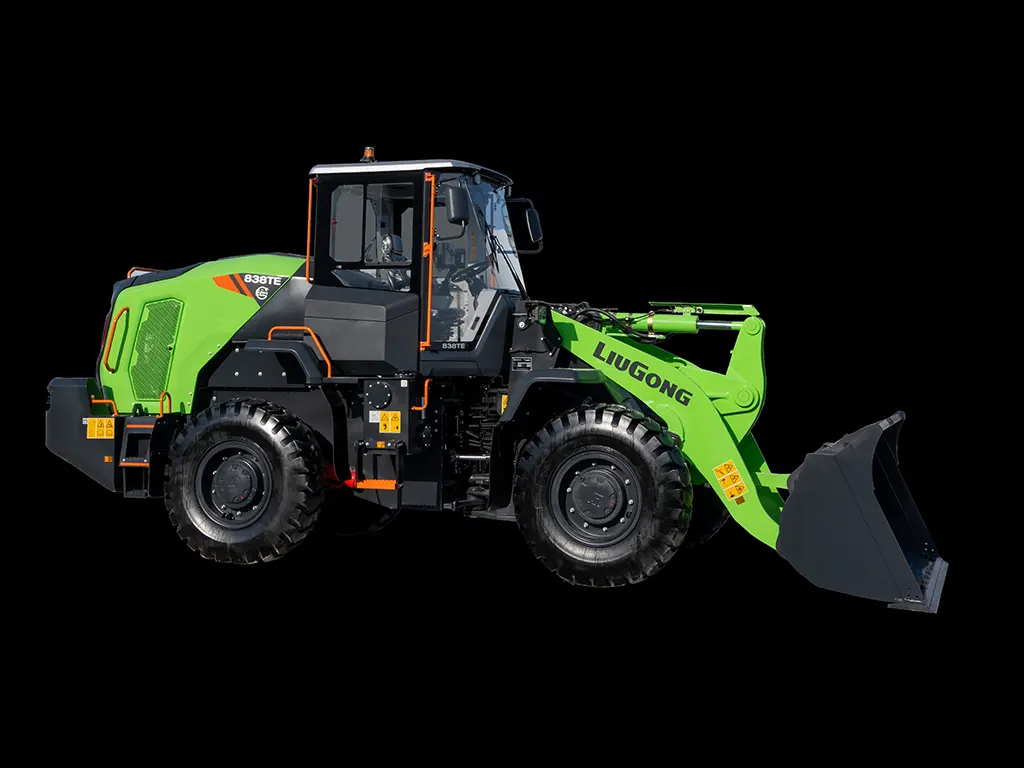

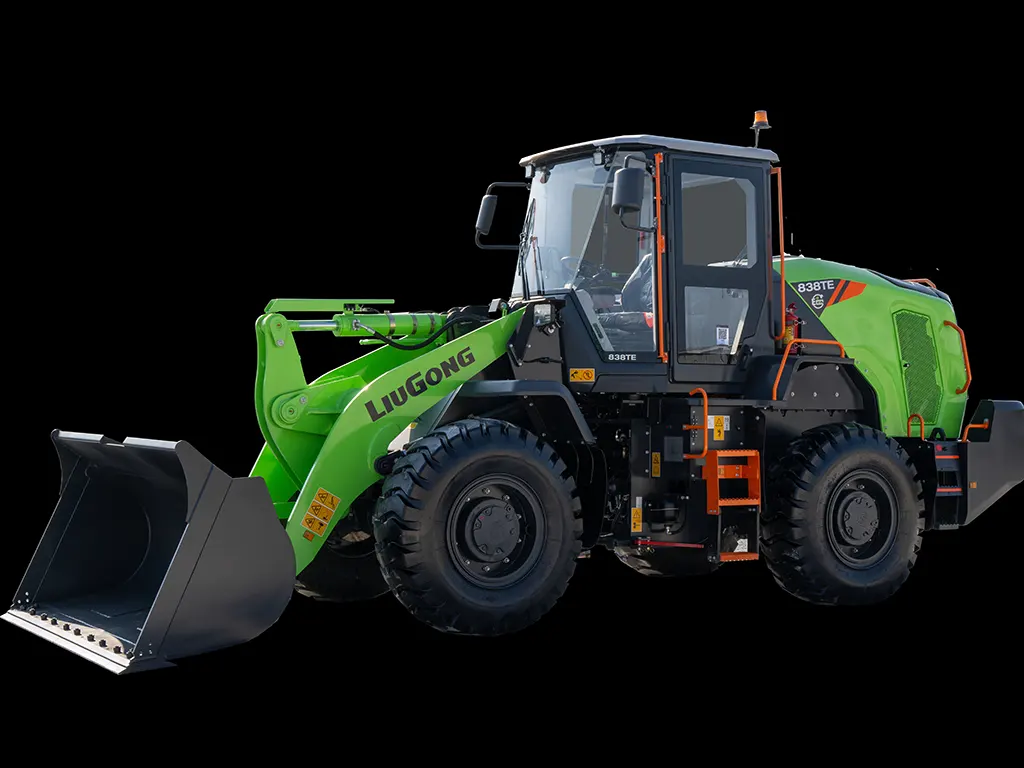

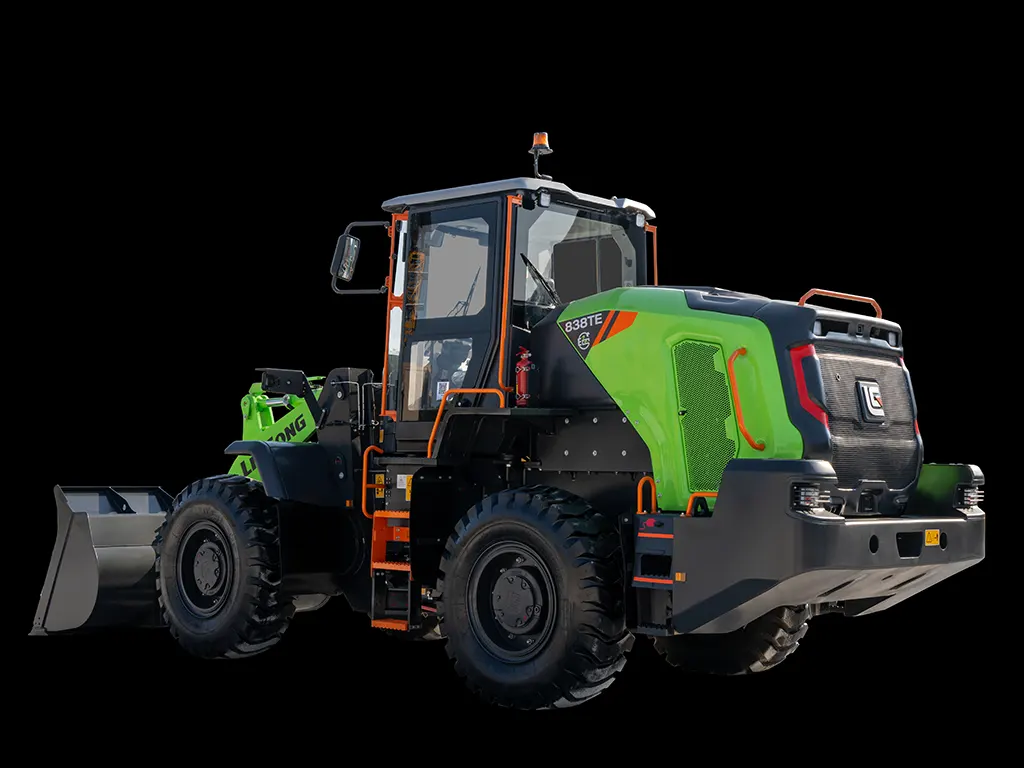

838T-E Wheel Loader
The LiuGong 838T-E wheel loader offers operating weight of 12,760 kg; rated power of 120 kW; battery capacity of 193 kWh LFP. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
838T-E Wheel Loaders
Operating Weight
12,760 kg
Rated Power
120 kW
Battery Capacity
193 kWh LFP
Specifications
| Operating Weight | 12,760 kg |
|---|---|
| Battery Capacity | 193 kWh LFP |
| Load Capacity | 3,800 kg |
| Bucket Breakout Force | 100 kN |
| Dump Reach | 1,188 mm |
| Rated Power | 120 kW |
| Battery Charger | 120–160 kW |
| Charge Time | 70 min |
| Transmission | LiuGong |
| Brakes | Dry Hydraulic Brake |
| Transport Length | 7,276 mm |
| Transport Width | 2,395 mm |
| Transport Height | 3,270 mm |
| Outer Turning Radius | 5,540 mm |
| General Purpose Bucket | 2.0 m³ |
| Tires | 17.5-25 PR 12 L-3TT |
| Cab Type | Standard |
Key Features
- Operating weight 12,760 kgCompact utility class — warehousing, mixing plants and light material handling.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.

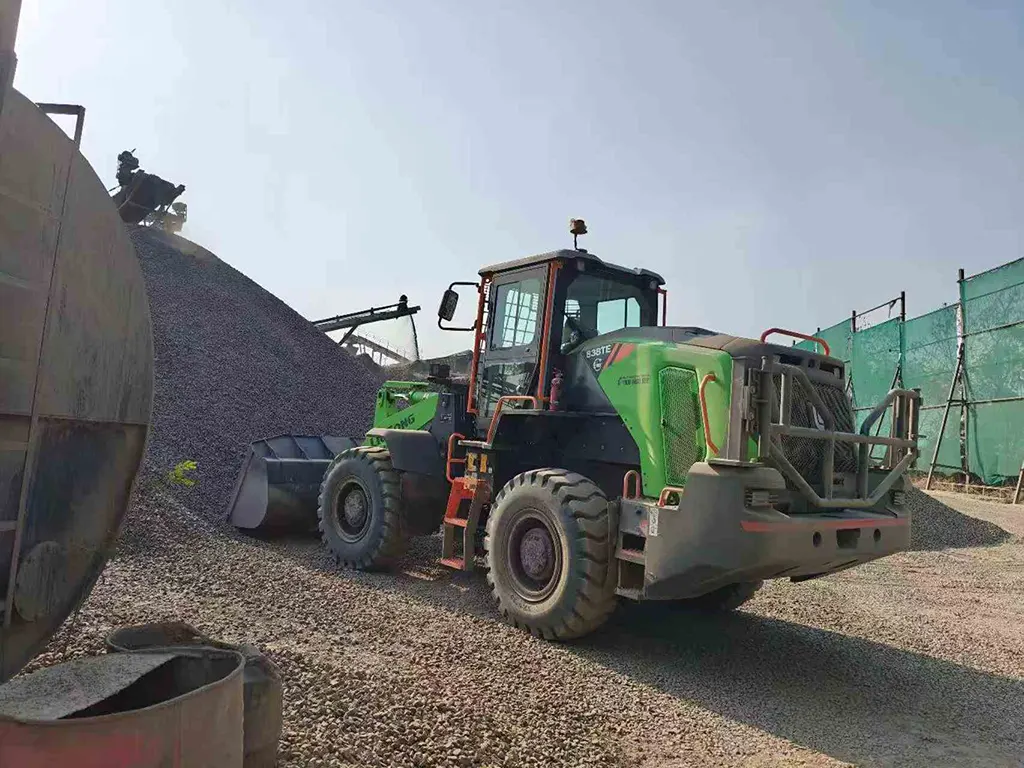

Applications
The 838T-E is suited to Warehousing, mixing plants and light material handling. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 838T-E Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
