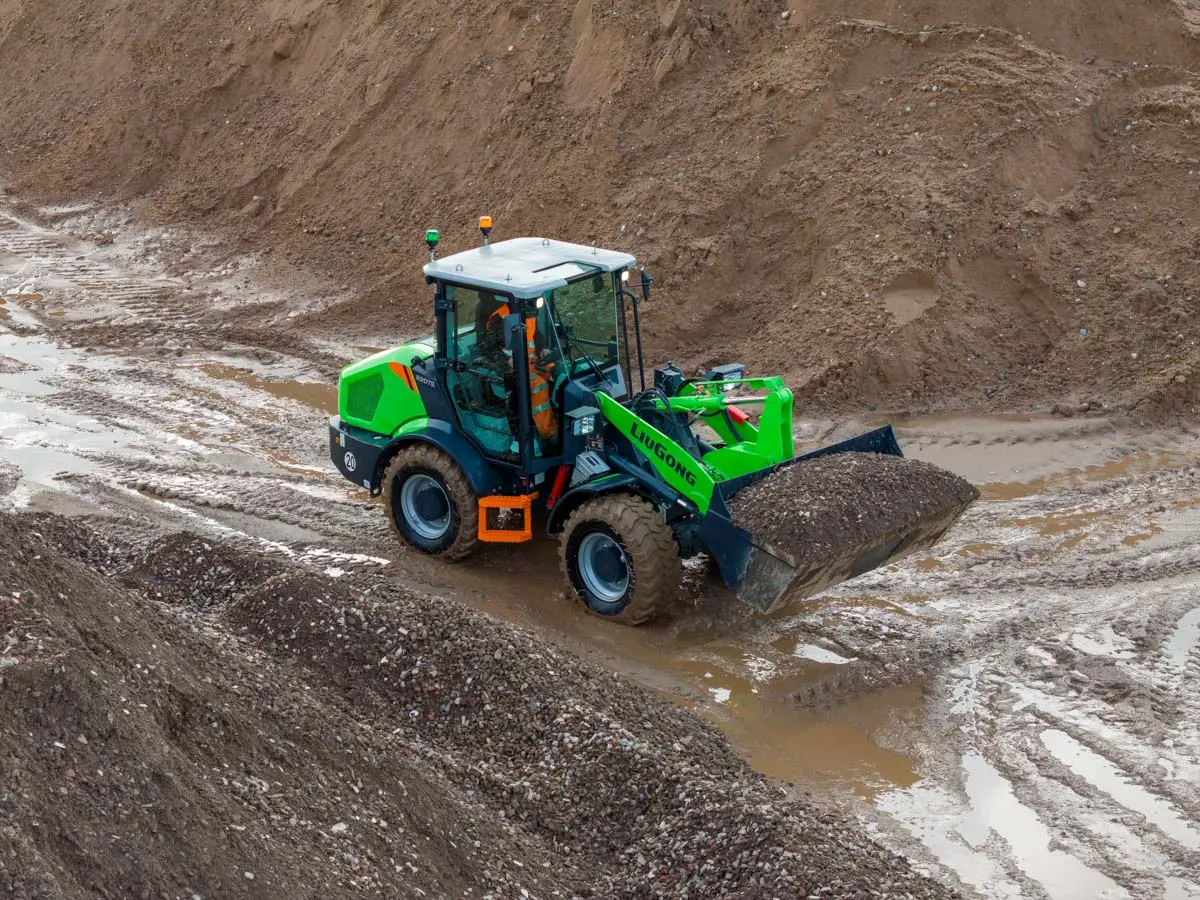

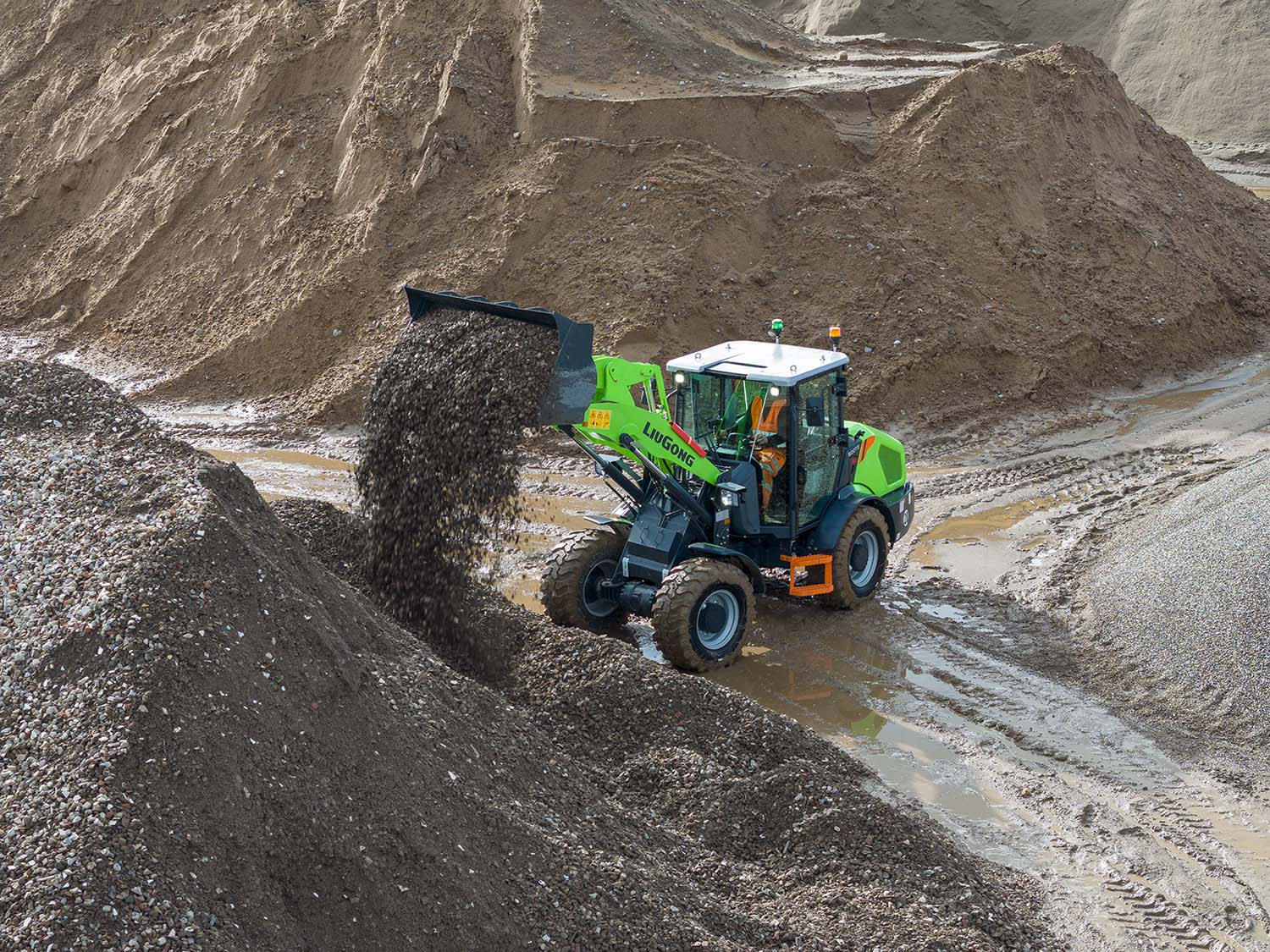

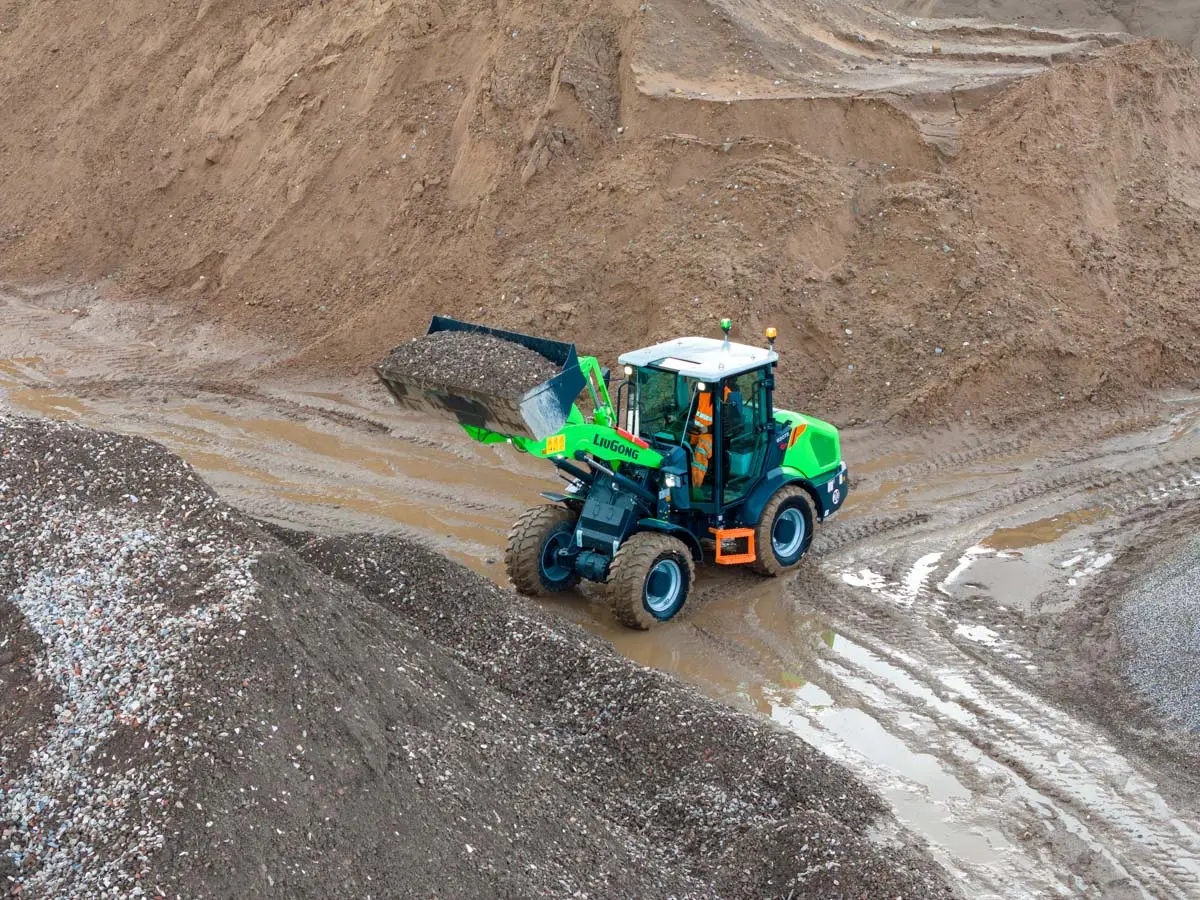

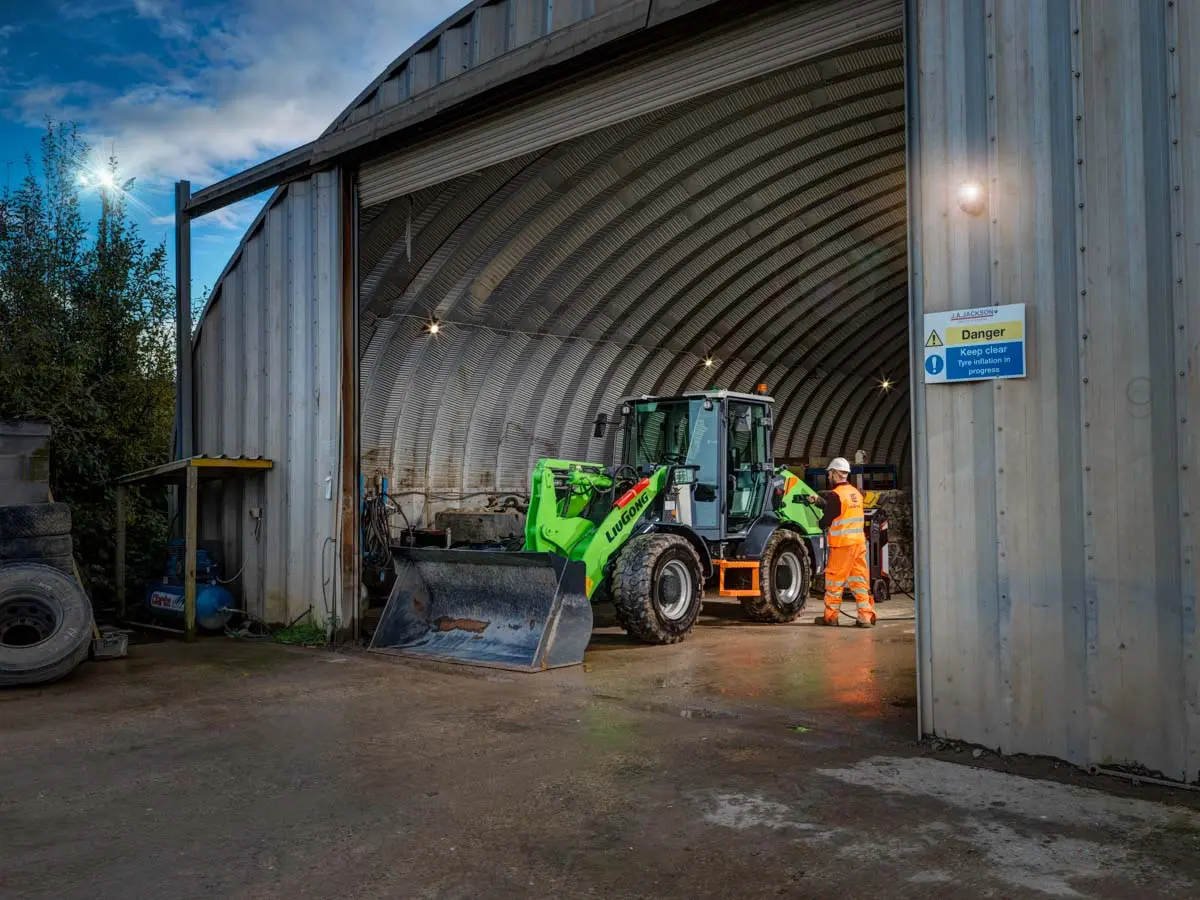

820TE Wheel Loader
The LiuGong 820TE wheel loader offers operating weight of 6,600 kg; rated power of 60 kW; battery capacity of 70.5 kWh LFP. Built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
820TE Wheel Loaders
Operating Weight
6,600 kg
Rated Power
60 kW
Battery Capacity
70.5 kWh LFP
Specifications
| Operating Weight | 6,600 kg |
|---|---|
| Battery Capacity | 70.5 kWh LFP |
| Load Capacity | 2,000 kg |
| Total Load Cycle | 9.8 s |
| Static Tipping Load (Straight) | 4,700 kg |
| Static Tipping Load (Full Turn) | 3,650 kg |
| Bucket Breakout Force | 61 kN |
| Bucket Pivot Height | 3,459 mm |
| Dump Height | 2,618 mm |
| Dump Reach | 850 mm |
| Rated Power | 60 kW |
| Battery Charger | 60 kW |
| Charge Time | 70 min |
| Transmission | LiuGong |
| Brakes | Wet Disc Brake |
| Transport Length | 5,833 mm |
| Transport Width | 2,060 mm |
| Transport Height | 2,515 mm |
| Outer Turning Radius | 5,110 mm |
| General Purpose Bucket | 1.2 m³ (0.8–2.0) |
| Tires | 16/70-20 |
| Cab Type | Standard |
Key Features
- Operating weight 6,600 kgCompact utility class — warehousing, mixing plants and light material handling.
- Tipping load 4,700 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 820TE is suited to Warehousing, mixing plants and light material handling. Tell us your material and application and we will recommend the right configuration.
