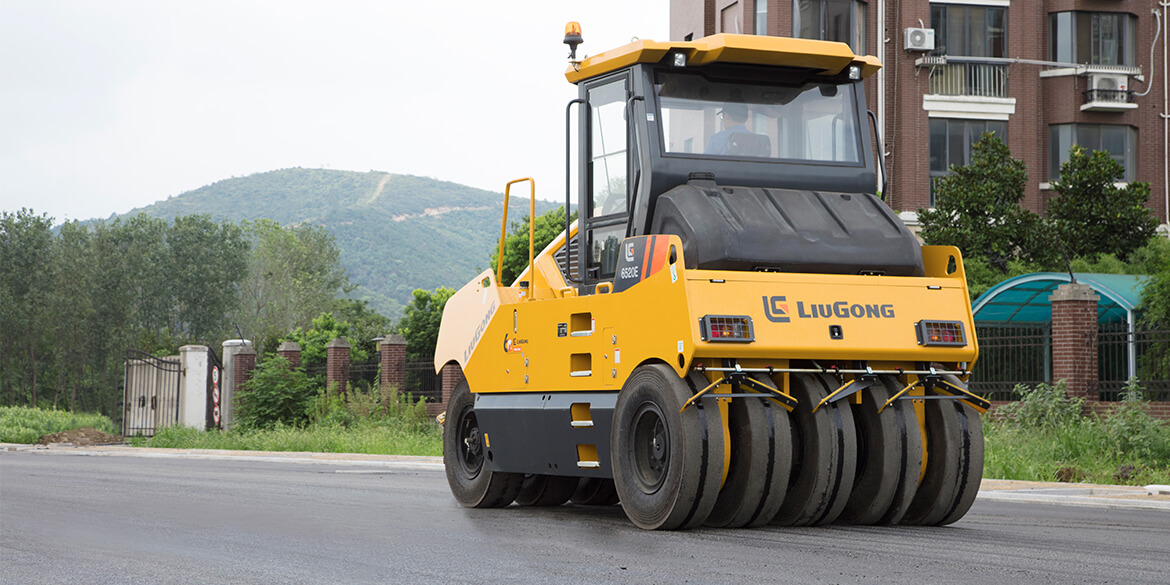

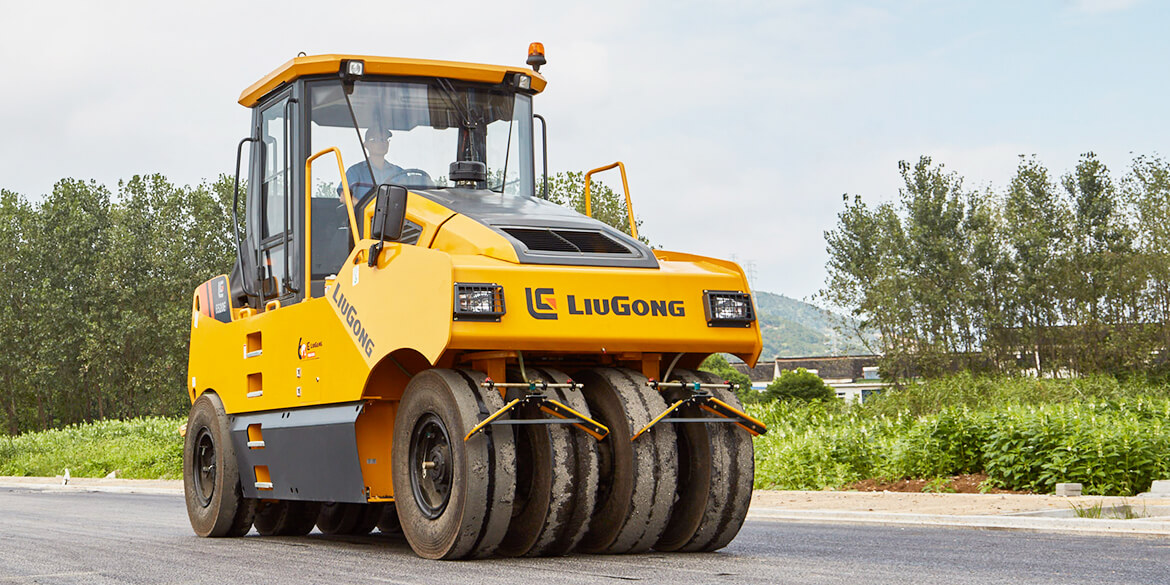

6520E Roller
The LiuGong 6520E compaction roller offers operating weight of 11,000 – 20,000 kg; rated power of 97 kW (130 hp) @ 2,200 rpm; ground pressure of 200–420 kPa. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6520E Rollers & Compaction
Operating Weight
11,000 – 20,000 kg
Rated Power
97 kW (130 hp) @ 2,200 rpm
Ground Pressure
200–420 kPa
Specifications
| Operating Weight | 11,000 – 20,000 kg |
|---|---|
| Ground Pressure | 200–420 kPa |
| Tire Pressure | 200–800 kPa |
| Front Drum Static Linear Load | 303 kN Front / 286 kN Rear |
| Engine Model | Cummins QSB4.5 |
| Emission Standard | Tier 3 |
| Rated Power | 97 kW (130 hp) @ 2,200 rpm |
| Max Forward Speed (1st) | 6 km/h |
| Max Forward Speed (2nd) | 16 km/h |
| Steering Angle | 30° |
| Gradeability | 20% |
| Wheelbase | 3,600 mm |
| Min Outer Turning Radius | 8,000 mm |
| Overall Length | 4,800 mm |
| Overall Width | 2,310 mm |
| Overall Height | 3,270 mm |
| Tires | 11.00-20-16 PR |
Download Brochure & Spec Sheet
Open or download the official LiuGong PDF catalog (new tab).
Key Features
- Operating weight 11,000 – 20,000 kgClass-defining weight for application matching.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6520E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6520E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
