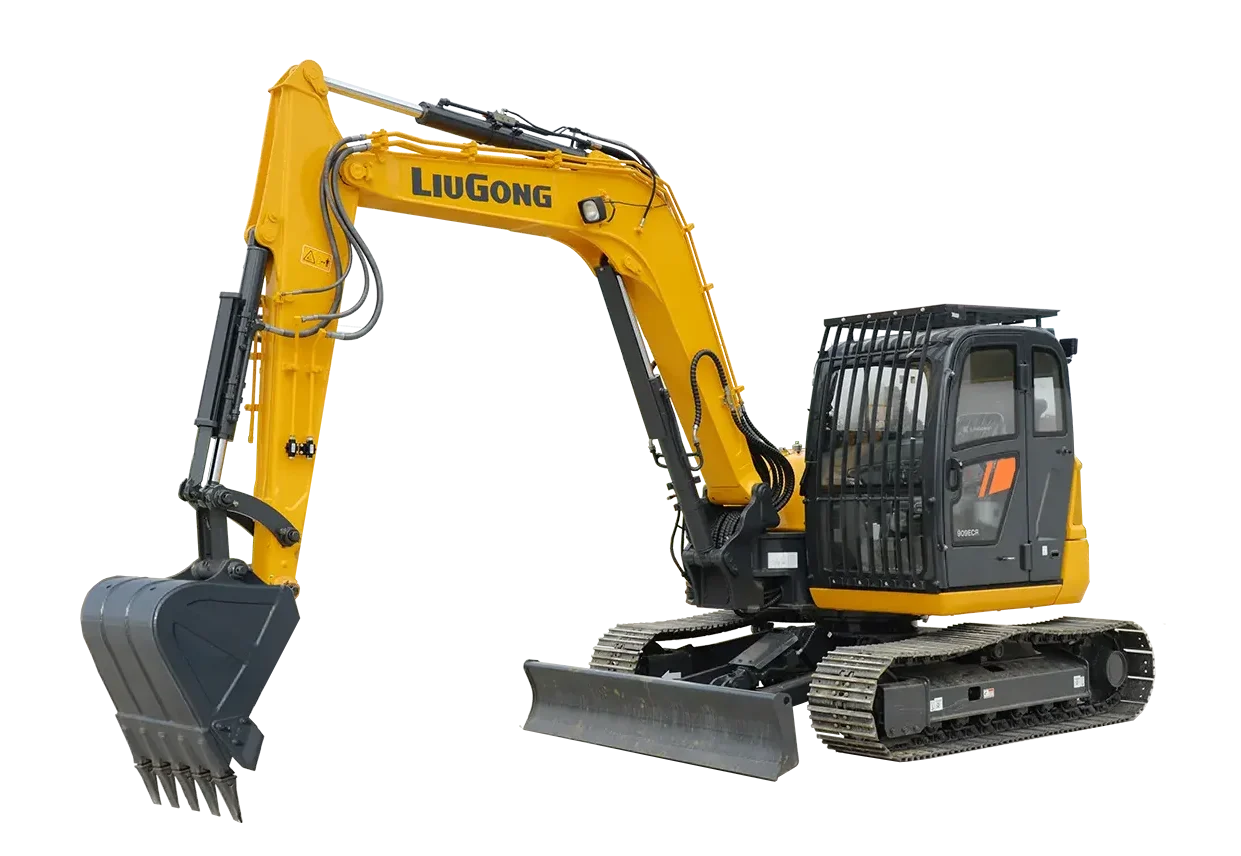

909ECR Excavator
The LiuGong 909ECR crawler excavator offers operating weight (cab) of 8,700 kg; engine power of 44 kW (59 hp / 60 ps); bucket capacity of 0.23–0.32 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
909ECR Excavators
Operating Weight (Cab)
8,700 kg
Engine Power
44 kW (59 hp / 60 ps)
Bucket Capacity
0.23–0.32 m³
Specifications
| Operating Weight (Cab) | 8,700 kg |
|---|---|
| Engine Power | 44 kW (59 hp / 60 ps) |
| Bucket Capacity | 0.23–0.32 m³ |
| Travel Speed (High) | 4.8 km/h |
| Travel Speed (Low) | 2.8 km/h |
| Swing Speed | 10.5 rpm |
| Bucket Digging Force (ISO) | 63 kN |
| Arm Digging Force (ISO) | 43 kN |
| Boom Length | 3,510 mm |
| Arm Length | 2,660 mm |
| Digging Reach | 7,264 mm |
| Ground Reach | 7,082 mm |
| Digging Depth | 4,540 mm |
| Vertical Wall Dig Depth | 3,963 mm |
| Max Cutting Height | 7,016 mm |
| Max Loading Height | 5,000 mm |
| Zero Tail Swing Radius | 1,410 mm |
| Engine Model | Yanmar 4TNV98C |
| Emission Standard | EU Stage V |
| Max Flow | 189 L/min |
Key Features
- Operating weight 8,700 kgMainstream class — building foundations, roadworks and general earthmoving.
- Engine power 44 kW (59 hp / 60 ps)Power matched to daily production and fuel-efficient operation.
- Bucket capacity 0.23–0.32 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 909ECR is suited to Building foundations, roadworks, drainage and general earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 909ECR Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
