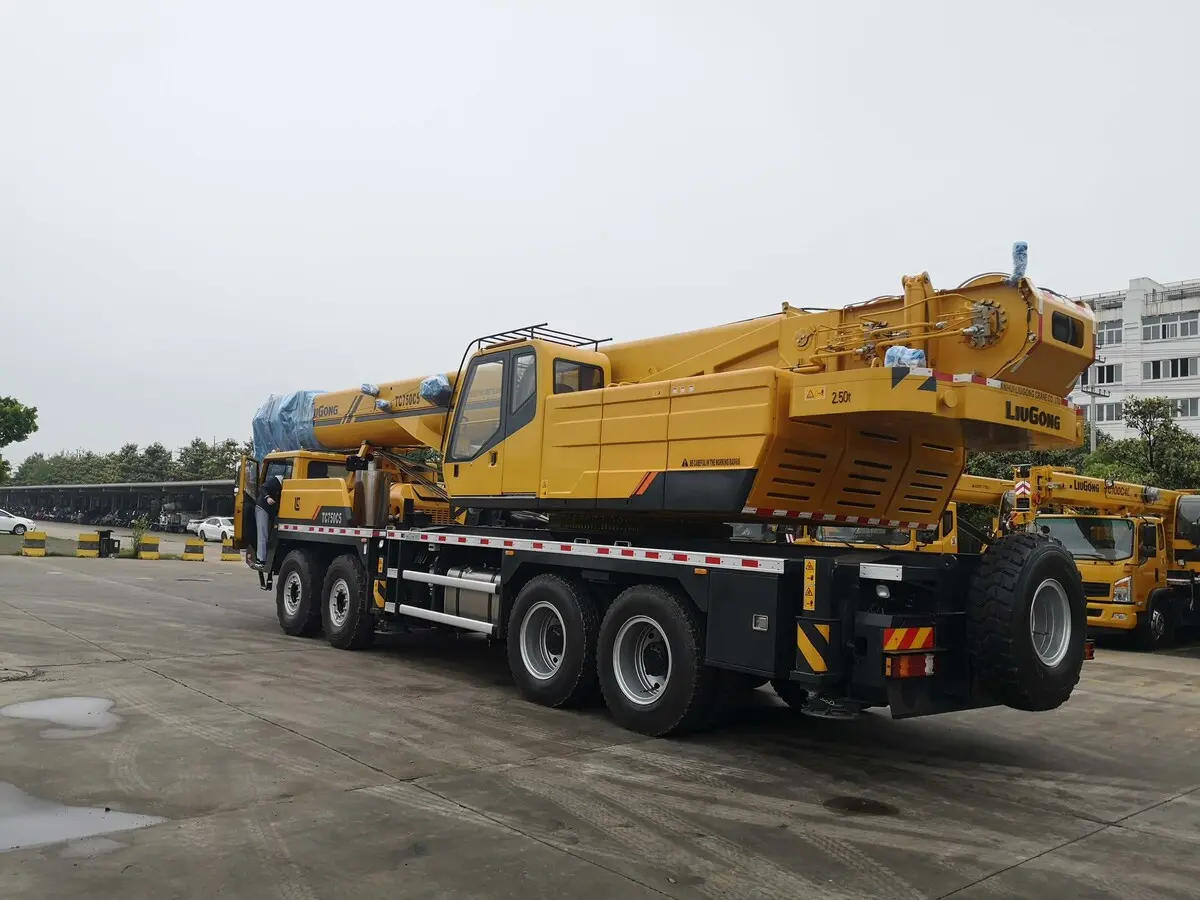

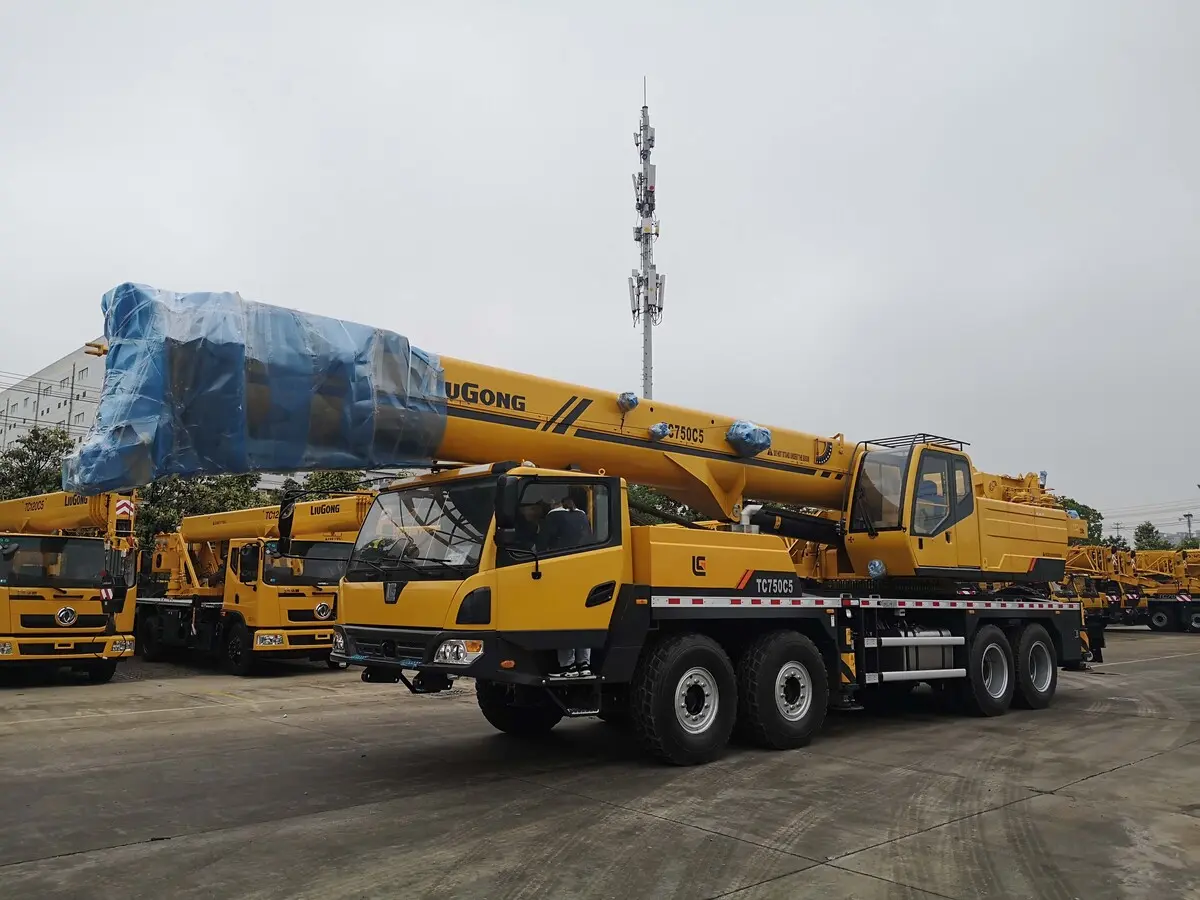

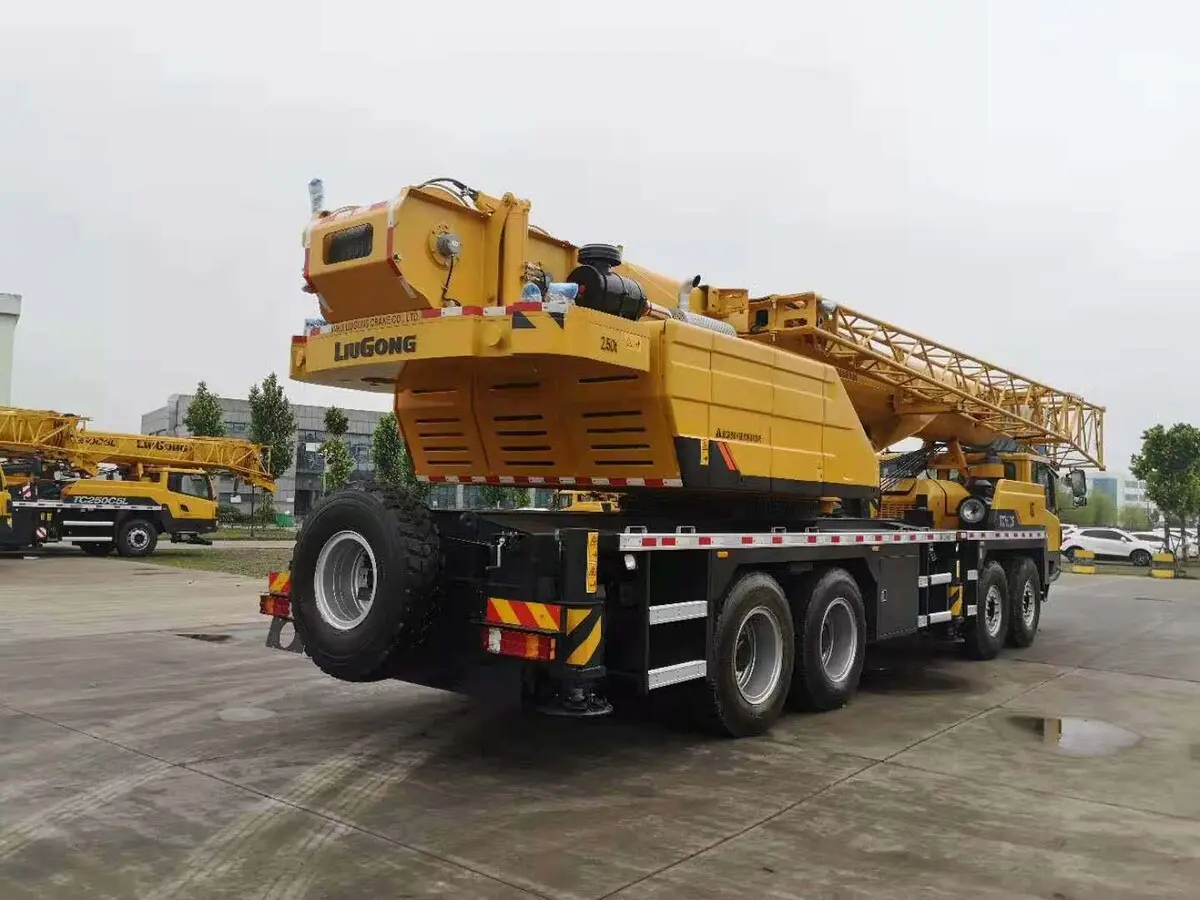

TC700C5 Truck Crane
The LiuGong TC700C5 is a 70-ton hydraulic truck crane with a 48 m five-section boom, powerful Cummins engine and precise load-sensing hydraulics — built for high-lift construction, infrastructure and industrial projects.
TC700C5 Truck Crane
Max Lifting Capacity
70 t
Gross Power
275 kW (368.5 hp) @ 2,100 rpm
Max Travel Speed
85 km/h
Specifications
| Max Lifting Capacity | 70 t |
|---|---|
| Gross Power | 275 kW (368.5 hp) @ 2,100 rpm |
| Max Travel Speed | 85 km/h |
| Min Turning Radius | 24 m |
| Approach Angle | ≥ 18° |
| Departure Angle | ≥ 14° |
| Main Hoist Speed (No Load) | 130 m/min |
| Aux Hoist Speed (No Load) | 130 m/min |
| Boom Full Extension Time | 105 s |
| Boom Full Lowering Time | 65 s |
| Swing Speed | 1.7 rpm |
| Total Operating Weight | 46,000 kg |
| Front Axle Load | 20,000 kg |
| Rear Axle Load | 26,000 kg |
| Turntable Radius | 4,210 mm |
| Max Load Moment (Basic Boom) | 2,740 kN·m |
| Max Load Moment (Full Boom) | 1,393 kN·m |
| Outriggers (Trans. × Long.) | 7.8 × 6.275 m |
| Basic Boom Length | 12.5 m |
| Fully Extended Boom | 48 m |
| Fully Extended Boom + Jib | 65.5 m |
| Emission Standard | Tier III |
| Engine | Cummins ISLe37530 |
| Max Torque | 1,550 Nm @ 1,100–1,400 rpm |
Key Features
- Operating weight 46,000 kgClass-defining weight for application matching.
- Travel speed 85 km/hEfficient repositioning and cycle times on site.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
Applications
The TC700C5 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for TC700C5 Truck Crane
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
