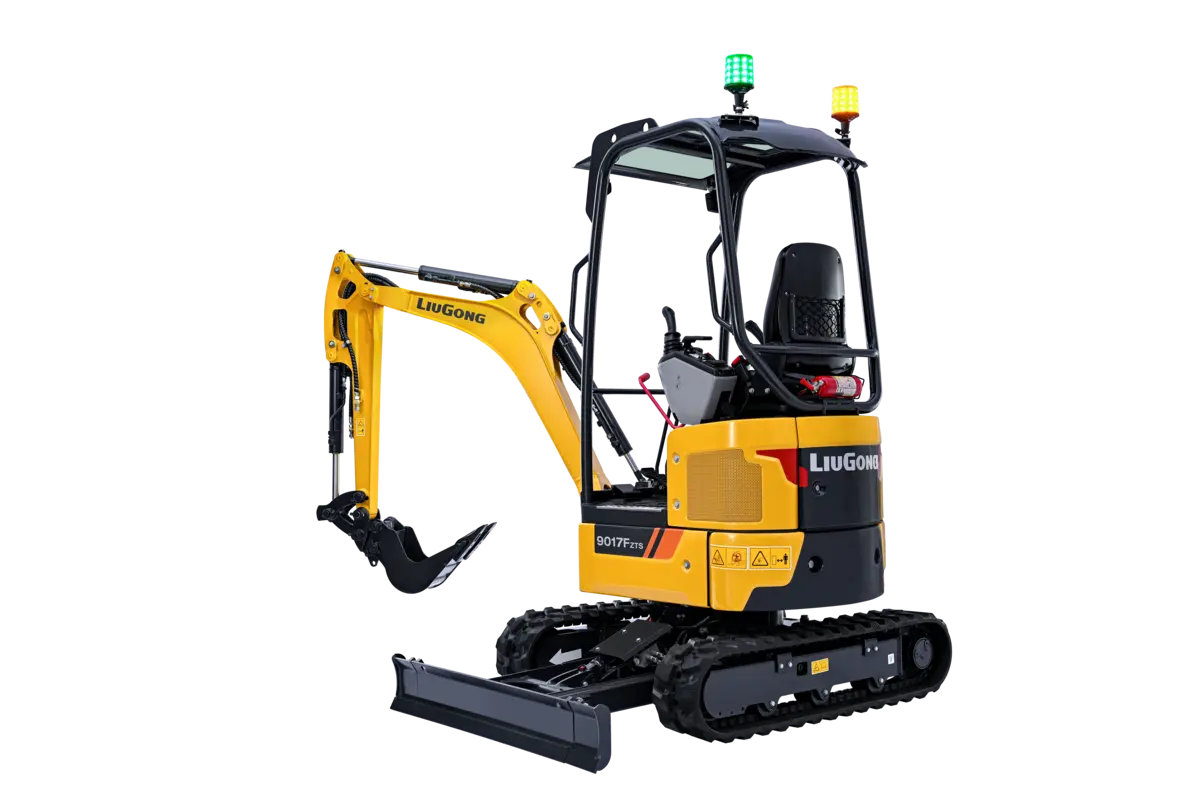

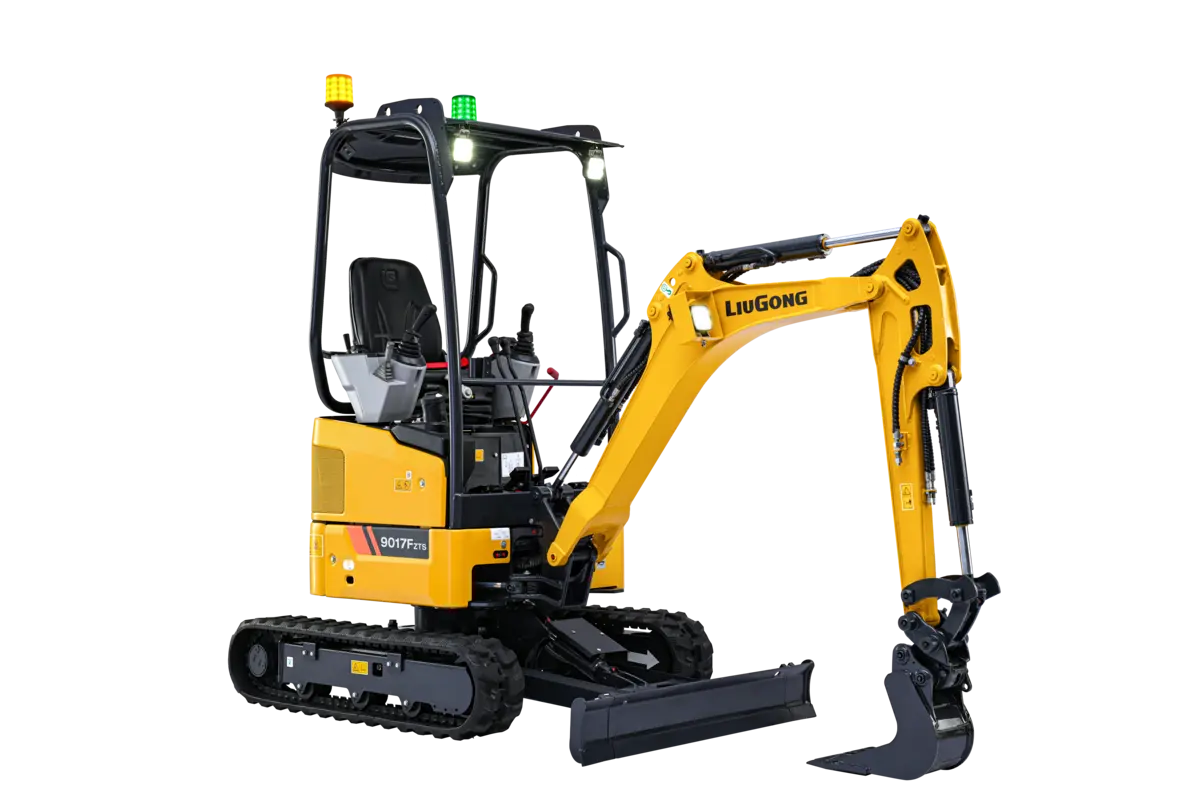

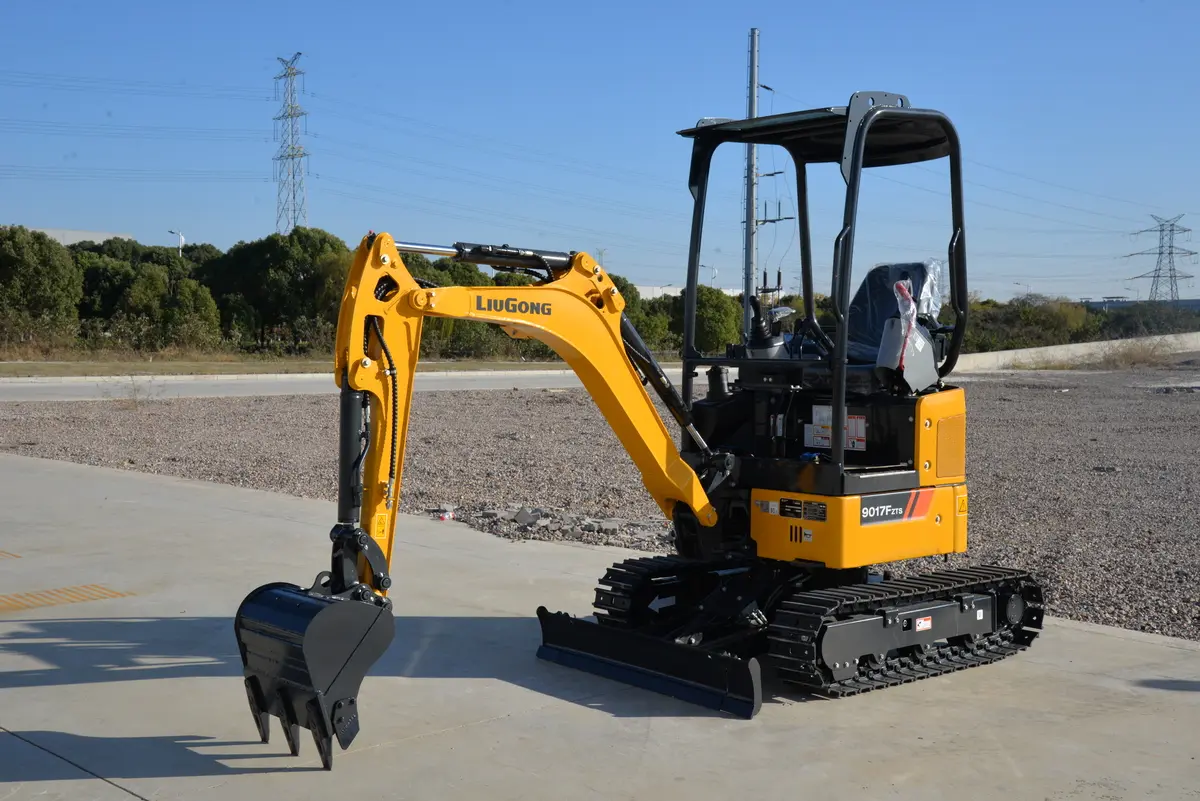

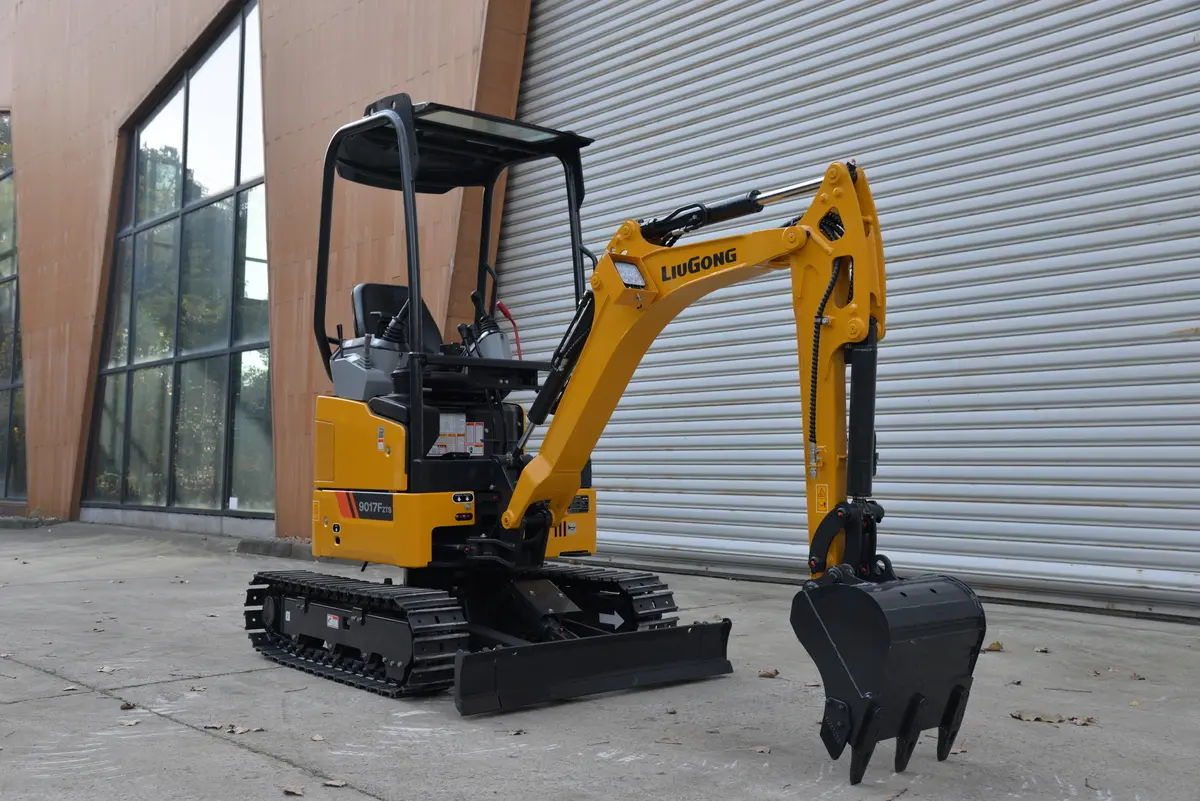

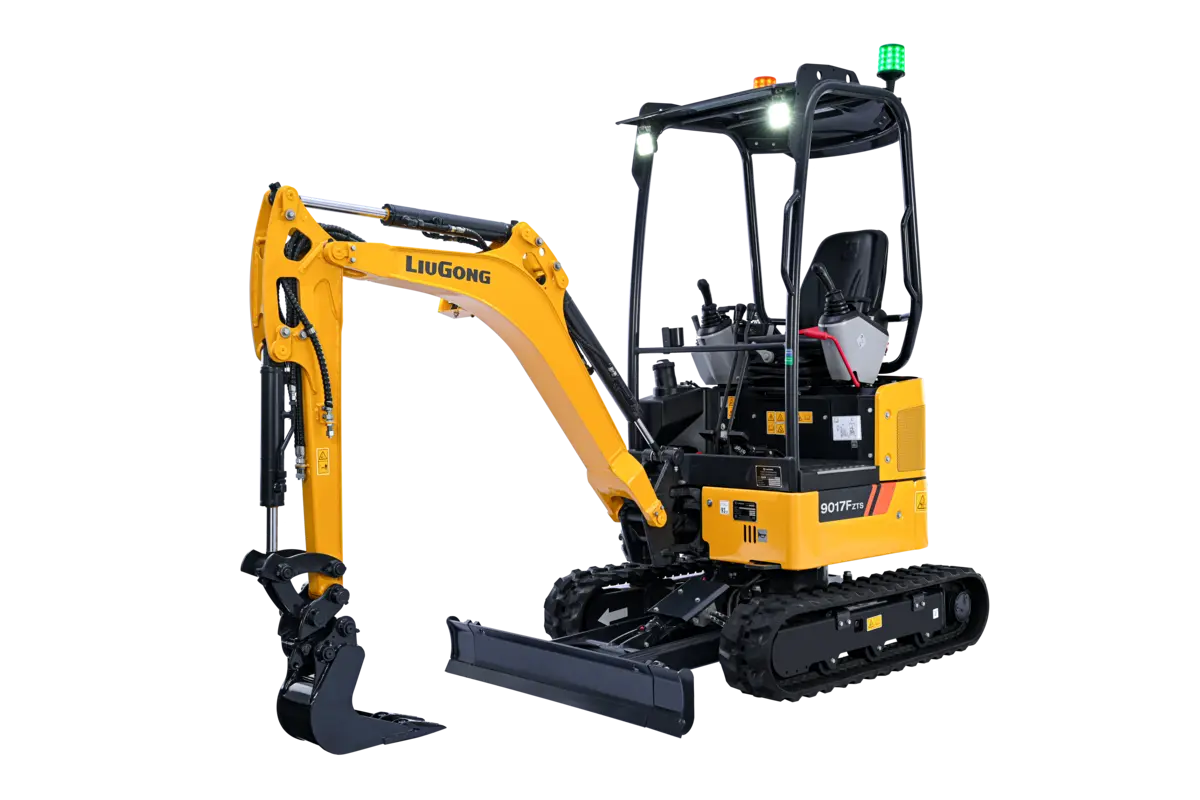

9017FZTS Excavator
The LiuGong 9017FZTS crawler excavator offers operating weight of 1,750-1,850 kg; std. bucket capacity of 0.045 m³; engine power of 11.8 kW (15.8 hp) @ 2,300 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
9017FZTS Excavators
Operating weight
1,750-1,850 kg
Std. Bucket capacity
0.045 m³
Engine power
11.8 kW (15.8 hp) @ 2,300 rpm
Specifications
| Operating weight | 1,750-1,850 kg |
|---|---|
| Std. Bucket capacity | 0.045 m³ |
| Travel speed(Low) | 2.2 km/h |
| Arm breakout force | 9 kN |
| Shipping length | 3445 mm |
| Shipping height | 2410 mm |
| Boom | 1685 mm |
| Digging reach | 3910 mm |
| Digging depth | 2255 mm |
| Cutting height | 3420 mm |
| Minimum front swing radius | 1660 mm |
| Dozer-down | 240 mm |
| Swing boom right rotation | 58 ° |
| Emission | EU Stage V / Tier 4f |
| System pressure | 21 MPa |
| Engine power | 11.8 kW (15.8 hp) @ 2,300 rpm |
| Travel speed(High) | 4.0 km/h |
| Maximum swing speed | 9.5 rpm |
| Bucket breakout force | 16 kN |
| Shipping width | 980 / 1290 mm |
| Track shoe width (std) | 230 mm |
| Arm | 1070 mm |
| Digging reach on ground | 3840 mm |
| Vertical wall digging depth | 1780 mm |
| Dumping height | 2400 mm |
| Dozer-up | 240 mm |
| Swing boom left rotation | 72 ° |
| Model | Kubata D902 |
| System maximum flow | 44 L/min ( 11.6 gal/min) |
Key Features
- Operating weight 1,750-1,850 kgCompact class — fits tight urban, municipal and confined jobsites.
- Engine power 11.8 kW (15.8 hp) @ 2,300 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.045 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 9017FZTS is suited to Municipal, landscaping, utility trenching and small earthworks. Tell us your application and we will recommend the right configuration.
Get a Quote for 9017FZTS Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
