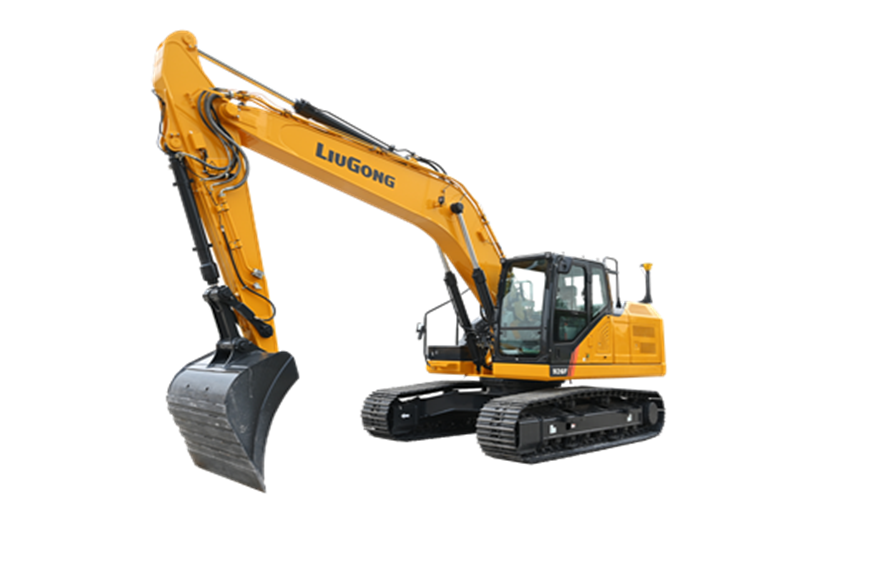

926F Excavator
The LiuGong 926F crawler excavator offers operating weight of 26500 kg; std. bucket capacity of 1.3 m³; engine power of 145 kW (194 hp) @ 2000 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
926F Excavators
Operating weight
26500 kg
Std. Bucket capacity
1.3 m³
Engine power
145 kW (194 hp) @ 2000 rpm
Specifications
| Operating weight | 26500 kg |
|---|---|
| Std. Bucket capacity | 1.3 m³ |
| Travel speed(Low) | 3.4 km/h |
| Arm breakout force | 134 kN |
| Shipping length | 10210 mm |
| Shipping height | 3150 mm |
| Boom | 6000 mm |
| Digging reach | 10340 mm |
| Digging depth | 6925 mm |
| Cutting height | 10075 mm |
| Minimum front swing radius | 3430 mm |
| Emission | Stage V / Tier4F |
| System pressure | 34.3 MPa |
| Engine power | 145 kW (194 hp) @ 2000 rpm |
| Travel speed(High) | 5.8 km/h |
| Maximum swing speed | 10.5 rpm |
| Bucket breakout force | 179 kN |
| Shipping width | 3190 mm |
| Track shoe width (std) | 600 mm |
| Arm | 2980 mm |
| Digging reach on ground | 10135 mm |
| Vertical wall digging depth | 6150 mm |
| Dumping height | 6920 mm |
| Model | Cummins B6.7 |
| System maximum flow | 2×234 L/min |
Key Features
- Operating weight 26500 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 145 kW (194 hp) @ 2000 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.3 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 926F is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
