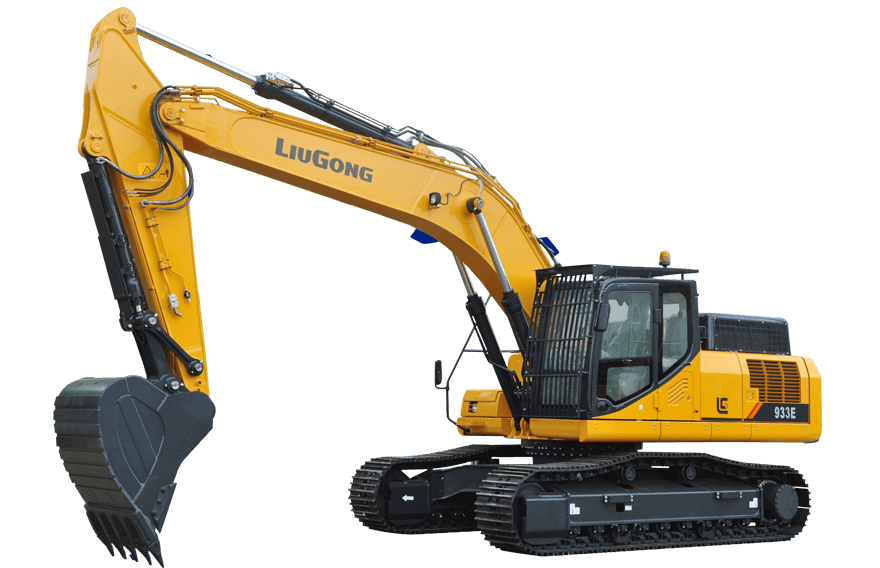

933E Excavator
The LiuGong 933E crawler excavator offers operating weight of 31800 kg; std. bucket capacity of 1.6 m³; engine power of 194 kW @ 2200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
933E Excavators
Operating weight
31800 kg
Std. Bucket capacity
1.6 m³
Engine power
194 kW @ 2200 rpm
Specifications
| Operating weight | 31800 kg |
|---|---|
| Std. Bucket capacity | 1.6 m³ |
| Travel speed(Low) | 3.0 km/h |
| Arm breakout force | 137 kN |
| Bucket breakout force | 187 kN |
| Shipping length | 10650 mm |
| Shipping height | 3525 mm |
| Boom | 6200 mm |
| Digging reach | 10653 mm |
| Digging depth | 7300 mm |
| Cutting height | 10300 mm |
| Minimum front swing radius | 4040 mm |
| Emission | Stage II / Tier 2 |
| System pressure | 34.3 MPa |
| Engine power | 194 kW @ 2200 rpm |
| Travel speed(High) | 5.5 km/h |
| Maximum swing speed | 10.3 rpm |
| Arm breakout force Power boost | 149 kN |
| Bucket breakout force Power boost | 203 kN |
| Shipping width | 3190 mm |
| Track shoe width (std) | 600 mm |
| Arm | 3050 mm |
| Digging reach on ground | 10453 mm |
| Vertical wall digging depth | 6216 mm |
| Dumping height | 7265 mm |
| Model | Cummins HM8.3 |
| System maximum flow | 2×266 L/min (2x70 gal/min) |
| ※For reference only. | 933E－Stage IIIA |
| Operating weight | 31,800-32,900 kg |
| Bucket capacity | 1.6 m³ |
| Maximum travel speed (Low) | 3.0 km/h |
| Arm breakout force | 137 kN |
| Bucket breakout force | 187 kN |
| Shipping length | 10650 mm |
| Shipping height | 3525 mm |
| Boom | 6200 mm |
| Digging reach | 10653 mm |
| Digging depth | 7300 mm |
| Cutting height | 10300 mm |
Key Features
- Operating weight 31800 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Engine power 194 kW @ 2200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 1.6 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 933E is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 933E Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
