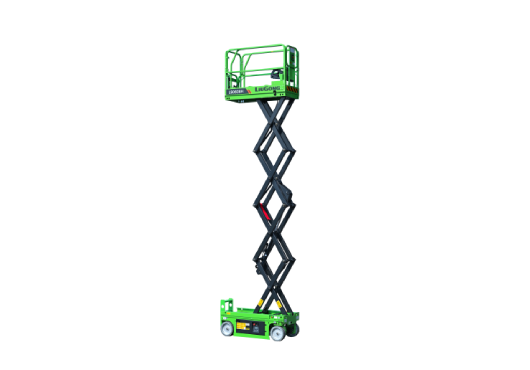

LS0808H Aerial Work Platform
The LiuGong LS0808H aerial work platforms delivers max.working height of 10 m; rated load on working platform of 230 kg; overall length/width of 2.48*0.81 m. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LS0808H Aerial Work Platforms
Max.Working Height
10 m
Rated Load on Working Platform
230 kg
Overall Length/Width
2.48*0.81 m
Key Features
- Security And IntelligenceIntelligent control system, real-time monitoring of equipment status, Multiple security protection to ensure personnel safety, Intelligent charging system to extend battery life.
- Easy To ControlDrivable at full height to improve working effificiency, The proportion drops and the descent moves smoothly, Forklift pocket, easy to load, unload and transport.
- Maintenance FriendlySelf-lubricating sleeve, Swing-out tray on both sides, easy maintenance, Fault code indication to facilitate troubleshooting.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Max.Work Height | 10 m | 32.81 ft. |
| Max.Platform Height | 8 m | 26.25 ft. |
| Min.Platform Height | 1.22 m | 4.00 ft. |
| Platform Size(L×W) | 2.28×0.81 m | 7.5*2.66 ft. |
| Overall Length | 2.49 m | 8.17 ft. |
| Overall Width | 0.844 m | 2.77 ft. |
| Overall Height (Rails Down) | 1.8 m | 5.91 ft. |
| Max.Gradeability | 25 % | 25 % |
| Lift Motor | 24 V / 3.3 kW | 24 V / 3.3 kW |
| Rated Load on Working Platform | 230 kg | 507.06 lbs |
| Battery | 24 V / 200 Ah | 24 V / 200 Ah |
| Charger | 24 V / 30 A | 24 V / 30 A |
| Total Weight | 2200 kg | 4850.17 lbs |
Applications
The LS0808H is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
