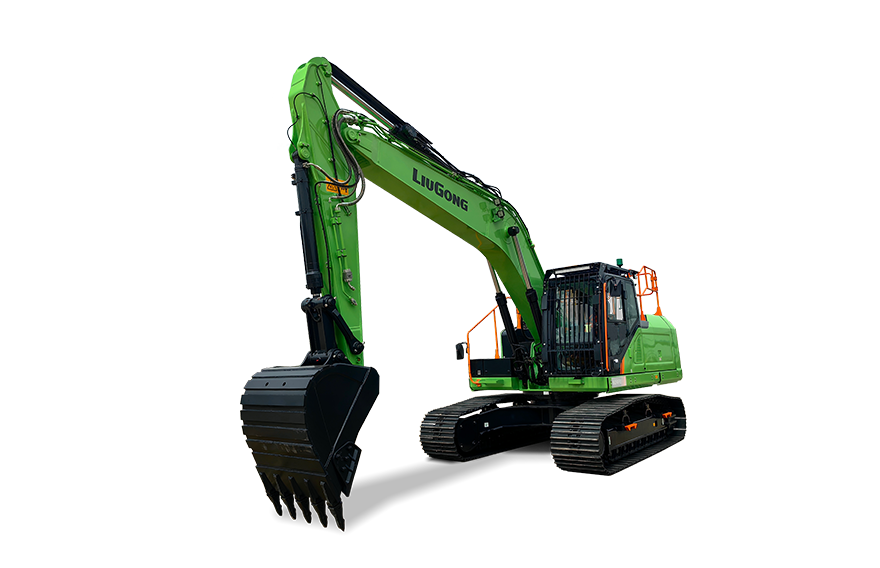

924FE Excavator
The LiuGong 924FE crawler excavator offers operating weight of 25,300 kg; rated power of 115 kW; standard bucket capacity of 1.0 m³. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
924FE Excavators
Operating Weight
25,300 kg
Rated Power
115 kW
Standard Bucket Capacity
1.0 m³
Specifications
| Operating Weight | 25,300 kg |
|---|---|
| Rated Power | 115 kW |
| Arm Digging Force | 105 kN |
| Drawbar Pull | 220 kN |
| Max. Dumping Height | 7,000 mm |
| Rated Storage Capacity | 423/528 kWh |
| Standard Bucket Capacity | 1.0 m³ |
| Bucket Digging Force | 153 kN |
| Max. Digging Reach | 9,870 mm |
| Shipping Dimension L*W*H | 9,910*3,050*3,050 mm |
| ※For reference only. | 924FE-Tilting cab |
| Operating Weight | 26,500 kg |
| Rated motor power | 115 kW |
| Arm Digging Force | 105 kN |
| Drawbar Pull | 220 kN |
| Max. Dumping Height | 7,020 mm |
| Max. Cab Lifting Height | 2.5 m |
| Rated Storage Capacity | 423 kWh |
| Standard Bucket Capacity | 1.0 m³ |
| Bucket Digging Force | 153 kN |
| Max. Digging Reach | 9,890 mm |
| Shipping Dimension L*W*H | 9,910*2,990*3,450 mm |
| ※For reference only. | 924FE-High raise cab |
| Operating Weight | 28,100 kg |
| Rated motor power | 115 kW |
| Arm Digging Force | 105 kN |
| Drawbar Pull | 220 kN |
| Max. Dumping Height | 7,020 mm |
| Rated Storage Capacity | 423 kWh |
| Standard Bucket Capacity | 1.0 m³ |
| Bucket Digging Force | 153 kN |
| Max. Digging Reach | 9,890 mm |
| Shipping Dimension L*W*H | 9,910*2,990*3,450 mm |
Key Features
- Operating weight 25,300 kgHeavy class — excavation, quarry and large-scale earthmoving duty.
- Bucket capacity 1.0 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 924FE is suited to Heavy excavation, quarrying and large-scale mass earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 924FE Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
