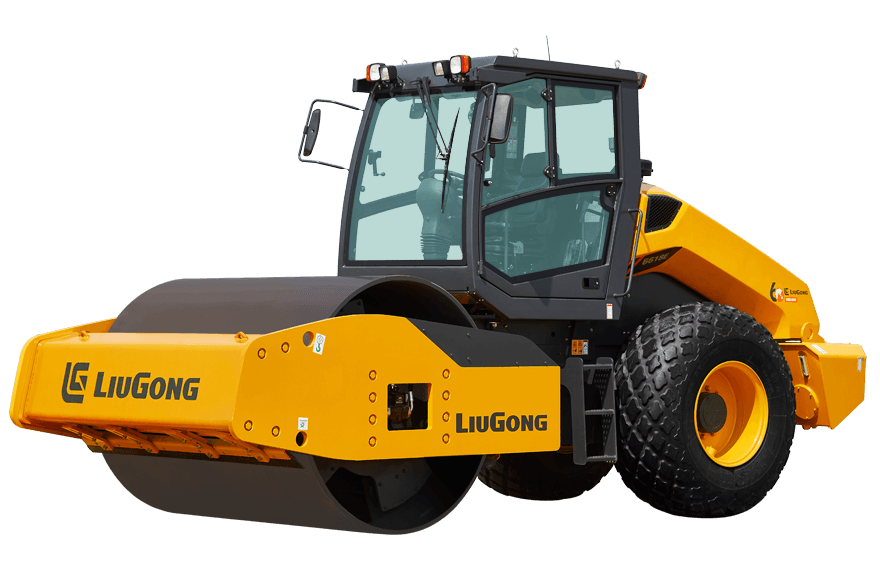

6618E Roller
The LiuGong 6618E compaction roller offers rated power of 140 kW (188 hp / 190 ps) @ 2,200 rpm. High-performance soil, asphalt and landfill compaction; strong centrifugal force, smooth vibration and low maintenance costs. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
6618E Rollers & Compaction
Operating Mass
18,300 kg
Rated Power
140 kW (188 hp / 190 ps) @ 2,200 rpm
Mass On Drive Axle
7,400 kg
Specifications
| Operating Mass | 18,300 kg |
|---|---|
| Mass On Drive Axle | 7,400 kg |
| Model | Shangchai SC7H190.2G2 |
| Rated Power | 140 kW (188 hp / 190 ps) @ 2,200 rpm |
| Nominal Amplitude | 2.0/1.3 mm |
| Drum Diameter | 1,600 mm |
| 1,600 mm | 2nd Maximum Speed, fwd |
| 2nd Maximum Speed, fwd | 5 km/h |
| 5 km/h | 4th Maximum Speed, fwd |
| 4th Maximum Speed, fwd | 10 km/h |
| Min. GroundClearance | 440 mm |
| Min. Outside Turning Radius | 7,000 mm |
| Overall Width | 2,300 mm |
| Mass On Vibrating Drum | 10,900 kg |
| Front Drum Static Linear Load | 522 N/cm |
| Vibration Frequency | 28/32 Hz |
| Centrifugal Force | 380/320 kN |
| 380/320 kN | 1st Maximum Speed, fwd |
| 1st Maximum Speed, fwd | 3.8 km/h |
| 3.8 km/h | 3rd Maximum Speed, fwd |
| 3rd Maximum Speed, fwd | 5.8 km/h |
| Theoretical Gradeability | 52 |
| Wheelbase | 3250 mm |
| Overall Length | 6,475 mm |
| Overall Height | 3,150 mm |
Key Features
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 6618E is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for 6618E Roller
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
