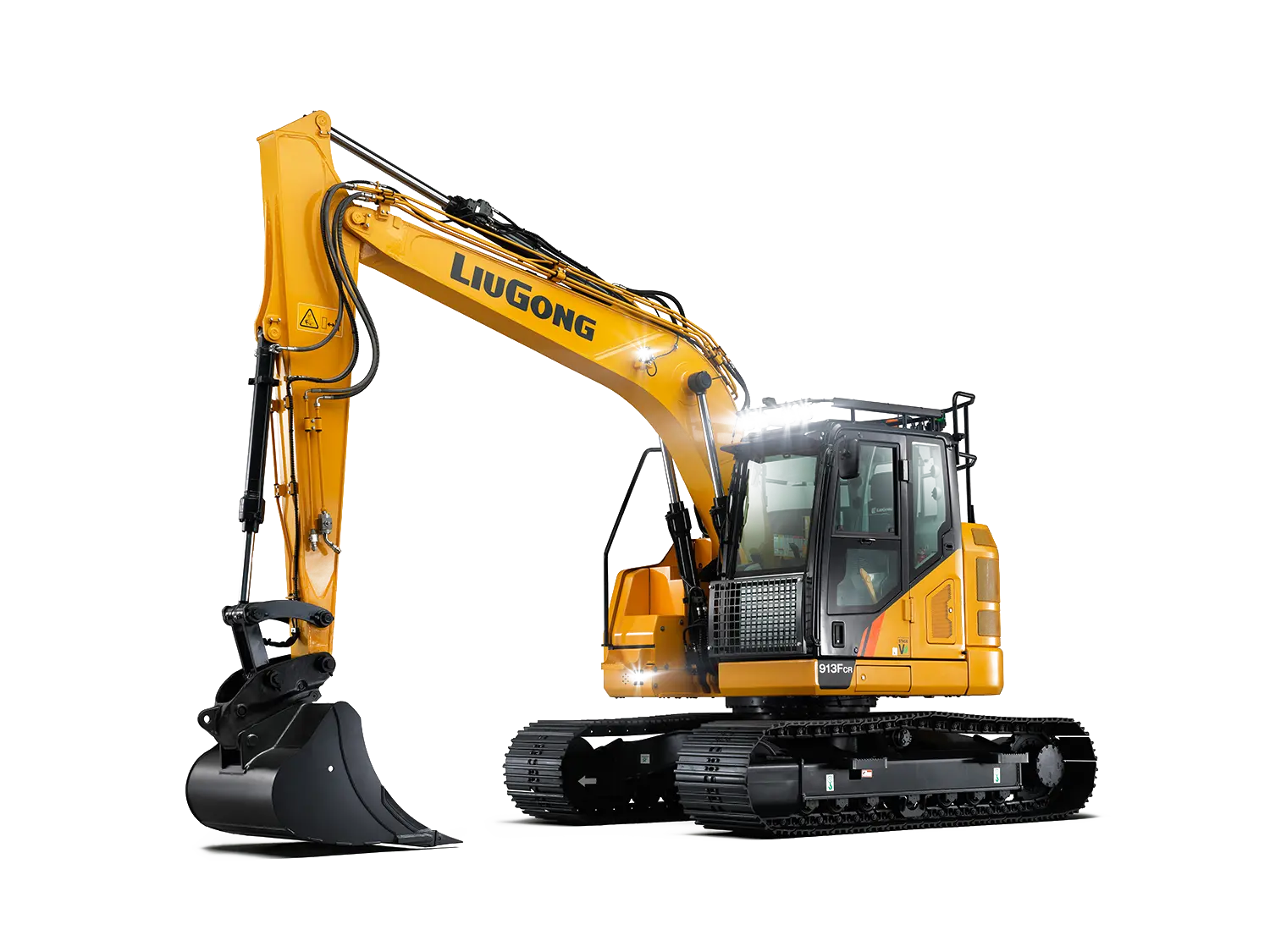

913FCR Excavator
The LiuGong 913FCR crawler excavator offers operating weight of 14900-16400 kg; std. bucket capacity of 0.5 m³; engine power of 75 kW @ 2200 rpm. Ideal for construction, demolition, quarrying and earthmoving; advanced hydraulics, ROPS/FOPS cab and factory-direct support. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
913FCR Excavators
Operating weight
14900-16400 kg
Std. Bucket capacity
0.5 m³
Engine power
75 kW @ 2200 rpm
Specifications
| Operating weight | 14900-16400 kg |
|---|---|
| Std. Bucket capacity | 0.5 m³ |
| Travel speed(Low) | 2.9 km/h |
| Arm breakout force | 70 kN |
| Shipping length | 7295 mm |
| Shipping height | 3035 mm |
| Boom | 4600 mm |
| Digging reach | 8315 mm |
| Digging depth | 5490 mm |
| Cutting height | 8960 mm |
| Minimum front swing radius | 2325 mm |
| Dozer-down | 575 mm |
| Emission | Stage V / Tier4F |
| System pressure | 34.3 MPa |
| Engine power | 75 kW @ 2200 rpm |
| Travel speed(High) | 4.9 km/h |
| Maximum swing speed | 11.3 rpm |
| Bucket breakout force | 96.9 kN |
| Shipping width | 2570 mm |
| Track shoe width (std) | 500 mm |
| Arm | 2500 mm |
| Digging reach on ground | 8190 mm |
| Vertical wall digging depth | 5030 mm |
| Dumping height | 6530 mm |
| Dozer-up | 500 mm |
| Engine model | Cummins F3.8 |
| System maximum flow | 2x117 L/min |
| ※For reference only. | 913FCR－Stage III |
| Operating weight | 14,600 kg |
| Std. Bucket capacity | 0.5 m³ |
| Maximum swing speed | 11.3 rpm |
| Bucket breakout force | 96.9 kN |
| Shipping width | 2570 mm |
| Track shoe width (std) | 500 mm |
| Arm length | 2500 mm |
| Digging reach on ground | 8,190 mm |
| Vertical wall digging depth | 5,030 mm |
| Dumping height | 6,530 mm |
Key Features
- Operating weight 14900-16400 kgMainstream class — building foundations, roadworks and general earthmoving.
- Engine power 75 kW @ 2200 rpmPower matched to daily production and fuel-efficient operation.
- Bucket capacity 0.5 m³Sized for efficient loading cycles and production targets.
- ROPS/FOPS cabOperator protection and comfort on every shift.
- Advanced hydraulicsSmooth, precise control for demanding work cycles.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 913FCR is suited to Building foundations, roadworks, drainage and general earthmoving. Tell us your application and we will recommend the right configuration.
Get a Quote for 913FCR Excavator
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
