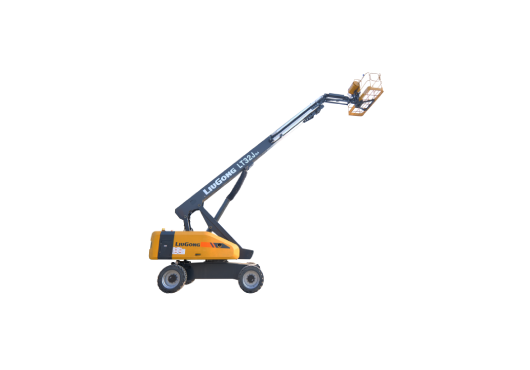

LT32JG4 Aerial Work Platform
Safe And Reliability ：Double redundancy design of limit switch and long angle sensor,precise control of each working range;High precision working platform weighing sensor, continuous monitoring of platform load;Virtual wall protection can be confifigured to effectively protect the operator 's safety. High-Efficient And Comfortable：300kg unrestricted load and 454kg restricted area load in the whole working range;Closed hydraulic drive, variable main pump with electric proportional control, driving more stable;The design of automatic balance swing bridge is suitable for complex working conditions；Fully hydraulic four-wheel drive system for faster response；Multi-functional combined Hall full-scale effect joystick for more effificient operation. Compact Structure：The maximum working height is 30 m, the maximum working outreach is 22.9m, and the working range is wide；The Jib can be rotated vertically at 135°, and the working range covers 60°downward to 75° upward;Four-bar linkage design, the structure is more compact. Maintenance Friendly：Real-time monitoring and transmission of vehicle information；Historical fault record query;Maintenance tips;Working condition information record;Self-lubricating bearing;Screw-out engine tray.
LT32JG4 Aerial Work Platforms
Key Features
- Safe And ReliabilityDouble redundancy design of limit switch and long angle sensor,precise control of each working range, High precision working platform weighing sensor,continuous monitoring of platform load, Virtual wall protection can be confifigured to effectively protect the operator 's safety.
- High-Efficient And Comfortable300kg unrestricted load and 454kg restricted area load in the whole working range, Closed hydraulic drive, variable main pump with electric proportional control, driving more stable, The design of automatic balance swing bridge is suitable for complex working conditions, Fully hydraulic four-wheel drive system for faster response, Multi-functional combined Hall full-scale effect joystick for more effificient operation.
- Compact StructureThe maximum working height is 30 m, the maximum working outreach is 22.9m, and the working range is wide, The Jib can be rotated vertically at 135°, , and the working range covers 60°, downward to 75°, upward, Four-bar linkage design, the structure is more compact.
- Maintenance FriendlyReal-time monitoring and transmission of vehicle information, Historical fault record query, Maintenance tips, Working condition information record, Self-lubricating bearing, Screw-out engine tray.
Specifications
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Max.Working Height | 34.2 m | 112.20 ft. |
| Max.Platform Height | 32.2 m | 105.64 ft. |
| Max.Operating Range | 20.9 m | 68.57 ft. |
| Overall Length(Stowed) | 12.8 m | 41.99 ft. |
| Overall Width(Stowed) | 2.49 m | 8.16 ft. |
| Overall Height(Stowed) | 2.9 m | 9.51 ft. |
| Overall Length(Transport) | 11.7 m | 38.39 ft. |
| Overall Width(Transport) | 2.25 m | 7.38 ft. |
| Overall Height(Transport) | 2.66 m | 8.73 ft. |
| Turntable Tailswing(Stowed) | 1.49 m | 4.89 ft. |
| Platform Size(L×W×H) | 2.4×0.91×1.1 m | 7.8×2.97×3.58 ft. |
| Tyres | 18-625 | 18-625 |
| Platform Load(Unrestricted/Restricted) | 300 kg /454 kg | 661 lb / 1001 lb |
| Gradeability | 45 % | 45 % |
| Max.Working Slope | X-5°/Y-5° | X-5°/Y-5° |
| Turret Rotation | 360°(Continuous) | 360°(Continuous) |
| Drive Steering Type | 4WD×2WS | 4WD×2WS |
| Diesel Engine | YCF3075-T480/55.8kW | YCF3075-T480/55.8kW |
| Diesel Tank | 150 L | 39 gal |
| Hydraulic Oil Tank | 170 L | 44 gal |
Applications
The LT32JG4 is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
