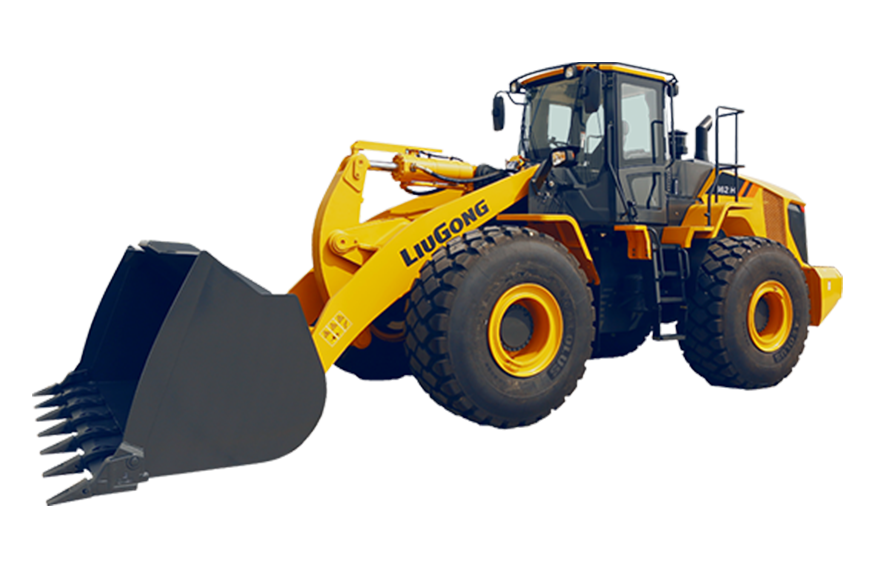

862H Wheel Loader
The LiuGong 862H wheel loader built for loading, stockpiling, quarry and material-handling work; strong breakout force, wet disc brakes and low fuel consumption. ISO-certified manufacturer, factory-direct pricing and dependable after-sales for global buyers.
862H Wheel Loaders
Operating Weight
20,400 kg
Operating Weight
20,900 kg
Rated Power
179 kW (240 hp / 243 ps) @ 2,200 rpm
Specifications
| Operating Weight | 20,400 kg |
|---|---|
| Rated Power | 179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Raise | 5.2 s |
| Tipping Load-Full Turn | 14,200 kg |
| Dump Clearance, Full Height Discharge | 3,253 mm |
| Model | Cummins 6LTAA8.9 |
| Width over Tires | 2,880 mm |
| Turning Radius, Outside of Tire | 6,650 mm |
| GP Bucket | 3.5-5.2 m³ |
| Rock Bucket | 3.3 m³ , 4.0 m³ |
| Standard Bucket Capacity | 4.5 m³ |
| Total Hydraulic Cycle Time | 9.3 s |
| Maximum Travel Speed, fwd | 35 km/h |
| Bucket Breakout Force | 180 kN |
| Dump Reach at Full Height Discharge | 1,122 mm |
| Emission Rating | Tier 2 / Stage II |
| Length with Bucket Down | 8,740 mm |
| Cab Height | 3,500 mm |
| Bucket Capacities | 3.0-6.0 m³ |
| Light Material Bucket | 5.8 m³, 7.2 m³ |
| Slag Bucket | 3.5 m³ |
| ※For reference only. | 862H (Tier 3 / Stage III) |
| Operating Weight | 20,900 kg |
| Rated Power | 180 kW (241 hp / 245 ps) @ 2,200 rpm |
| Raise | 5.2 s |
| Tipping Load-Full Turn | 14,500 kg |
| Dump Clearance, Full Height Discharge | 3,225 mm |
| Model | Cummins QSL9.3 |
| Width over Tires | 2,980 mm |
| Turning Radius, Outside of Tire | 6,650 mm |
| GP Bucket | 3.5-5.2 m³ |
| Rock Bucket | 3.3 m³ , 4.0 m³ |
Key Features
- Operating weight 20,400 kgStandard class — construction sites, aggregates and loading work.
- Bucket capacity 4.5 m³Sized for efficient loading cycles and production targets.
- Tipping load 14,200 kgStable loading performance and payload confidence.
- Factory-direct supportGlobal parts, warranty and after-sales network from the manufacturer.
Applications
The 862H is suited to Construction sites, aggregates yards and general loading. Tell us your material and application and we will recommend the right configuration.
Get a Quote for 862H Wheel Loader
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
