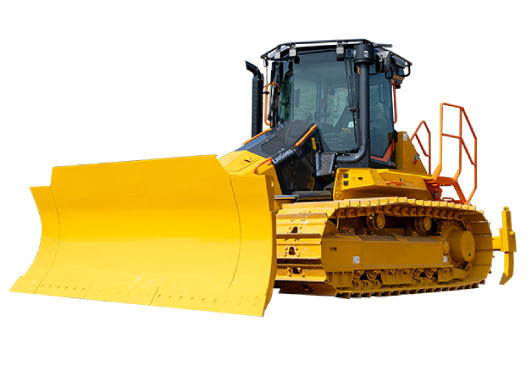

LD26D Track Dozer
The LiuGong LD26D dozers delivers operating weight of 26,000 kg; engine power of 203 kW; blade capacity of 5.2 m³. Engineered for reliable heavy-duty performance with advanced hydraulics, operator comfort and factory-direct support for global buyers.
LD26D Dozers
Operating weight
26,000 kg
Engine power
203 kW
Blade capacity
5.2 m³
Key Features
- Engineered for heavy-duty work, LD26D equips with hard-wearing blade, tough mainframe,durable undercarriage and modular transmission parts.It has a longer service life and less downtime.
Specifications
| Machine Weight | 26,000 kg |
|---|---|
| Rated Power | 203 kW |
| Blade Capacity | 5.2 m³ |
| Blade Lift Height | 1,210 mm |
| Blade Digging Depth | 540 mm |
| Ground Pressure | 37 kPa |
| Engine Displacement | 8.9 L |
| Track Shoe Width | 910 mm |
| Number of Rollers (Per Side) | 8 |
| Number of Idlers (Per Side) | 2 |
| Number of Track Shoes (Per Side) | 45 |
| Maximum Travel Speed, fwd | 11.8 km/h |
| Maximum Travel Speed, rev | 14.3 km/h |
Applications
The LD26D is engineered for reliable operation across its class of applications. Contact us to match the machine to your project requirements.
Get a Quote for LD26D Track Dozer
Tell us your application and required attachments — we respond with detailed specifications, pricing and delivery options.
