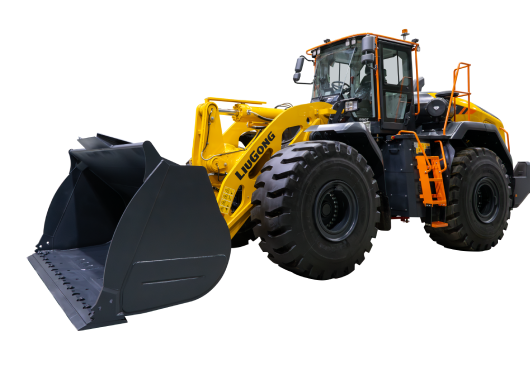

890T Wheel Loader
890T (Stage V)
890T Wheel Loaders
Operating Weights
31,560-31,750 kg
Rated Load Capacity
9,500 kg
Rated Power
261/262 kW
Key Features
- Z-bar linkage with large transmission ratio uses high pressure hydraulics for increased breakout force.
- Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.
- Improved ergonomics for cab design with all control switches in easy reach of the operator.
Specifications
890T (EU Stage V)
| Parameter | Metric | Imperial / U.S. |
|---|---|---|
| Operating Weight | 31,750 kg | 69,997 lb |
| Standard Bucket Capacity | 5.4 m³ | 7.1 yd³ |
| Gross Power | 287 kW (385 hp / 390 ps) @ 1,800 rpm | 287 kW ( 385 hp / 390 ps ) @ 1,800 rpm |
| Net Power | 273 kW (366 hp / 371 ps) @ 1,800 rpm | 273 kW ( 366 hp / 371 ps ) @ 1,800 rpm |
| Total Hydraulic cycle time | 11 s | 11 s |
| Raise | 6.0 s | 6 s |
| Maximum Travel Speed, fwd | 41.9 km/h | 26 mph |
| Tipping Load-Full Turn | 21,150 kg | 46,628 lb |
| Bucket Breakout Force | 270 kN | 60,698 lbf |
| Dump Clearance, Full Height Discharge | 3,332 mm | 10‘11’‘ |
| Dump Reach at Full Height Discharge | 1,433 mm | 4‘8’‘ |
| Model | Cummins X12 | Cummins X12 |
| Emission Rating | EU Stage V | EU Stage V |
| Aspiration | Turbocharged & Air-to-air intercooled | Turbocharged & Air-to-air intercooled |
| Length with Bucket Down | 9,637 mm | 31‘7’‘ |
| Width over Tires | 3,170 mm | 10‘5’‘ |
| Cab Height | 3,790 mm | 12‘5’‘ |
| Turning Radius, Outside of Tire | 6,958 mm | 22‘10’‘ |
| Bucket capacity | 4.0-9.0 m³ | 5.2 - 11.8 yd³ |
| GP Bucket | 5.0-6.2 m³ | 7.1 yd³ |
| Light Material Bucket | 9.0 m³ | 11.8 yd³ |
| Rock Bucket | 5.2 m³ | 6.8 yd³ |
890T (Tier 3/Stage III)
| Operating Weight | 31,560 kg |
|---|---|
| Standard Bucket Capacity | 5.4 m³ |
| Rated Power | 262 kW (351 hp / 356 ps) @ 2,100 rpm |
| Total Hydraulic Cycle Time | 11 s |
| Raise | 6.0 s |
| Maximum Travel Speed, fwd | 37 km/h |
| Tipping Load - Full Turn | 21,350 kg |
| Bucket Breakout Force | 270 kN |
| Dump Clearance at Full Height Discharge | 3,332 mm |
| Dump Reach at Full Height Discharge | 1,433 mm |
| Model | Cummins X12 |
| Emission Rating | Tier 3 / Stage III |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Length with Bucket Down | 9,637 mm |
| Width over Tires | 3,170 mm |
| Cab Height | 3,790 mm |
| Turning Radius, Outside of Tire | 6,958 mm |
| Bucket Capacities | 4.0-9.0 m³ |
| GP Bucket | 5.0-6.2 m³ |
| Light Material Bucket | 9.0 m³ |
| Rock Bucket | 5.2 m³ |
Applications
The 890T is suited to Mining and high-volume loading applications. Tell us your material and application and we will recommend the right configuration.
